INTEGRAL Galactic Bulge Monitoring Revolution 0289: Observation start 2005-02-24 = MJD 53425
Total Observation GTI = 12315 seconds
ISGRI

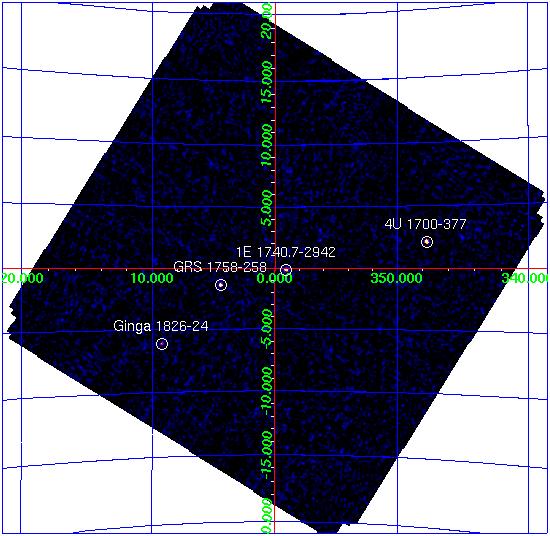

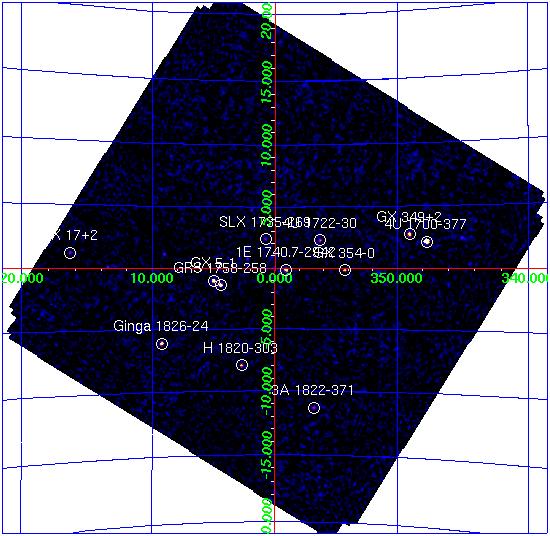

ISGRI significance mosaic images. Left: ISGRI 18-40 keV. Right: 40-100 keVSources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of
OSA7
, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 206 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.NOTES: The table is constructed from the
isgri_mosa_res.fits
file - fluxes in the mosaic output are known to be systematically ~10% lower than in the ScW light-curves (see known issues). The systematic noise increases towards the edge of the field of view andNEW
sources < 6σ towards the border of the image may be spurious.
ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)Source Name RA dec +/- l b A(cps) +/- sig B(cps) +/- sig ==================== ======== ======= === ======== ======== ====== ===== ===== ====== ===== ===== 4U 1700-377 255.989 -37.848 0.4 347.753 +2.169 55.8 0.56 99.7 14.8 0.43 34.2 GRS 1758-258 270.296 -25.744 0.8 4.504 -1.357 12.0 0.30 39.5 8.3 0.25 33.5 1E 1740.7-2942 265.977 -29.746 0.9 359.115 -0.105 9.3 0.24 38.1 7.0 0.21 34.1 GX 5-1 270.278 -25.087 0.9 5.068 -1.018 11.1 0.31 35.5 0.0 0.00 0.0 Ginga 1826-24 277.364 -23.793 1.2 9.275 -6.083 13.7 0.53 25.6 5.4 0.42 13.0 GX 349+2 256.416 -36.417 1.4 349.099 +2.765 10.7 0.50 21.3 0.0 0.00 0.0 GX 354-0 262.977 -33.827 1.5 354.303 -0.137 6.4 0.33 19.1 0.0 0.00 0.0 H 1820-303 275.908 -30.370 1.6 2.776 -7.909 7.4 0.41 17.9 0.0 0.00 0.0 4U 1722-30 261.893 -30.791 2.1 356.331 +2.301 3.8 0.30 12.6 1.8 0.24 7.3 3A 1822-371 276.440 -37.121 2.4 356.834 -11.294 5.8 0.52 11.2 0.0 0.00 0.0 SLX 1735-269 264.557 -26.968 2.6 0.811 +2.425 2.6 0.26 10.1 1.4 0.22 6.4 GX 17+2 274.023 -14.068 2.6 16.412 +1.248 20.4 1.98 10.3 0.0 0.00 0.0 1A 1742-294 266.489 -29.479 2.8 359.575 -0.345 2.3 0.24 9.3 0.0 0.00 0.0 GX 13+1 273.649 -17.172 3.1 13.512 +0.085 6.1 0.73 8.4 0.0 0.00 0.0 GX 1+4 263.002 -24.739 3.3 1.939 +4.804 2.5 0.32 7.8 0.0 0.00 0.0 GX 9+1 270.376 -20.542 3.3 9.061 +1.154 2.9 0.38 7.7 0.0 0.00 0.0 GX 3+1 266.991 -26.567 3.5 2.294 +0.786 1.9 0.26 7.2 0.0 0.00 0.0 GRO J1655-40 253.487 -39.909 3.8 344.926 +2.424 6.8 1.02 6.7 4.5 0.73 6.2 IGR J17252-3616 261.344 -36.236 0.0 351.557 -0.359 2.1 0.00 5.7 0.0 0.00 0.0 3A 1728-169 262.937 -16.955 5.3 8.519 +9.039 3.0 0.65 4.6 0.0 0.00 0.0 OAO 1657-415 255.161 -41.642 4.2 344.361 +0.353 8.0 1.32 6.0 0.0 0.00 0.0 1E 1743.1-2843 266.554 -28.752 5.0 0.225 -0.016 1.2 0.24 5.0 0.0 0.00 0.0 SAX J1712.6-3739 258.146 -37.676 5.3 348.911 +0.905 2.5 0.53 4.7 0.0 0.00 0.0 4U 1705-32 257.203 -32.310 5.8 352.787 +4.701 1.5 0.36 4.2 0.0 0.00 0.0 SLX 1744-299_300 266.854 -30.034 5.9 359.265 -0.904 1.0 0.00 4.1 0.0 0.00 0.0 IGR J17475-2822 266.935 -28.388 6.3 0.710 -0.113 0.9 0.00 3.8 0.0 0.00 0.0 Oph Cluster 258.074 -23.281 5.7 0.625 +9.352 1.7 0.38 4.3 0.0 0.00 0.0JEM-X

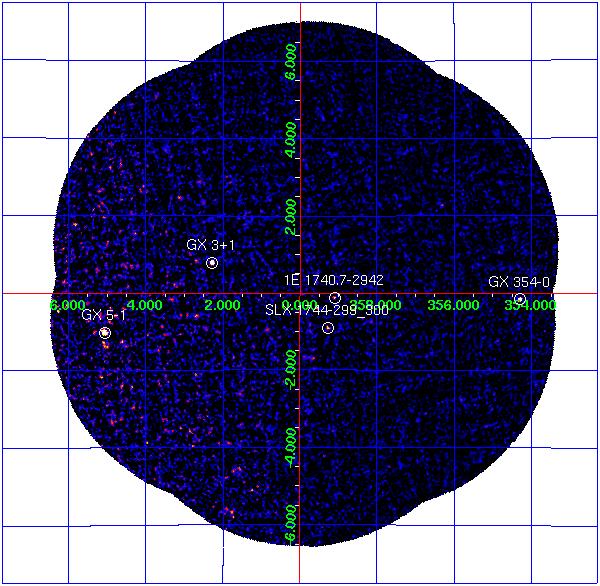

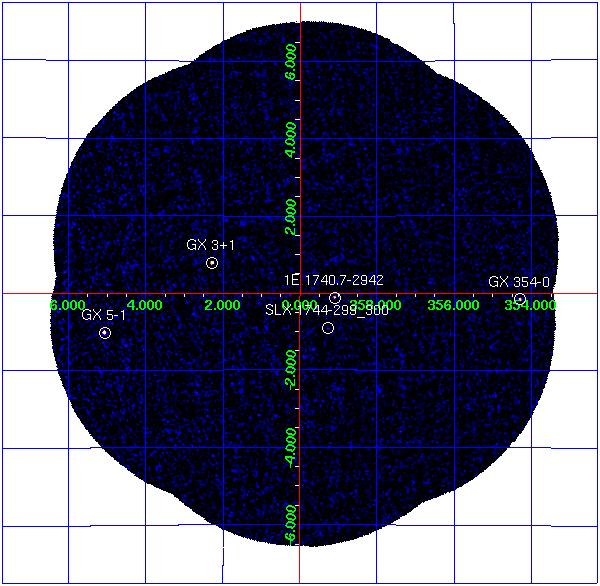

JEM-X significance mosaic images. Left: 3-10 keV. Right: 10-25 keV.Note: Sources labelled were detected with in the 3-10 keV image > 10σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with
mosaic_spec
, in two bands: A = 3-10 keV (1 Crab ~ 88 cps); B = 10-25 keV (1 Crab ~ 32 cps).NOTES: Fluxes for light curves are extracted from the images using
mosaic_spec
; The object marked as SLX 1744-299_300 is used to indicate two low-mass x-ray binaries separated by 2.7 arcminutes, SLX 1744-299 and SLX 1744-300; the position for SLX 1744-299 is used, although it can not be ruled out that SLX 1744-300 may dominate the emission some of the time.
JEM-X Detected Sources in 3-10 keV (A) and 10-25 keV (B).Source Name RA dec l b A(cps) +/- B(cps) +/- ==================== ======== ======== ======== ======== ====== ===== ====== ===== 1E 1740.7-2942 265.978 -29.745 359.116 -0.106 1.7 0.29 1.1 0.20 GX 354-0 262.989 -33.835 354.302 -0.150 25.0 1.49 5.5 0.91 GX 3+1 266.983 -26.564 2.294 +0.794 21.1 0.52 2.8 0.27 GX 5-1 270.284 -25.079 5.077 -1.019 110.6 2.23 13.4 0.98 SLX 1744-299_300 266.858 -29.999 359.297 -0.889 1.9 0.36 0.3 0.20
