INTEGRAL Galactic Bulge Monitoring Revolution 0295: Observation start 2005-03-15 = MJD 53444
Total Observation GTI = 13866 seconds
ISGRI

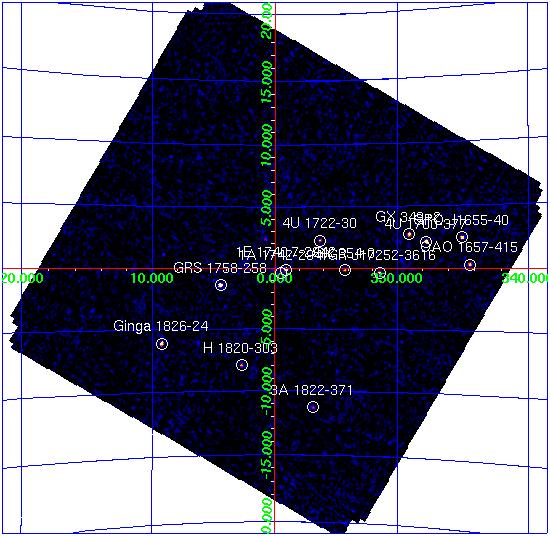

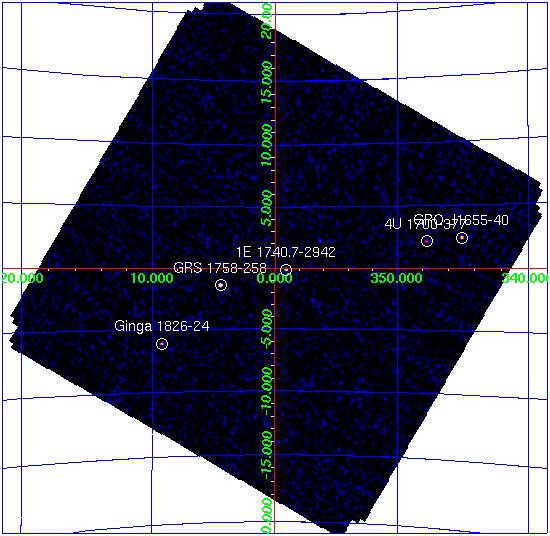

ISGRI significance mosaic images. Left: ISGRI 18-40 keV. Right: 40-100 keVSources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of
OSA7
, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 206 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.NOTES: The table is constructed from the
isgri_mosa_res.fits
file - fluxes in the mosaic output are known to be systematically ~10% lower than in the ScW light-curves (see known issues). The systematic noise increases towards the edge of the field of view andNEW
sources < 6σ towards the border of the image may be spurious.
ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)Source Name RA dec +/- l b A(cps) +/- sig B(cps) +/- sig ==================== ======== ======= === ======== ======== ====== ===== ===== ====== ===== ===== GRS 1758-258 270.307 -25.744 0.7 4.509 -1.365 11.9 0.26 46.6 8.6 0.21 41.6 Ginga 1826-24 277.362 -23.801 0.9 9.266 -6.085 16.3 0.45 36.2 5.8 0.35 16.5 1E 1740.7-2942 265.974 -29.739 0.9 359.119 -0.099 8.7 0.24 37.0 5.4 0.20 27.4 4U 1700-377 256.000 -37.842 1.0 347.762 +2.167 18.1 0.58 31.3 5.8 0.45 12.9 GX 349+2 256.435 -36.419 1.1 349.107 +2.751 13.0 0.46 28.3 0.0 0.00 0.0 GRO J1655-40 253.483 -39.849 1.2 344.971 +2.464 22.3 0.88 25.3 13.1 0.67 19.6 OAO 1657-415 255.207 -41.657 1.3 344.370 +0.316 25.5 1.11 23.1 6.8 0.84 8.1 IGR J17252-3616 261.303 -36.284 1.4 351.499 -0.359 7.5 0.35 21.3 0.0 0.00 0.0 4U 1722-30 261.894 -30.800 1.7 356.324 +2.295 4.4 0.27 16.1 1.7 0.22 7.4 GX 354-0 262.985 -33.826 1.7 354.307 -0.142 4.9 0.31 16.0 0.0 0.00 0.0 H 1820-303 275.898 -30.362 1.7 2.779 -7.898 5.6 0.35 16.0 0.0 0.00 0.0 1A 1742-294 266.473 -29.533 0.0 359.522 -0.362 3.2 0.00 13.4 0.0 0.00 0.0 3A 1822-371 276.451 -37.032 2.4 356.920 -11.264 5.6 0.50 11.0 0.0 0.00 0.0 SLX 1735-269 264.569 -26.989 2.9 0.800 +2.404 2.4 0.27 9.0 1.3 0.22 5.9 GX 3+1 266.990 -26.557 3.6 2.302 +0.792 1.8 0.26 7.1 0.0 0.00 0.0 GX 9+1 270.438 -20.507 3.4 9.121 +1.121 2.8 0.37 7.6 0.0 0.00 0.0 GX 5-1 270.253 -25.096 3.8 5.048 -1.002 1.8 0.27 6.6 0.0 0.00 0.0 3A 1728-169 262.942 -16.961 3.9 8.517 +9.032 3.9 0.60 6.5 0.0 0.00 0.0 1E 1742.9-2849 266.608 -28.863 5.2 0.155 -0.113 1.1 0.23 4.7 0.0 0.00 0.0 SLX 1744-299_300 266.933 -30.000 5.7 359.329 -0.945 1.1 0.27 4.3 0.0 0.00 0.0 1H 1746-370 267.524 -37.039 0.0 353.530 -4.978 1.5 0.00 4.1 0.0 0.00 0.0 GX 17+2 274.019 -13.983 5.9 16.486 +1.292 9.1 2.23 4.1 0.0 0.00 0.0 IGR J17488-3253 267.192 -32.886 5.9 356.969 -2.622 1.1 0.27 4.1 1.2 0.23 5.3 IGR J17473-2721 266.780 -27.397 6.1 1.487 +0.518 1.1 0.28 4.0 0.0 0.00 0.0 GX 1+4 262.957 -24.712 6.0 1.940 +4.853 1.2 0.28 4.1 0.0 0.00 0.0JEM-X

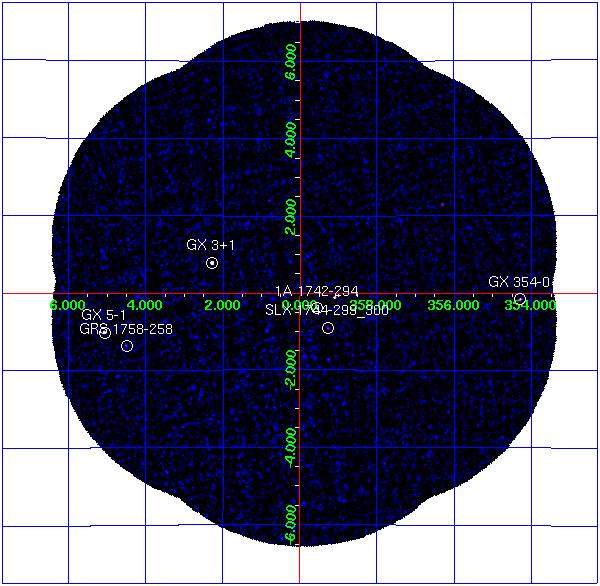

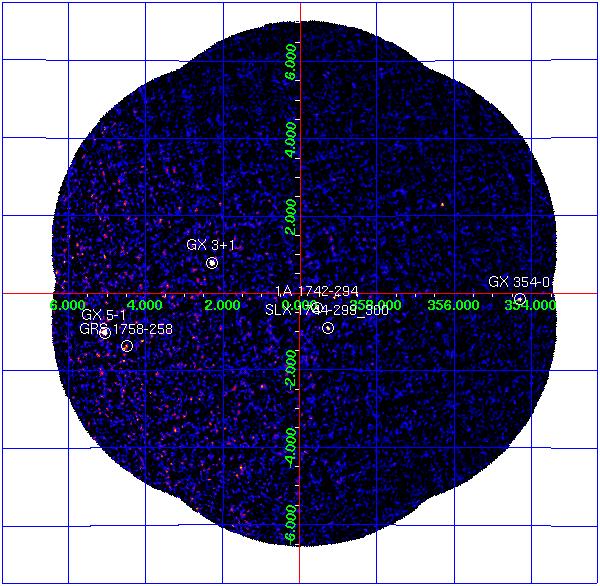

JEM-X significance mosaic images. Left: 3-10 keV. Right: 10-25 keV.Note: Sources labelled were detected with in the 3-10 keV image > 10σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with
mosaic_spec
, in two bands: A = 3-10 keV (1 Crab ~ 88 cps); B = 10-25 keV (1 Crab ~ 32 cps).NOTES: Fluxes for light curves are extracted from the images using
mosaic_spec
; The object marked as SLX 1744-299_300 is used to indicate two low-mass x-ray binaries separated by 2.7 arcminutes, SLX 1744-299 and SLX 1744-300; the position for SLX 1744-299 is used, although it can not be ruled out that SLX 1744-300 may dominate the emission some of the time.
JEM-X Detected Sources in 3-10 keV (A) and 10-25 keV (B).Source Name RA dec l b A(cps) +/- B(cps) +/- ==================== ======== ======== ======== ======== ====== ===== ====== ===== GX 354-0 262.989 -33.835 354.302 -0.150 16.4 1.35 4.6 0.95 1A 1742-294 266.523 -29.515 359.559 -0.389 1.7 0.29 0.8 0.18 GRS 1758-258 270.303 -25.741 4.511 -1.361 10.3 1.75 2.3 0.98 GX 3+1 266.983 -26.564 2.294 +0.794 26.4 0.51 3.9 0.27 GX 5-1 270.284 -25.079 5.077 -1.019 82.8 2.07 6.2 0.86 SLX 1744-299_300 266.858 -29.999 359.297 -0.889 2.4 0.33 0.6 0.20
