INTEGRAL Galactic Bulge Monitoring

Revolution 0297: Observation start 2005-03-19 = MJD 53448

Total Observation GTI = 10364 seconds


ISGRI

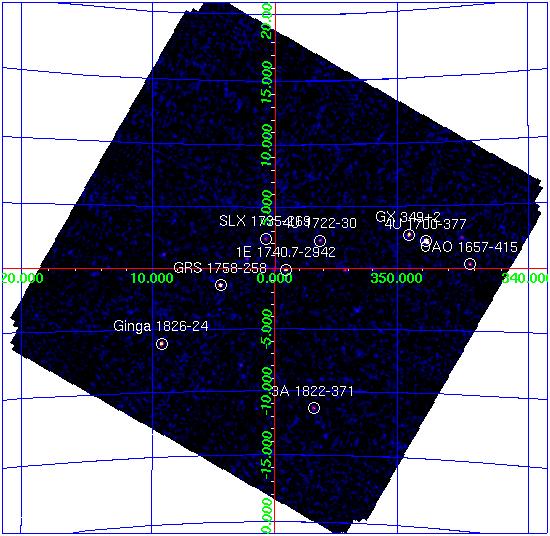

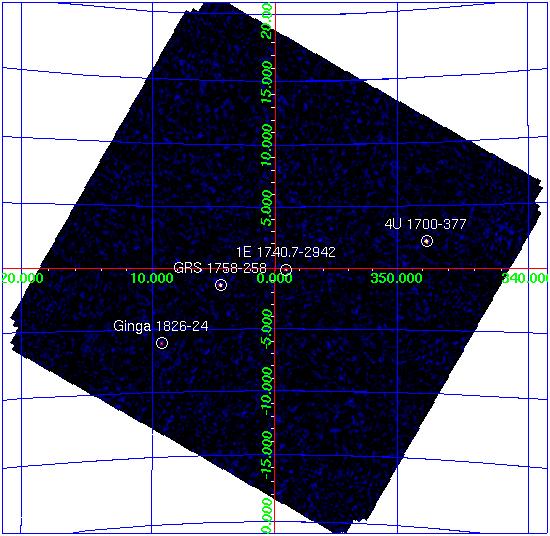

ISGRI significance mosaic images. Left: ISGRI 18-40 keV. Right: 40-100 keV

Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA7, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 206 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.

NOTES: The table is constructed from the isgri_mosa_res.fits file - fluxes in the mosaic output are known to be systematically ~10% lower than in the ScW light-curves (see known issues). The systematic noise increases towards the edge of the field of view and NEW sources < 6σ towards the border of the image may be spurious.


ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
4U 1700-377           255.991  -37.837 0.5  347.762   +2.175   54.1  0.65  83.8   16.7  0.50  33.5
GRS 1758-258          270.309  -25.746 0.8    4.509   -1.368   12.9  0.32  40.3    8.4  0.26  32.0
Ginga 1826-24         277.368  -23.796 1.0    9.274   -6.088   17.2  0.55  31.2    6.1  0.43  14.2
1E 1740.7-2942        265.984  -29.742 1.0  359.121   -0.108    9.6  0.30  32.6    5.6  0.25  22.2
GX 349+2              256.460  -36.411 1.2  349.125   +2.740   12.6  0.52  24.1    0.0  0.00   0.0
OAO 1657-415          255.185  -41.653 1.8  344.363   +0.332   21.8  1.43  15.2    4.9  1.05   4.7
3A 1822-371           276.479  -37.125 2.1  356.844  -11.324    8.0  0.61  13.0    0.0  0.00   0.0
4U 1722-30            261.882  -30.815 2.2  356.306   +2.296    3.9  0.31  12.5    1.4  0.26   5.6
SLX 1735-269          264.526  -26.982 2.4    0.785   +2.441    3.3  0.29  11.1    1.4  0.25   5.5
GX 354-0              262.950  -33.821 2.7  354.296   -0.115    3.1  0.32   9.8    0.0  0.00   0.0
GRO J1655-40          253.502  -39.834 2.8  344.992   +2.463   10.4  1.11   9.3    3.4  0.83   4.1
GX 3+1                266.998  -26.534 2.9    2.326   +0.797    2.5  0.28   9.0    0.0  0.00   0.0
GX 9+1                270.430  -20.518 3.1    9.108   +1.122    3.7  0.43   8.4    0.0  0.00   0.0
H 1820-303            275.919  -30.309 3.4    2.835   -7.890    3.4  0.44   7.6    0.0  0.00   0.0
SLX 1744-299_300      266.860  -30.052 3.6  359.252   -0.918    2.3  0.33   7.1    0.0  0.00   0.0
1E 1742.9-2849        266.515  -28.875 3.7    0.103   -0.050    1.9  0.27   7.0    0.0  0.00   0.0
XTE J1743-363         265.706  -36.424 3.6  353.306   -3.413    2.6  0.36   7.1    1.2  0.00   3.9
GX 5-1                270.308  -25.004 4.9    5.153   -1.000    1.7  0.34   5.1    0.0  0.00   0.0
XB 1832-330           278.948  -32.987 4.1    1.541  -11.381    3.6  0.59   6.1    0.0  0.00   0.0
GRS 1734-292          264.389  -29.156 4.4  358.883   +1.380    1.6  0.28   5.6    0.0  0.00   0.0
GX 17+2               273.988  -14.060 4.5   16.403   +1.282   11.1  2.01   5.5    0.0  0.00   0.0
AX J1749.1-2733       267.278  -27.554 5.0    1.580   +0.058    1.6  0.32   4.9    0.0  0.00   0.0
GX 13+1               273.674  -17.179 4.7   13.517   +0.061    4.0  0.76   5.3    0.0  0.00   0.0
1H 1746-370           267.496  -37.051 6.5  353.509   -4.965    1.5  0.40   3.7    0.0  0.00   0.0
V2400 Oph             258.039  -24.306 5.5  359.757   +8.789    1.9  0.43   4.5    0.0  0.00   0.0
Oph Cluster           258.186  -23.419 6.3    0.570   +9.188    1.6  0.00   3.8    0.0  0.00   0.0
4U 1705-32            257.278  -32.335 5.9  352.804   +4.635    1.7  0.40   4.1    1.3  0.00   3.9

JEM-X

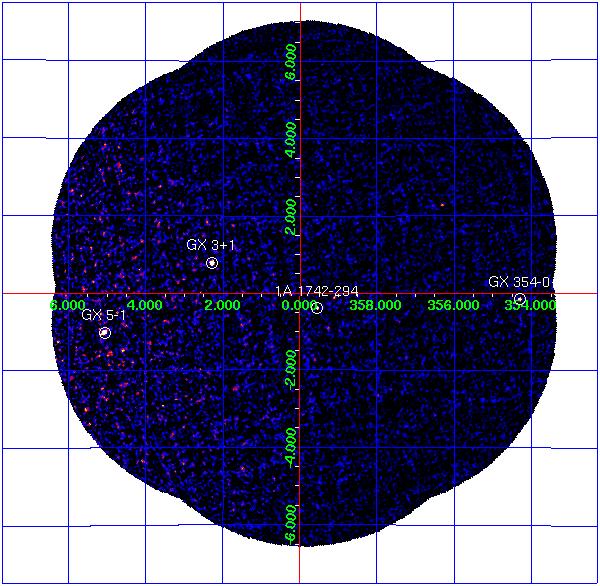

JEM-X significance mosaic images. Left: 3-10 keV. Right: 10-25 keV.

Note: Sources labelled were detected with in the 3-10 keV image > 10σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with mosaic_spec, in two bands: A = 3-10 keV (1 Crab ~ 88 cps); B = 10-25 keV (1 Crab ~ 32 cps).

NOTES: Fluxes for light curves are extracted from the images using mosaic_spec; The object marked as SLX 1744-299_300 is used to indicate two low-mass x-ray binaries separated by 2.7 arcminutes, SLX 1744-299 and SLX 1744-300; the position for SLX 1744-299 is used, although it can not be ruled out that SLX 1744-300 may dominate the emission some of the time.


JEM-X Detected Sources in 3-10 keV (A) and 10-25 keV (B).

Source Name             RA      dec       l        b     A(cps)  +/-  B(cps)  +/-
==================== ======== ======== ======== ======== ====== ===== ====== =====
GX 354-0              262.989  -33.835  354.302   -0.150   14.2  1.28    3.7  0.85
1A 1742-294           266.523  -29.515  359.559   -0.389    2.7  0.35    0.7  0.21
GX 3+1                266.983  -26.564    2.294   +0.794   25.8  0.59    3.8  0.30
GX 5-1                270.284  -25.079    5.077   -1.019   87.0  2.16    6.6  0.86
