INTEGRAL Galactic Bulge Monitoring Revolution 0298: Observation start 2005-03-22 = MJD 53451
Total Observation GTI = 12288 seconds
ISGRI

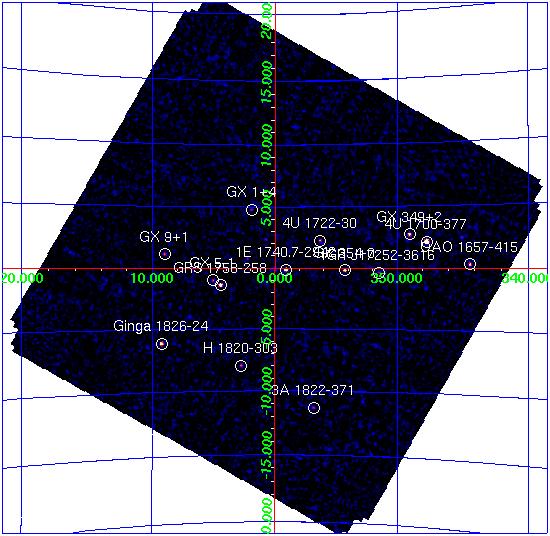

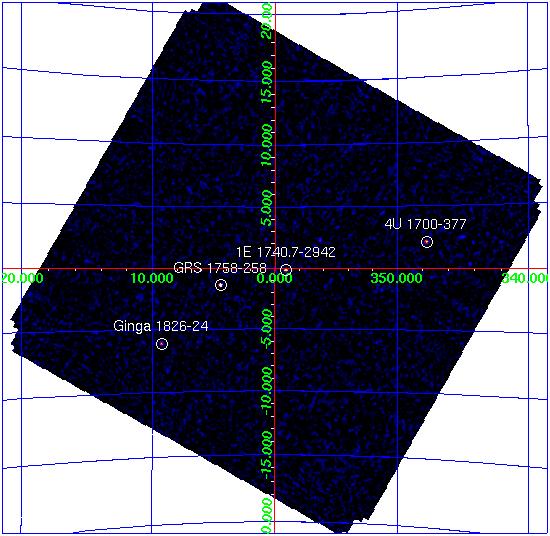

ISGRI significance mosaic images. Left: ISGRI 18-40 keV. Right: 40-100 keVSources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of
OSA7
, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 206 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.NOTES: The table is constructed from the
isgri_mosa_res.fits
file - fluxes in the mosaic output are known to be systematically ~10% lower than in the ScW light-curves (see known issues). The systematic noise increases towards the edge of the field of view andNEW
sources < 6σ towards the border of the image may be spurious.
ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)Source Name RA dec +/- l b A(cps) +/- sig B(cps) +/- sig ==================== ======== ======= === ======== ======== ====== ===== ===== ====== ===== ===== 4U 1700-377 255.988 -37.848 0.6 347.752 +2.171 36.0 0.58 61.9 8.2 0.45 18.1 GRS 1758-258 270.292 -25.747 0.8 4.501 -1.356 12.5 0.32 39.2 9.4 0.26 36.1 1E 1740.7-2942 265.979 -29.742 0.8 359.118 -0.105 10.7 0.28 38.6 6.2 0.24 26.2 Ginga 1826-24 277.372 -23.806 1.0 9.267 -6.095 15.4 0.52 29.6 6.1 0.41 14.7 GX 349+2 256.427 -36.425 1.4 349.098 +2.753 10.5 0.50 21.2 0.0 0.00 0.0 GX 354-0 262.993 -33.829 1.3 354.309 -0.150 7.1 0.31 23.3 0.0 0.00 0.0 OAO 1657-415 255.188 -41.646 1.4 344.370 +0.334 24.3 1.21 20.0 6.1 0.88 6.9 4U 1722-30 261.910 -30.830 2.1 356.307 +2.267 3.6 0.28 13.1 1.8 0.23 7.7 GX 9+1 270.349 -20.564 2.0 9.030 +1.165 4.8 0.36 13.3 0.0 0.00 0.0 GX 5-1 270.259 -25.034 0.0 5.105 -0.977 3.6 0.00 12.4 0.0 0.00 0.0 H 1820-303 275.936 -30.351 2.0 2.804 -7.922 5.5 0.39 13.9 0.0 0.00 0.0 3A 1822-371 276.440 -37.092 2.3 356.860 -11.282 6.0 0.52 11.5 0.0 0.00 0.0 GX 1+4 262.989 -24.706 2.4 1.961 +4.831 3.0 0.27 11.0 0.0 0.00 0.0 IGR J17252-3616 261.278 -36.260 2.5 351.507 -0.328 4.2 0.39 10.8 0.0 0.00 0.0 GX 3+1 266.974 -26.557 2.9 2.295 +0.804 2.3 0.26 8.9 0.0 0.00 0.0 GRO J1655-40 253.433 -39.838 4.0 344.955 +2.501 6.5 1.03 6.4 5.6 0.75 7.4 SLX 1735-269 264.588 -27.006 2.9 0.794 +2.381 2.3 0.26 8.9 1.5 0.22 6.6 1E 1742.8-2853 266.501 -28.910 4.1 0.066 -0.058 1.5 0.25 6.2 0.0 0.00 0.0 GX 17+2 273.979 -14.141 4.3 16.327 +1.251 10.7 1.83 5.9 0.0 0.00 0.0 XTE J1743-363 265.710 -36.382 4.8 353.343 -3.394 2.1 0.40 5.2 0.0 0.00 0.0 3A 1728-169 262.894 -16.913 5.1 8.534 +9.096 3.3 0.68 4.8 0.0 0.00 0.0 IGR J17407-2808 265.256 -28.129 0.0 0.157 +1.283 1.1 0.00 3.9 0.0 0.00 0.0 GRS 1734-292 264.323 -29.163 5.9 358.845 +1.425 1.1 0.26 4.1 0.0 0.00 0.0 V1223 Sgr 283.812 -31.240 6.5 4.904 -14.426 7.3 0.00 3.7 0.0 0.00 0.0 IGR J16500-3307 252.543 -33.053 0.0 349.779 +7.345 2.1 0.00 3.6 0.0 0.00 0.0JEM-X

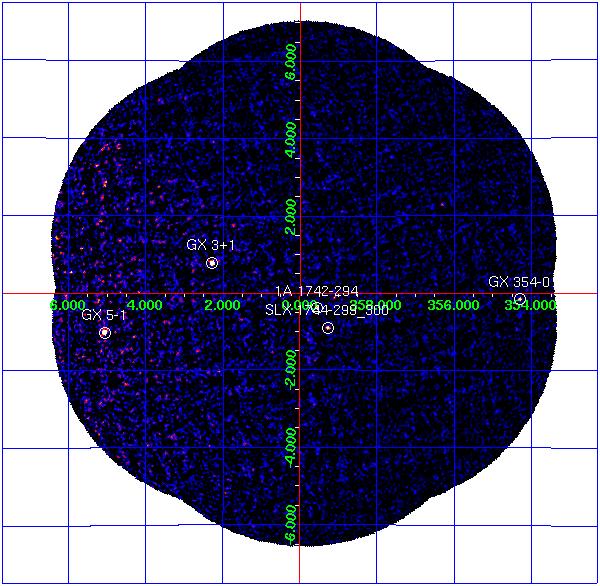

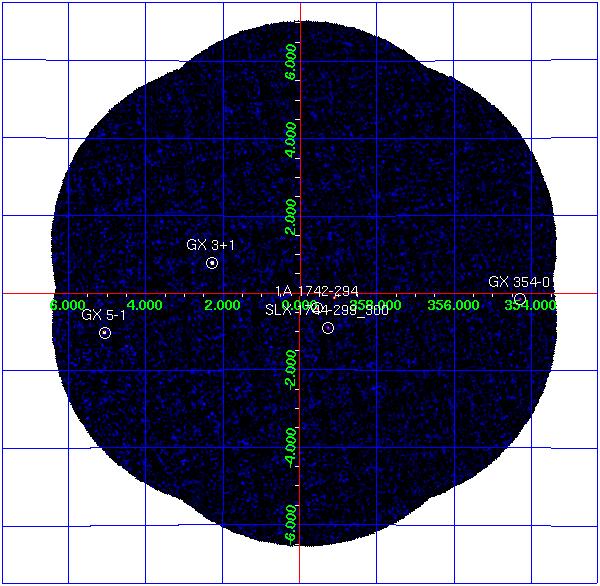

JEM-X significance mosaic images. Left: 3-10 keV. Right: 10-25 keV.Note: Sources labelled were detected with in the 3-10 keV image > 10σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with
mosaic_spec
, in two bands: A = 3-10 keV (1 Crab ~ 88 cps); B = 10-25 keV (1 Crab ~ 32 cps).NOTES: Fluxes for light curves are extracted from the images using
mosaic_spec
; The object marked as SLX 1744-299_300 is used to indicate two low-mass x-ray binaries separated by 2.7 arcminutes, SLX 1744-299 and SLX 1744-300; the position for SLX 1744-299 is used, although it can not be ruled out that SLX 1744-300 may dominate the emission some of the time.
JEM-X Detected Sources in 3-10 keV (A) and 10-25 keV (B).Source Name RA dec l b A(cps) +/- B(cps) +/- ==================== ======== ======== ======== ======== ====== ===== ====== ===== GX 354-0 262.989 -33.835 354.302 -0.150 11.3 1.24 2.7 0.79 1A 1742-294 266.523 -29.515 359.559 -0.389 2.4 0.30 0.8 0.21 GX 3+1 266.983 -26.564 2.294 +0.794 24.5 0.55 4.1 0.28 GX 5-1 270.284 -25.079 5.077 -1.019 90.7 2.22 8.6 0.93 SLX 1744-299_300 266.858 -29.999 359.297 -0.889 3.3 0.36 0.8 0.22
