INTEGRAL Galactic Bulge Monitoring Revolution 0304: Observation start 2005-04-09 = MJD 53469
Total Observation GTI = 12304 seconds
ISGRI

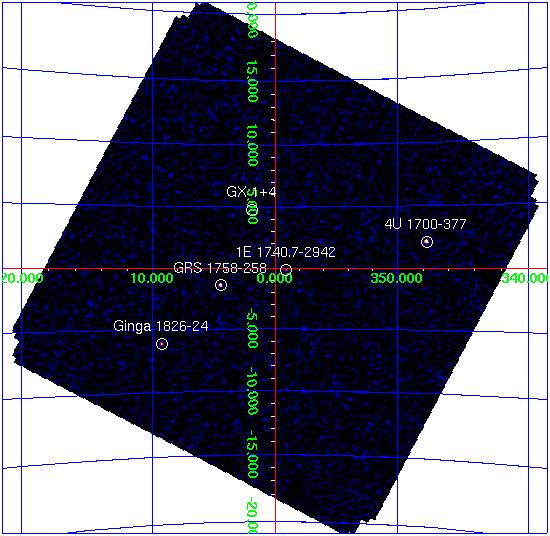

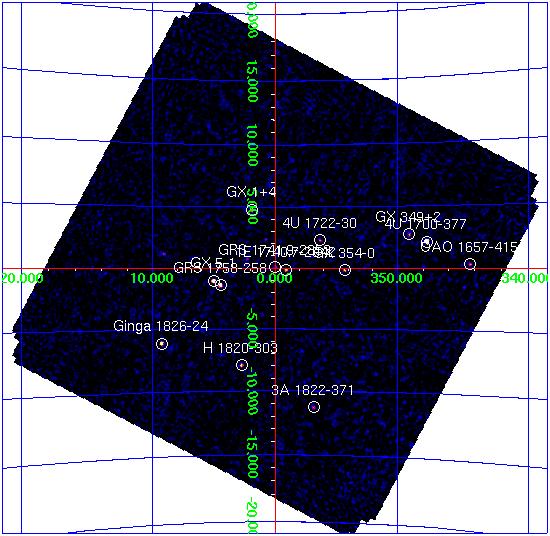

ISGRI significance mosaic images. Left: ISGRI 18-40 keV. Right: 40-100 keVSources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of
OSA7
, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 206 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.NOTES: The table is constructed from the
isgri_mosa_res.fits
file - fluxes in the mosaic output are known to be systematically ~10% lower than in the ScW light-curves (see known issues). The systematic noise increases towards the edge of the field of view andNEW
sources < 6σ towards the border of the image may be spurious.
ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)Source Name RA dec +/- l b A(cps) +/- sig B(cps) +/- sig ==================== ======== ======= === ======== ======== ====== ===== ===== ====== ===== ===== 4U 1700-377 255.988 -37.848 0.5 347.752 +2.170 51.3 0.69 74.3 16.9 0.52 32.3 GX 5-1 270.287 -25.083 0.6 5.075 -1.022 16.7 0.29 57.2 0.0 0.00 0.0 GRS 1758-258 270.305 -25.739 0.8 4.513 -1.362 13.2 0.31 42.7 8.7 0.25 34.7 Ginga 1826-24 277.355 -23.795 1.0 9.269 -6.077 14.6 0.50 29.6 6.4 0.39 16.4 GX 1+4 263.005 -24.735 1.2 1.944 +4.804 8.2 0.31 26.2 0.0 0.00 0.0 1E 1740.7-2942 265.987 -29.728 1.2 359.134 -0.103 6.7 0.27 24.3 3.1 0.23 13.5 H 1820-303 275.910 -30.356 1.5 2.789 -7.904 7.4 0.38 19.5 0.0 0.00 0.0 GX 354-0 262.993 -33.821 1.5 354.315 -0.145 5.4 0.28 19.2 0.0 0.00 0.0 OAO 1657-415 255.212 -41.645 2.1 344.381 +0.321 16.3 1.26 12.9 4.8 0.92 5.2 GX 349+2 256.438 -36.409 2.1 349.116 +2.755 6.8 0.52 13.1 0.0 0.00 0.0 4U 1722-30 261.883 -30.791 1.9 356.326 +2.308 4.3 0.29 14.7 1.4 0.24 5.8 3A 1822-371 276.426 -37.085 2.2 356.863 -11.268 6.6 0.53 12.6 0.0 0.00 0.0 GRS 1741.9-2853 266.306 -28.878 2.5 0.005 +0.104 2.5 0.24 10.6 1.2 0.20 5.8 GX 3+1 267.023 -26.548 3.1 2.325 +0.771 2.2 0.26 8.5 0.0 0.00 0.0 GX 9+1 270.384 -20.465 2.9 9.131 +1.186 3.3 0.37 8.9 0.0 0.00 0.0 SLX 1735-269 264.586 -27.007 2.7 0.793 +2.382 3.0 0.31 9.9 0.9 0.25 3.8 H 1702-429 256.579 -43.020 4.6 343.906 -1.318 9.9 1.84 5.4 6.1 0.00 4.3 GX 17+2 274.003 -14.067 4.7 16.403 +1.266 11.3 2.16 5.2 0.0 0.00 0.0 1A 1742-294 266.530 -29.508 4.7 359.569 -0.391 1.6 0.30 5.3 0.0 0.00 0.0 SLX 1737-282 265.177 -28.372 5.5 359.914 +1.214 1.3 0.30 4.5 0.0 0.00 0.0 XB 1832-330 278.875 -32.992 5.5 1.509 -11.328 2.3 0.52 4.5 0.0 0.00 0.0 SLX 1744-299_300 266.880 -30.013 5.7 359.294 -0.912 1.1 0.27 4.3 0.0 0.00 0.0 V1223 Sgr 283.736 -31.261 5.7 4.858 -14.375 7.3 1.70 4.3 0.0 0.00 0.0 IGR J18027-2016 270.732 -20.296 0.0 9.440 +0.986 1.5 0.00 3.8 0.0 0.00 0.0 GX 13+1 273.542 -17.235 6.0 13.407 +0.144 2.9 0.73 4.0 0.0 0.00 0.0 IGR J17200-3116 260.007 -31.298 7.5 355.001 +3.351 1.0 0.31 3.2 1.2 0.25 4.6 IGR J17473-2721 266.759 -27.399 6.7 1.475 +0.532 1.0 0.28 3.6 0.0 0.00 0.0JEM-X

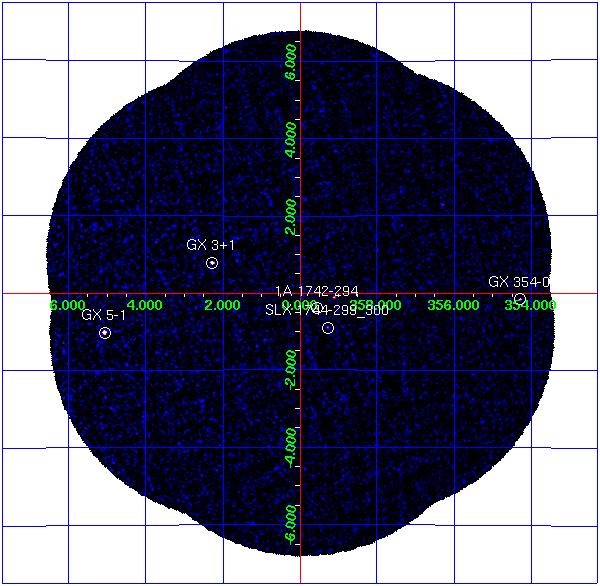

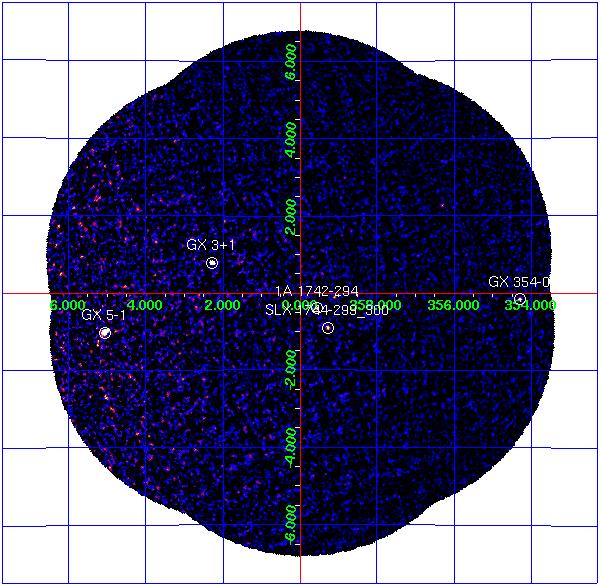

JEM-X significance mosaic images. Left: 3-10 keV. Right: 10-25 keV.Note: Sources labelled were detected with in the 3-10 keV image > 10σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with
mosaic_spec
, in two bands: A = 3-10 keV (1 Crab ~ 88 cps); B = 10-25 keV (1 Crab ~ 32 cps).NOTES: Fluxes for light curves are extracted from the images using
mosaic_spec
; The object marked as SLX 1744-299_300 is used to indicate two low-mass x-ray binaries separated by 2.7 arcminutes, SLX 1744-299 and SLX 1744-300; the position for SLX 1744-299 is used, although it can not be ruled out that SLX 1744-300 may dominate the emission some of the time.
JEM-X Detected Sources in 3-10 keV (A) and 10-25 keV (B).Source Name RA dec l b A(cps) +/- B(cps) +/- ==================== ======== ======== ======== ======== ====== ===== ====== ===== GX 354-0 262.989 -33.835 354.302 -0.150 18.3 1.44 4.0 0.90 1A 1742-294 266.523 -29.515 359.559 -0.389 3.0 0.37 1.0 0.22 GX 3+1 266.983 -26.564 2.294 +0.794 24.1 0.54 4.0 0.30 GX 5-1 270.284 -25.079 5.077 -1.019 155.5 2.65 21.9 1.14 SLX 1744-299_300 266.858 -29.999 359.297 -0.889 3.2 0.37 0.8 0.24
