INTEGRAL Galactic Bulge Monitoring Revolution 0305: Observation start 2005-04-14 = MJD 53474
Total Observation GTI = 13359 seconds
ISGRI

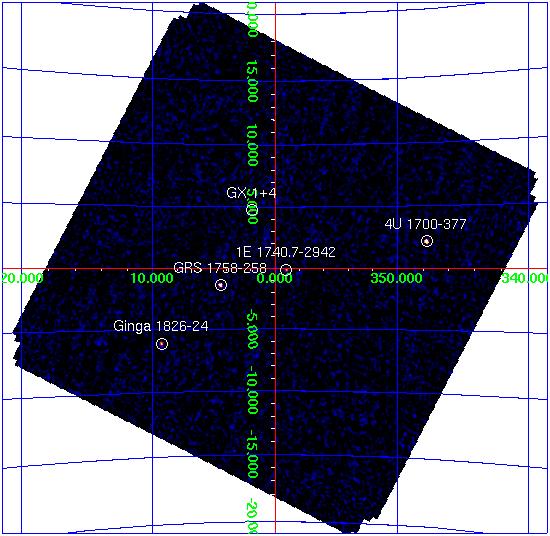

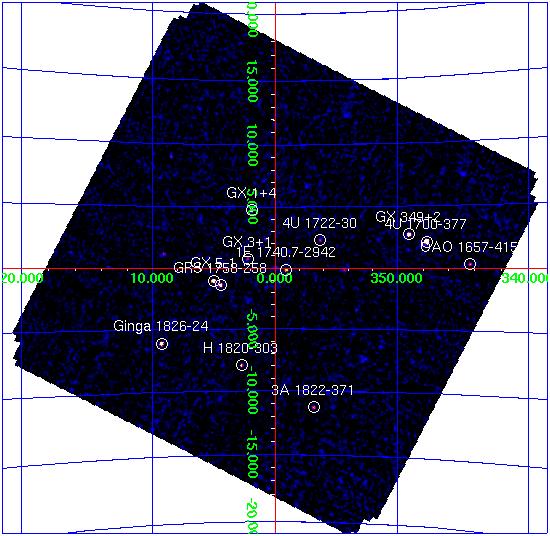

ISGRI significance mosaic images. Left: ISGRI 18-40 keV. Right: 40-100 keVSources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of
OSA7
, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 206 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.NOTES: The table is constructed from the
isgri_mosa_res.fits
file - fluxes in the mosaic output are known to be systematically ~10% lower than in the ScW light-curves (see known issues). The systematic noise increases towards the edge of the field of view andNEW
sources < 6σ towards the border of the image may be spurious.
ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)Source Name RA dec +/- l b A(cps) +/- sig B(cps) +/- sig ==================== ======== ======= === ======== ======== ====== ===== ===== ====== ===== ===== 4U 1700-377 255.995 -37.845 0.4 347.758 +2.168 63.6 0.64 98.6 18.5 0.48 38.4 GX 5-1 270.284 -25.080 0.6 5.077 -1.019 17.6 0.30 58.8 0.0 0.00 0.0 GRS 1758-258 270.306 -25.740 0.8 4.512 -1.363 10.3 0.26 39.2 8.5 0.21 40.1 GX 1+4 263.009 -24.744 0.8 1.938 +4.796 12.0 0.29 41.6 0.0 0.00 0.0 GX 349+2 256.446 -36.409 0.9 349.120 +2.750 18.6 0.50 37.3 0.0 0.00 0.0 Ginga 1826-24 277.385 -23.792 1.0 9.284 -6.100 15.4 0.47 32.9 6.0 0.36 16.7 1E 1740.7-2942 265.984 -29.744 1.2 359.119 -0.109 6.1 0.25 23.9 3.6 0.21 17.0 H 1820-303 275.918 -30.367 1.4 2.783 -7.915 7.5 0.37 20.2 0.0 0.00 0.0 OAO 1657-415 255.187 -41.646 1.8 344.369 +0.335 22.3 1.45 15.4 4.6 0.98 4.7 3A 1822-371 276.419 -37.101 1.8 356.845 -11.270 7.5 0.50 15.1 0.0 0.00 0.0 4U 1722-30 261.850 -30.791 2.3 356.311 +2.332 3.2 0.28 11.4 0.0 0.00 0.0 GX 354-0 262.996 -33.787 2.7 354.345 -0.129 3.1 0.31 9.9 0.0 0.00 0.0 GX 3+1 266.999 -26.572 2.6 2.294 +0.777 2.8 0.27 10.2 0.0 0.00 0.0 GX 9+1 270.422 -20.483 3.2 9.134 +1.146 3.0 0.37 8.1 0.0 0.00 0.0 IGR J17456-2901 266.344 -28.968 3.3 359.945 +0.029 1.8 0.23 7.9 0.0 0.00 0.0 3A 1728-169 262.914 -16.951 3.0 8.512 +9.060 5.3 0.61 8.7 0.0 0.00 0.0 SLX 1735-269 264.566 -26.970 3.0 0.814 +2.417 2.3 0.27 8.8 0.9 0.00 4.2 GX 17+2 273.979 -14.070 4.2 16.390 +1.284 14.0 2.32 6.0 0.0 0.00 0.0 GX 13+1 273.601 -17.171 3.5 13.490 +0.125 5.1 0.71 7.3 0.0 0.00 0.0 XTE J1743-363 265.723 -36.378 3.9 353.352 -3.401 2.1 0.32 6.5 0.0 0.00 0.0 1A 1742-294 266.496 -29.501 0.0 359.559 -0.362 1.7 0.00 5.8 0.0 0.00 0.0 H 1702-429 256.505 -43.056 4.2 343.845 -1.296 13.4 2.26 5.9 0.0 0.00 0.0 IGR J17252-3616 261.335 -36.303 4.0 351.497 -0.391 2.2 0.35 6.4 1.4 0.27 5.0 GRS 1734-292 264.355 -29.149 4.8 358.872 +1.410 1.4 0.27 5.2 0.0 0.00 0.0 SLX 1737-282 265.187 -28.261 0.0 0.013 +1.264 1.3 0.00 4.6 0.0 0.00 0.0 SLX 1744-299_300 266.844 -29.938 6.7 359.342 -0.847 0.9 0.26 3.6 0.0 0.00 0.0 IGR J16316-4028 247.888 -40.435 0.0 341.716 +5.309 13.2 0.00 3.7 0.0 0.00 0.0 NEW_1 256.584 -37.733 0.0 348.129 +1.865 3.4 0.00 6.8 0.0 0.00 0.0 NEW_2 284.461 -26.044 4.5 10.036 -12.859 16.7 2.68 5.6 0.0 0.00 0.0JEM-X

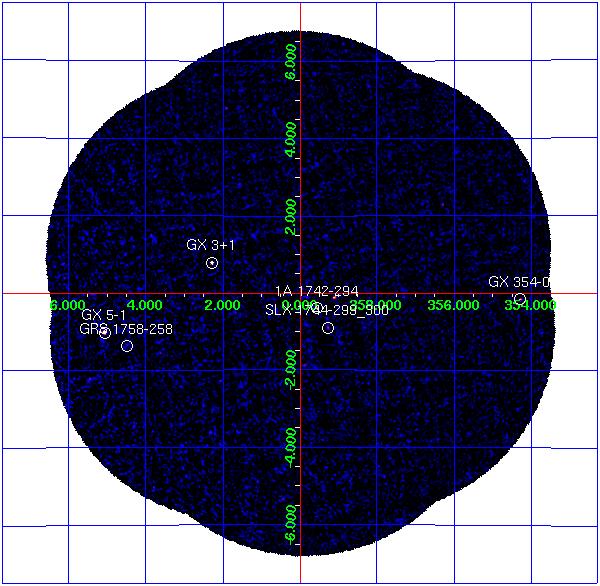

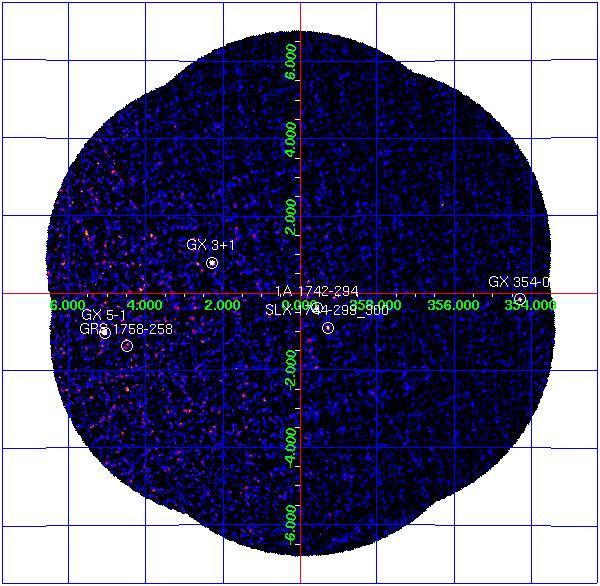

JEM-X significance mosaic images. Left: 3-10 keV. Right: 10-25 keV.Note: Sources labelled were detected with in the 3-10 keV image > 10σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with
mosaic_spec
, in two bands: A = 3-10 keV (1 Crab ~ 88 cps); B = 10-25 keV (1 Crab ~ 32 cps).NOTES: Fluxes for light curves are extracted from the images using
mosaic_spec
; The object marked as SLX 1744-299_300 is used to indicate two low-mass x-ray binaries separated by 2.7 arcminutes, SLX 1744-299 and SLX 1744-300; the position for SLX 1744-299 is used, although it can not be ruled out that SLX 1744-300 may dominate the emission some of the time.
JEM-X Detected Sources in 3-10 keV (A) and 10-25 keV (B).Source Name RA dec l b A(cps) +/- B(cps) +/- ==================== ======== ======== ======== ======== ====== ===== ====== ===== GX 354-0 262.989 -33.835 354.302 -0.150 17.6 1.41 3.3 0.87 1A 1742-294 266.523 -29.515 359.559 -0.389 5.2 0.33 1.0 0.20 GRS 1758-258 270.303 -25.741 4.511 -1.361 11.0 1.97 2.8 1.06 GX 3+1 266.983 -26.564 2.294 +0.794 21.3 0.52 2.9 0.28 GX 5-1 270.284 -25.079 5.077 -1.019 100.6 2.20 16.2 1.04 SLX 1744-299_300 266.858 -29.999 359.297 -0.889 3.2 0.37 0.7 0.24
