INTEGRAL Galactic Bulge MonitoringRevolution 0306: Observation start 2005-04-15 = MJD 53475
Total Observation GTI = 12311 seconds
ISGRI

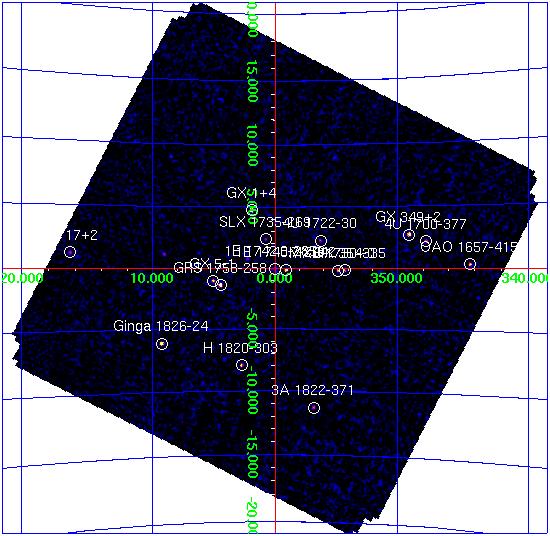

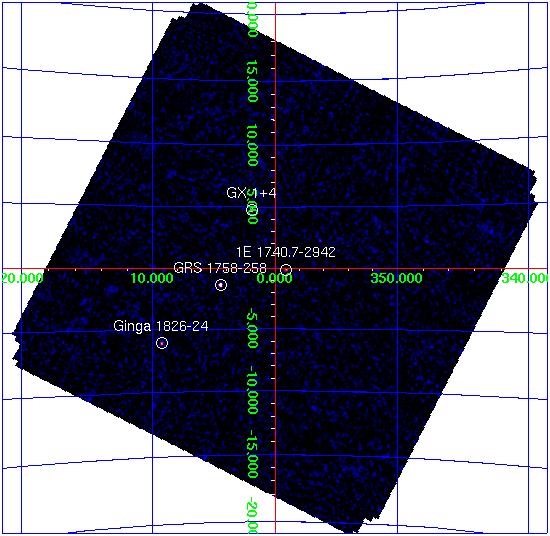

ISGRI significance mosaic images. Left: ISGRI 18-40 keV. Right: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA7, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 206 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.
NOTES: The table is constructed from the isgri_mosa_res.fits file - fluxes in the mosaic output are known to be systematically ~10% lower than in the ScW light-curves (see known issues). The systematic noise increases towards the edge of the field of view and NEW sources < 6σ towards the border of the image may be spurious.
ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)
Source Name RA dec +/- l b A(cps) +/- sig B(cps) +/- sig
==================== ======== ======= === ======== ======== ====== ===== ===== ====== ===== =====
GX 1+4 263.003 -24.747 0.7 1.933 +4.799 14.4 0.28 51.1 0.0 0.00 0.0
GRS 1758-258 270.305 -25.739 0.8 4.514 -1.362 11.4 0.28 41.0 8.8 0.23 38.9
GX 349+2 256.443 -36.420 1.0 349.110 +2.745 17.1 0.55 31.0 0.0 0.00 0.0
1E 1740.7-2942 265.973 -29.744 1.0 359.115 -0.101 7.8 0.26 29.7 3.8 0.22 17.2
Ginga 1826-24 277.368 -23.800 1.1 9.270 -6.090 14.4 0.51 28.2 5.7 0.39 14.4
OAO 1657-415 255.203 -41.660 1.6 344.365 +0.317 22.5 1.26 18.0 0.0 0.00 0.0
GX 5-1 270.300 -25.071 1.6 5.091 -1.027 5.0 0.29 17.2 0.0 0.00 0.0
MXB 1730-335 263.360 -33.399 1.7 354.836 -0.171 5.1 0.32 16.2 0.0 0.00 0.0
H 1820-303 275.910 -30.355 1.6 2.791 -7.904 7.0 0.38 18.3 0.0 0.00 0.0
4U 1700-377 255.991 -37.832 1.8 347.767 +2.178 8.9 0.59 15.0 2.4 0.46 5.2
GX 354-0 263.005 -33.820 1.9 354.322 -0.153 4.3 0.29 14.7 0.0 0.00 0.0
3A 1822-371 276.431 -37.092 2.0 356.858 -11.275 7.4 0.53 14.0 2.1 0.41 5.1
4U 1722-30 261.886 -30.834 2.2 356.292 +2.282 3.4 0.28 12.1 2.0 0.23 9.0
GX 17+2 274.019 -14.036 2.4 16.439 +1.266 31.0 2.74 11.3 0.0 0.00 0.0
SLX 1735-269 264.566 -26.997 2.5 0.791 +2.402 2.9 0.27 10.7 0.9 0.23 3.9
GX 9+1 270.375 -20.500 2.9 9.098 +1.175 3.7 0.41 9.0 0.0 0.00 0.0
GX 3+1 266.984 -26.549 3.1 2.306 +0.801 2.4 0.28 8.5 0.0 0.00 0.0
1E 1742.8-2853 266.418 -28.922 2.6 0.019 -0.002 2.5 0.24 10.3 0.0 0.00 0.0
3A 1728-169 262.938 -16.955 3.4 8.521 +9.038 4.8 0.63 7.6 0.0 0.00 0.0
SLX 1744-299_300 266.923 -30.016 3.6 359.312 -0.946 1.9 0.26 7.2 0.0 0.00 0.0
XTE J1818-245 274.572 -24.521 5.2 7.445 -4.160 1.8 0.38 4.7 0.0 0.00 0.0
XB 1832-330 278.861 -32.920 4.6 1.570 -11.287 3.0 0.55 5.4 0.0 0.00 0.0
1A 1742-294 266.639 -29.462 4.5 359.657 -0.448 1.7 0.31 5.5 0.0 0.00 0.0
JEM-X

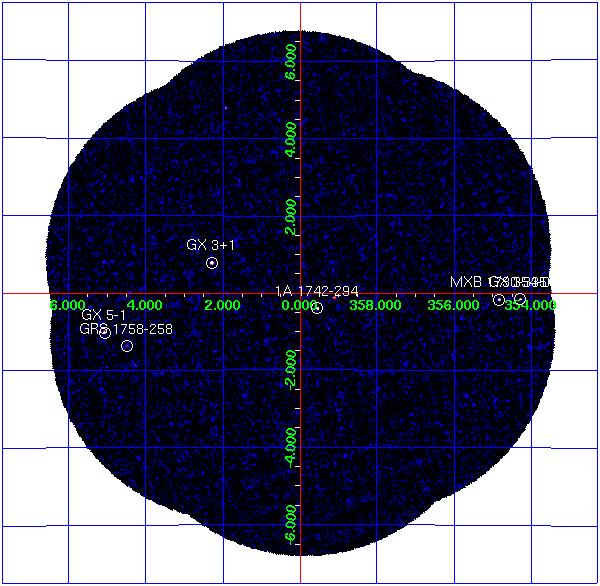

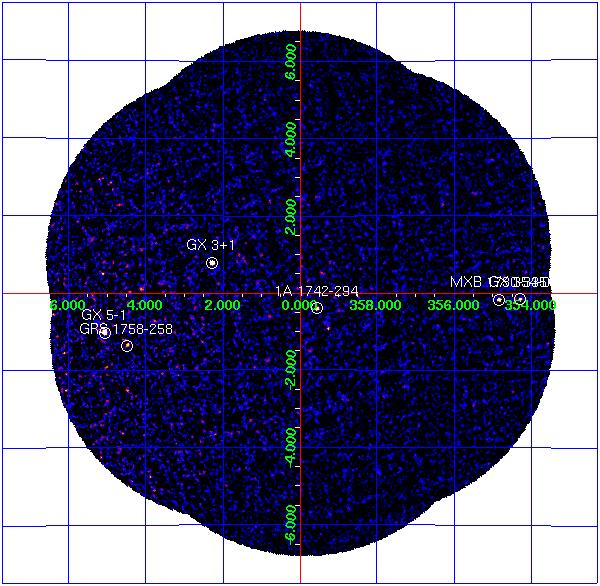

JEM-X significance mosaic images. Left: 3-10 keV. Right: 10-25 keV.
Note: Sources labelled were detected with in the 3-10 keV image > 10σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with mosaic_spec, in two bands: A = 3-10 keV (1 Crab ~ 88 cps); B = 10-25 keV (1 Crab ~ 32 cps).
NOTES: Fluxes for light curves are extracted from the images using mosaic_spec; The object marked as SLX 1744-299_300 is used to indicate two low-mass x-ray binaries separated by 2.7 arcminutes, SLX 1744-299 and SLX 1744-300; the position for SLX 1744-299 is used, although it can not be ruled out that SLX 1744-300 may dominate the emission some of the time.
JEM-X Detected Sources in 3-10 keV (A) and 10-25 keV (B).
Source Name RA dec l b A(cps) +/- B(cps) +/-
==================== ======== ======== ======== ======== ====== ===== ====== =====
MXB 1730-335 263.350 -33.388 354.841 -0.158 19.3 1.17 4.5 0.71
GX 354-0 262.989 -33.835 354.302 -0.150 18.2 1.65 3.7 0.90
1A 1742-294 266.523 -29.515 359.559 -0.389 6.0 0.35 1.5 0.20
GRS 1758-258 270.303 -25.741 4.511 -1.361 9.9 1.67 2.0 0.70
GX 3+1 266.983 -26.564 2.294 +0.794 24.2 0.51 3.4 0.27
GX 5-1 270.284 -25.079 5.077 -1.019 84.5 1.96 6.1 0.81
Go back to Bulge home page
Revolution 0306: Observation start 2005-04-15 = MJD 53475
Total Observation GTI = 12311 seconds
ISGRI
ISGRI significance mosaic images. Left: ISGRI 18-40 keV. Right: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA7, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 206 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.
NOTES: The table is constructed from the isgri_mosa_res.fits file - fluxes in the mosaic output are known to be systematically ~10% lower than in the ScW light-curves (see known issues). The systematic noise increases towards the edge of the field of view and NEW sources < 6σ towards the border of the image may be spurious.
ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)
Source Name RA dec +/- l b A(cps) +/- sig B(cps) +/- sig ==================== ======== ======= === ======== ======== ====== ===== ===== ====== ===== ===== GX 1+4 263.003 -24.747 0.7 1.933 +4.799 14.4 0.28 51.1 0.0 0.00 0.0 GRS 1758-258 270.305 -25.739 0.8 4.514 -1.362 11.4 0.28 41.0 8.8 0.23 38.9 GX 349+2 256.443 -36.420 1.0 349.110 +2.745 17.1 0.55 31.0 0.0 0.00 0.0 1E 1740.7-2942 265.973 -29.744 1.0 359.115 -0.101 7.8 0.26 29.7 3.8 0.22 17.2 Ginga 1826-24 277.368 -23.800 1.1 9.270 -6.090 14.4 0.51 28.2 5.7 0.39 14.4 OAO 1657-415 255.203 -41.660 1.6 344.365 +0.317 22.5 1.26 18.0 0.0 0.00 0.0 GX 5-1 270.300 -25.071 1.6 5.091 -1.027 5.0 0.29 17.2 0.0 0.00 0.0 MXB 1730-335 263.360 -33.399 1.7 354.836 -0.171 5.1 0.32 16.2 0.0 0.00 0.0 H 1820-303 275.910 -30.355 1.6 2.791 -7.904 7.0 0.38 18.3 0.0 0.00 0.0 4U 1700-377 255.991 -37.832 1.8 347.767 +2.178 8.9 0.59 15.0 2.4 0.46 5.2 GX 354-0 263.005 -33.820 1.9 354.322 -0.153 4.3 0.29 14.7 0.0 0.00 0.0 3A 1822-371 276.431 -37.092 2.0 356.858 -11.275 7.4 0.53 14.0 2.1 0.41 5.1 4U 1722-30 261.886 -30.834 2.2 356.292 +2.282 3.4 0.28 12.1 2.0 0.23 9.0 GX 17+2 274.019 -14.036 2.4 16.439 +1.266 31.0 2.74 11.3 0.0 0.00 0.0 SLX 1735-269 264.566 -26.997 2.5 0.791 +2.402 2.9 0.27 10.7 0.9 0.23 3.9 GX 9+1 270.375 -20.500 2.9 9.098 +1.175 3.7 0.41 9.0 0.0 0.00 0.0 GX 3+1 266.984 -26.549 3.1 2.306 +0.801 2.4 0.28 8.5 0.0 0.00 0.0 1E 1742.8-2853 266.418 -28.922 2.6 0.019 -0.002 2.5 0.24 10.3 0.0 0.00 0.0 3A 1728-169 262.938 -16.955 3.4 8.521 +9.038 4.8 0.63 7.6 0.0 0.00 0.0 SLX 1744-299_300 266.923 -30.016 3.6 359.312 -0.946 1.9 0.26 7.2 0.0 0.00 0.0 XTE J1818-245 274.572 -24.521 5.2 7.445 -4.160 1.8 0.38 4.7 0.0 0.00 0.0 XB 1832-330 278.861 -32.920 4.6 1.570 -11.287 3.0 0.55 5.4 0.0 0.00 0.0 1A 1742-294 266.639 -29.462 4.5 359.657 -0.448 1.7 0.31 5.5 0.0 0.00 0.0
JEM-X
JEM-X significance mosaic images. Left: 3-10 keV. Right: 10-25 keV.
Note: Sources labelled were detected with in the 3-10 keV image > 10σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with mosaic_spec, in two bands: A = 3-10 keV (1 Crab ~ 88 cps); B = 10-25 keV (1 Crab ~ 32 cps).
NOTES: Fluxes for light curves are extracted from the images using mosaic_spec; The object marked as SLX 1744-299_300 is used to indicate two low-mass x-ray binaries separated by 2.7 arcminutes, SLX 1744-299 and SLX 1744-300; the position for SLX 1744-299 is used, although it can not be ruled out that SLX 1744-300 may dominate the emission some of the time.
JEM-X Detected Sources in 3-10 keV (A) and 10-25 keV (B).
Source Name RA dec l b A(cps) +/- B(cps) +/- ==================== ======== ======== ======== ======== ====== ===== ====== ===== MXB 1730-335 263.350 -33.388 354.841 -0.158 19.3 1.17 4.5 0.71 GX 354-0 262.989 -33.835 354.302 -0.150 18.2 1.65 3.7 0.90 1A 1742-294 266.523 -29.515 359.559 -0.389 6.0 0.35 1.5 0.20 GRS 1758-258 270.303 -25.741 4.511 -1.361 9.9 1.67 2.0 0.70 GX 3+1 266.983 -26.564 2.294 +0.794 24.2 0.51 3.4 0.27 GX 5-1 270.284 -25.079 5.077 -1.019 84.5 1.96 6.1 0.81
