INTEGRAL Galactic Bulge MonitoringRevolution 0354: Observation start 2005-09-07 = MJD 53620
Total Observation GTI = 12391 seconds
ISGRI

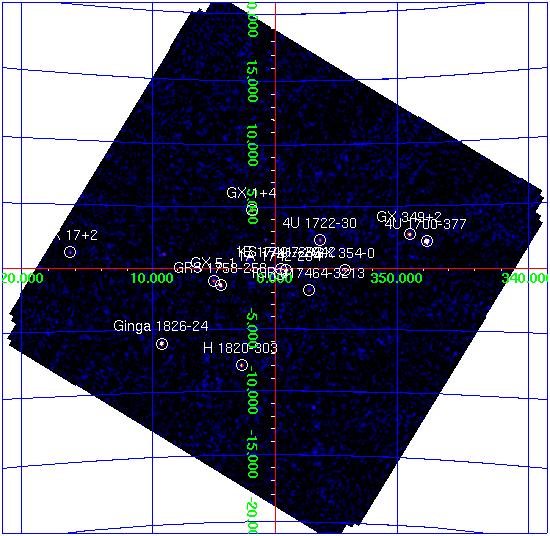

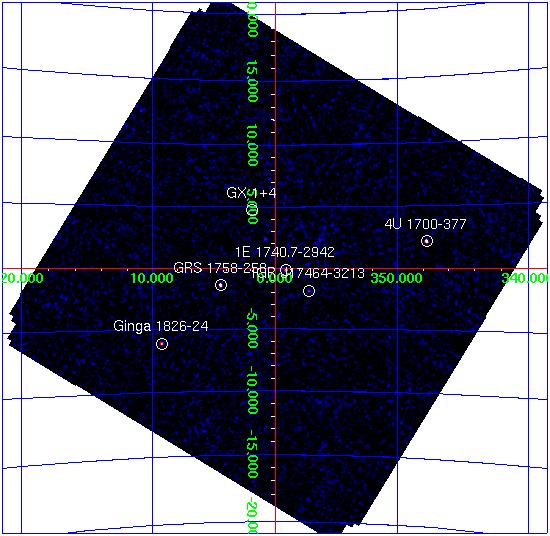

ISGRI significance mosaic images. Left: ISGRI 18-40 keV. Right: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA7, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 206 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.
NOTES: The table is constructed from the isgri_mosa_res.fits file - fluxes in the mosaic output are known to be systematically ~10% lower than in the ScW light-curves (see known issues). The systematic noise increases towards the edge of the field of view and NEW sources < 6σ towards the border of the image may be spurious.
ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)
Source Name RA dec +/- l b A(cps) +/- sig B(cps) +/- sig
==================== ======== ======= === ======== ======== ====== ===== ===== ====== ===== =====
4U 1700-377 255.983 -37.844 0.5 347.752 +2.176 57.4 0.64 89.6 14.8 0.49 30.3
GRS 1758-258 270.306 -25.749 0.8 4.505 -1.368 12.0 0.28 42.2 7.8 0.23 33.5
Ginga 1826-24 277.368 -23.794 0.9 9.275 -6.087 18.4 0.52 35.3 7.0 0.40 17.5
1E 1740.7-2942 265.983 -29.748 1.0 359.116 -0.110 8.1 0.25 32.4 4.3 0.21 20.3
GX 1+4 263.011 -24.742 1.1 1.941 +4.795 9.3 0.32 28.8 0.0 0.00 0.0
GX 349+2 256.429 -36.425 1.3 349.099 +2.751 12.6 0.55 23.1 0.0 0.00 0.0
H 1820-303 275.919 -30.361 1.5 2.788 -7.914 8.2 0.41 19.8 0.0 0.00 0.0
KS 1741-293 266.212 -29.336 0.0 359.571 -0.065 4.1 0.00 16.5 1.8 0.00 8.8
GX 354-0 262.974 -33.841 1.8 354.290 -0.143 4.8 0.31 15.6 0.0 0.00 0.0
GX 5-1 270.267 -25.098 2.0 5.053 -1.014 3.9 0.29 13.4 0.0 0.00 0.0
1A 1742-294 266.590 -29.501 0.0 359.602 -0.432 3.3 0.00 13.5 0.0 0.00 0.0
4U 1722-30 261.871 -30.790 2.1 356.322 +2.317 3.7 0.28 13.1 1.3 0.23 5.7
GX 17+2 273.999 -14.039 2.0 16.426 +1.282 30.9 2.27 13.6 0.0 0.00 0.0
GX 9+1 270.430 -20.485 3.1 9.136 +1.138 3.7 0.44 8.3 0.0 0.00 0.0
IGR J17464-3213 266.509 -32.242 2.5 357.223 -1.797 2.9 0.28 10.5 2.3 0.23 10.2
GX 3+1 267.022 -26.577 2.8 2.301 +0.757 2.4 0.26 9.3 0.0 0.00 0.0
SLX 1735-269 264.599 -27.005 2.9 0.800 +2.373 2.4 0.26 9.1 1.7 0.22 7.8
3A 1822-371 276.420 -37.093 3.8 356.852 -11.268 3.8 0.56 6.8 0.0 0.00 0.0
IGR J17456-2901 266.401 -28.925 0.0 0.008 +0.009 1.5 0.00 6.3 0.0 0.00 0.0
V2400 Oph 258.054 -24.272 4.7 359.793 +8.797 2.1 0.40 5.3 0.0 0.00 0.0
SLX 1737-282 265.113 -28.301 4.4 359.944 +1.299 1.4 0.25 5.7 0.0 0.00 0.0
GRS 1747-312 267.704 -31.253 5.9 358.596 -2.158 1.1 0.26 4.1 0.0 0.00 0.0
SAX J1712.6-3739 258.087 -37.711 4.7 348.854 +0.923 2.8 0.52 5.3 0.0 0.00 0.0
SLX 1744-299_300 266.777 -30.039 5.0 359.226 -0.849 1.2 0.25 4.9 0.0 0.00 0.0
IGR J17252-3616 261.269 -36.266 5.0 351.498 -0.326 2.1 0.42 5.0 0.0 0.00 0.0
3A 1728-169 262.928 -16.951 4.2 8.519 +9.048 4.0 0.68 6.0 0.0 0.00 0.0
JEM-X

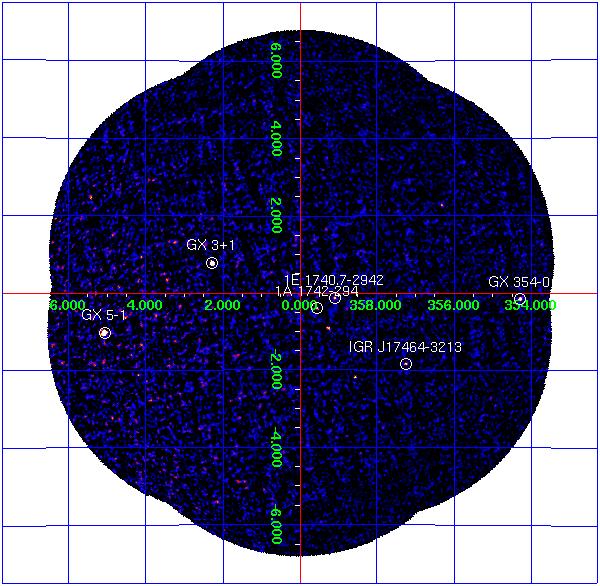

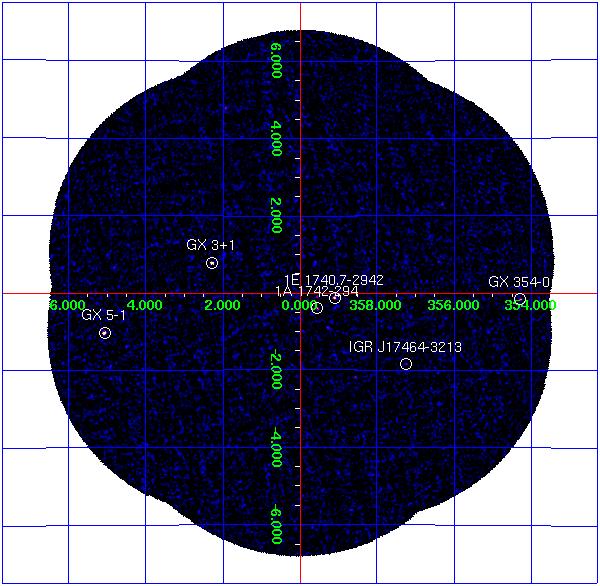

JEM-X significance mosaic images. Left: 3-10 keV. Right: 10-25 keV.
Note: Sources labelled were detected with in the 3-10 keV image > 10σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with mosaic_spec, in two bands: A = 3-10 keV (1 Crab ~ 88 cps); B = 10-25 keV (1 Crab ~ 32 cps).
NOTES: Fluxes for light curves are extracted from the images using mosaic_spec; The object marked as SLX 1744-299_300 is used to indicate two low-mass x-ray binaries separated by 2.7 arcminutes, SLX 1744-299 and SLX 1744-300; the position for SLX 1744-299 is used, although it can not be ruled out that SLX 1744-300 may dominate the emission some of the time.
JEM-X Detected Sources in 3-10 keV (A) and 10-25 keV (B).
Source Name RA dec l b A(cps) +/- B(cps) +/-
==================== ======== ======== ======== ======== ====== ===== ====== =====
1E 1740.7-2942 265.978 -29.745 359.116 -0.106 1.9 0.36 1.4 0.23
GX 354-0 262.989 -33.835 354.302 -0.150 19.1 1.66 3.0 0.82
1A 1742-294 266.523 -29.515 359.559 -0.389 1.5 0.29 0.7 0.19
GX 3+1 266.983 -26.564 2.294 +0.794 23.0 0.53 2.9 0.28
GX 5-1 270.284 -25.079 5.077 -1.019 115.4 2.30 11.7 1.03
IGR J17464-3213 266.567 -32.229 357.260 -1.832 3.0 0.47 0.7 0.30
Go back to Bulge home page
Revolution 0354: Observation start 2005-09-07 = MJD 53620
Total Observation GTI = 12391 seconds
ISGRI
ISGRI significance mosaic images. Left: ISGRI 18-40 keV. Right: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA7, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 206 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.
NOTES: The table is constructed from the isgri_mosa_res.fits file - fluxes in the mosaic output are known to be systematically ~10% lower than in the ScW light-curves (see known issues). The systematic noise increases towards the edge of the field of view and NEW sources < 6σ towards the border of the image may be spurious.
ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)
Source Name RA dec +/- l b A(cps) +/- sig B(cps) +/- sig ==================== ======== ======= === ======== ======== ====== ===== ===== ====== ===== ===== 4U 1700-377 255.983 -37.844 0.5 347.752 +2.176 57.4 0.64 89.6 14.8 0.49 30.3 GRS 1758-258 270.306 -25.749 0.8 4.505 -1.368 12.0 0.28 42.2 7.8 0.23 33.5 Ginga 1826-24 277.368 -23.794 0.9 9.275 -6.087 18.4 0.52 35.3 7.0 0.40 17.5 1E 1740.7-2942 265.983 -29.748 1.0 359.116 -0.110 8.1 0.25 32.4 4.3 0.21 20.3 GX 1+4 263.011 -24.742 1.1 1.941 +4.795 9.3 0.32 28.8 0.0 0.00 0.0 GX 349+2 256.429 -36.425 1.3 349.099 +2.751 12.6 0.55 23.1 0.0 0.00 0.0 H 1820-303 275.919 -30.361 1.5 2.788 -7.914 8.2 0.41 19.8 0.0 0.00 0.0 KS 1741-293 266.212 -29.336 0.0 359.571 -0.065 4.1 0.00 16.5 1.8 0.00 8.8 GX 354-0 262.974 -33.841 1.8 354.290 -0.143 4.8 0.31 15.6 0.0 0.00 0.0 GX 5-1 270.267 -25.098 2.0 5.053 -1.014 3.9 0.29 13.4 0.0 0.00 0.0 1A 1742-294 266.590 -29.501 0.0 359.602 -0.432 3.3 0.00 13.5 0.0 0.00 0.0 4U 1722-30 261.871 -30.790 2.1 356.322 +2.317 3.7 0.28 13.1 1.3 0.23 5.7 GX 17+2 273.999 -14.039 2.0 16.426 +1.282 30.9 2.27 13.6 0.0 0.00 0.0 GX 9+1 270.430 -20.485 3.1 9.136 +1.138 3.7 0.44 8.3 0.0 0.00 0.0 IGR J17464-3213 266.509 -32.242 2.5 357.223 -1.797 2.9 0.28 10.5 2.3 0.23 10.2 GX 3+1 267.022 -26.577 2.8 2.301 +0.757 2.4 0.26 9.3 0.0 0.00 0.0 SLX 1735-269 264.599 -27.005 2.9 0.800 +2.373 2.4 0.26 9.1 1.7 0.22 7.8 3A 1822-371 276.420 -37.093 3.8 356.852 -11.268 3.8 0.56 6.8 0.0 0.00 0.0 IGR J17456-2901 266.401 -28.925 0.0 0.008 +0.009 1.5 0.00 6.3 0.0 0.00 0.0 V2400 Oph 258.054 -24.272 4.7 359.793 +8.797 2.1 0.40 5.3 0.0 0.00 0.0 SLX 1737-282 265.113 -28.301 4.4 359.944 +1.299 1.4 0.25 5.7 0.0 0.00 0.0 GRS 1747-312 267.704 -31.253 5.9 358.596 -2.158 1.1 0.26 4.1 0.0 0.00 0.0 SAX J1712.6-3739 258.087 -37.711 4.7 348.854 +0.923 2.8 0.52 5.3 0.0 0.00 0.0 SLX 1744-299_300 266.777 -30.039 5.0 359.226 -0.849 1.2 0.25 4.9 0.0 0.00 0.0 IGR J17252-3616 261.269 -36.266 5.0 351.498 -0.326 2.1 0.42 5.0 0.0 0.00 0.0 3A 1728-169 262.928 -16.951 4.2 8.519 +9.048 4.0 0.68 6.0 0.0 0.00 0.0
JEM-X
JEM-X significance mosaic images. Left: 3-10 keV. Right: 10-25 keV.
Note: Sources labelled were detected with in the 3-10 keV image > 10σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with mosaic_spec, in two bands: A = 3-10 keV (1 Crab ~ 88 cps); B = 10-25 keV (1 Crab ~ 32 cps).
NOTES: Fluxes for light curves are extracted from the images using mosaic_spec; The object marked as SLX 1744-299_300 is used to indicate two low-mass x-ray binaries separated by 2.7 arcminutes, SLX 1744-299 and SLX 1744-300; the position for SLX 1744-299 is used, although it can not be ruled out that SLX 1744-300 may dominate the emission some of the time.
JEM-X Detected Sources in 3-10 keV (A) and 10-25 keV (B).
Source Name RA dec l b A(cps) +/- B(cps) +/- ==================== ======== ======== ======== ======== ====== ===== ====== ===== 1E 1740.7-2942 265.978 -29.745 359.116 -0.106 1.9 0.36 1.4 0.23 GX 354-0 262.989 -33.835 354.302 -0.150 19.1 1.66 3.0 0.82 1A 1742-294 266.523 -29.515 359.559 -0.389 1.5 0.29 0.7 0.19 GX 3+1 266.983 -26.564 2.294 +0.794 23.0 0.53 2.9 0.28 GX 5-1 270.284 -25.079 5.077 -1.019 115.4 2.30 11.7 1.03 IGR J17464-3213 266.567 -32.229 357.260 -1.832 3.0 0.47 0.7 0.30
