INTEGRAL Galactic Bulge MonitoringRevolution 0366: Observation start 2005-10-12 = MJD 53655
Total Observation GTI = 12405 seconds
ISGRI

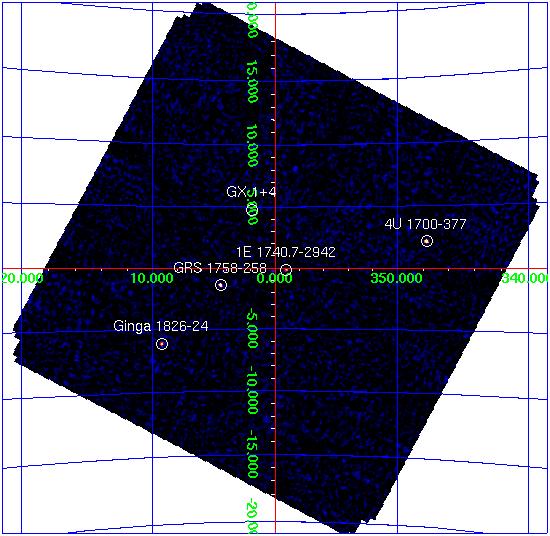

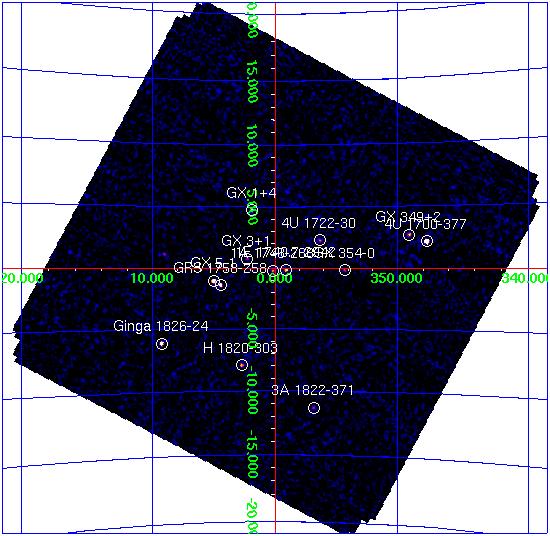

ISGRI significance mosaic images. Left: ISGRI 18-40 keV. Right: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA7, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 206 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.
NOTES: The table is constructed from the isgri_mosa_res.fits file - fluxes in the mosaic output are known to be systematically ~10% lower than in the ScW light-curves (see known issues). The systematic noise increases towards the edge of the field of view and NEW sources < 6σ towards the border of the image may be spurious.
ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)
Source Name RA dec +/- l b A(cps) +/- sig B(cps) +/- sig
==================== ======== ======= === ======== ======== ====== ===== ===== ====== ===== =====
4U 1700-377 255.985 -37.851 0.5 347.748 +2.170 53.1 0.60 88.1 15.6 0.47 33.3
GX 5-1 270.285 -25.087 0.6 5.071 -1.023 18.4 0.28 65.4 0.0 0.00 0.0
GRS 1758-258 270.300 -25.739 0.8 4.511 -1.357 14.0 0.32 44.5 9.9 0.26 38.4
Ginga 1826-24 277.365 -23.795 0.9 9.273 -6.085 18.4 0.51 36.1 7.5 0.40 18.7
1E 1740.7-2942 265.984 -29.736 1.1 359.126 -0.105 7.4 0.28 26.6 4.7 0.23 19.9
GX 1+4 263.017 -24.751 1.1 1.936 +4.786 7.7 0.29 26.7 0.0 0.00 0.0
GX 349+2 256.443 -36.421 1.6 349.109 +2.745 8.7 0.49 17.8 0.0 0.00 0.0
H 1820-303 275.887 -30.372 1.7 2.766 -7.894 6.5 0.39 16.8 0.0 0.00 0.0
1A 1743-288 266.687 -28.867 2.2 0.188 -0.175 3.1 0.25 12.2 1.7 0.22 7.9
4U 1722-30 261.900 -30.776 2.3 356.347 +2.305 3.5 0.31 11.5 0.0 0.00 0.0
GX 354-0 263.004 -33.810 2.2 354.329 -0.147 3.6 0.29 12.2 0.0 0.00 0.0
3A 1822-371 276.467 -37.114 2.5 356.850 -11.311 5.7 0.55 10.4 0.0 0.00 0.0
GX 9+1 270.380 -20.559 3.1 9.049 +1.143 3.4 0.40 8.4 0.0 0.00 0.0
GX 3+1 267.003 -26.549 2.5 2.315 +0.786 2.8 0.26 10.7 0.0 0.00 0.0
SLX 1735-269 264.564 -27.017 3.3 0.774 +2.393 2.3 0.30 7.8 0.0 0.00 0.0
XTE J1739-285 265.067 -28.577 4.8 359.689 +1.187 1.4 0.26 5.2 0.0 0.00 0.0
GX 17+2 273.985 -14.033 4.0 16.426 +1.297 15.3 2.40 6.4 0.0 0.00 0.0
IGR J18027-2016 270.614 -20.228 4.5 9.445 +1.115 2.2 0.39 5.6 0.0 0.00 0.0
GX 13+1 273.629 -17.269 5.6 13.418 +0.055 3.0 0.00 4.4 0.0 0.00 0.0
H 1705-440 257.137 -44.192 6.1 343.210 -2.344 17.9 4.52 4.0 0.0 0.00 0.0
1A 1742-294 266.496 -29.501 0.0 359.559 -0.362 1.1 0.00 3.9 0.0 0.00 0.0
GRS 1741.9-2853 266.307 -28.925 0.0 359.965 +0.079 0.9 0.00 3.8 0.0 0.00 0.0
SLX 1744-299_300 266.876 -29.994 0.0 359.309 -0.900 1.0 0.00 3.7 0.0 0.00 0.0
JEM-X

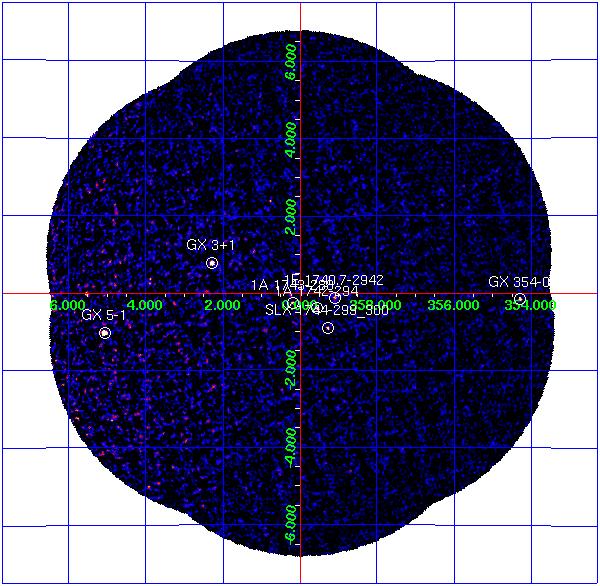

JEM-X significance mosaic images. Left: 3-10 keV. Right: 10-25 keV.
Note: Sources labelled were detected with in the 3-10 keV image > 10σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with mosaic_spec, in two bands: A = 3-10 keV (1 Crab ~ 88 cps); B = 10-25 keV (1 Crab ~ 32 cps).
NOTES: Fluxes for light curves are extracted from the images using mosaic_spec; The object marked as SLX 1744-299_300 is used to indicate two low-mass x-ray binaries separated by 2.7 arcminutes, SLX 1744-299 and SLX 1744-300; the position for SLX 1744-299 is used, although it can not be ruled out that SLX 1744-300 may dominate the emission some of the time.
JEM-X Detected Sources in 3-10 keV (A) and 10-25 keV (B).
Source Name RA dec l b A(cps) +/- B(cps) +/-
==================== ======== ======== ======== ======== ====== ===== ====== =====
1A 1743-288 266.761 -28.883 0.207 -0.238 1.8 0.34 0.7 0.20
1E 1740.7-2942 265.978 -29.745 359.116 -0.106 2.2 0.43 1.1 0.22
GX 354-0 262.989 -33.835 354.302 -0.150 14.3 1.43 3.6 0.90
1A 1742-294 266.523 -29.515 359.559 -0.389 3.7 0.31 0.8 0.17
GX 3+1 266.983 -26.564 2.294 +0.794 20.6 0.52 2.8 0.27
GX 5-1 270.284 -25.079 5.077 -1.019 95.4 2.08 18.9 1.06
SLX 1744-299_300 266.858 -29.999 359.297 -0.889 2.0 0.31 0.4 0.18
