INTEGRAL Galactic Bulge Monitoring Revolution 0367: Observation start 2005-10-15 = MJD 53658
Total Observation GTI = 12177 seconds
ISGRI

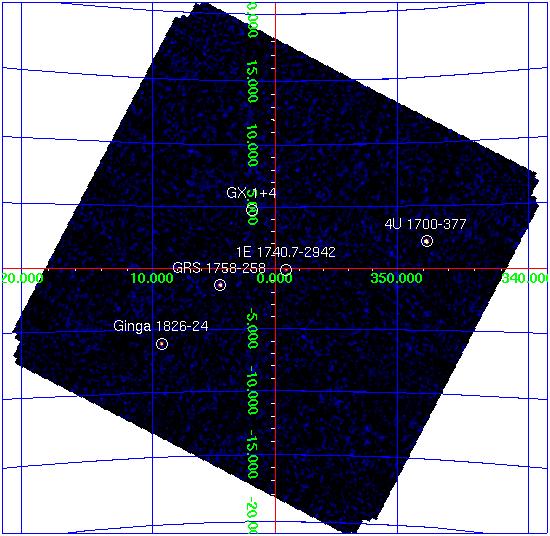

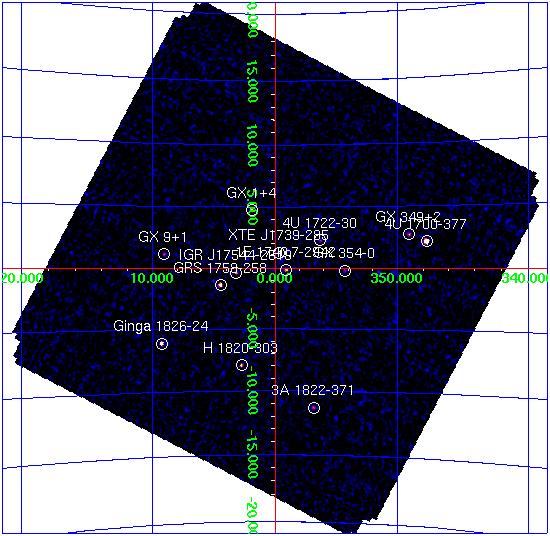

ISGRI significance mosaic images. Left: ISGRI 18-40 keV. Right: 40-100 keVSources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of
OSA7
, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 206 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.NOTES: The table is constructed from the
isgri_mosa_res.fits
file - fluxes in the mosaic output are known to be systematically ~10% lower than in the ScW light-curves (see known issues). The systematic noise increases towards the edge of the field of view andNEW
sources < 6σ towards the border of the image may be spurious.
ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)Source Name RA dec +/- l b A(cps) +/- sig B(cps) +/- sig ==================== ======== ======= === ======== ======== ====== ===== ===== ====== ===== ===== 4U 1700-377 255.992 -37.840 0.4 347.760 +2.173 71.2 0.57 123.9 17.8 0.44 40.4 GRS 1758-258 270.304 -25.740 0.8 4.512 -1.361 13.1 0.29 44.8 8.9 0.24 36.9 Ginga 1826-24 277.368 -23.800 0.9 9.270 -6.090 17.6 0.48 36.3 7.8 0.39 20.0 GX 1+4 263.009 -24.738 1.0 1.943 +4.799 10.4 0.32 33.1 0.0 0.00 0.0 1E 1740.7-2942 265.980 -29.737 1.2 359.124 -0.103 6.5 0.27 23.8 4.2 0.23 18.0 H 1820-303 275.916 -30.360 1.4 2.788 -7.911 8.0 0.38 21.0 0.0 0.00 0.0 IGR J17544-2619 268.610 -26.344 1.6 3.227 -0.346 5.0 0.28 17.9 0.0 0.00 0.0 GX 349+2 256.448 -36.405 1.9 349.124 +2.751 7.9 0.54 14.7 0.0 0.00 0.0 GX 9+1 270.387 -20.548 2.2 9.061 +1.142 4.9 0.41 12.0 0.0 0.00 0.0 3A 1822-371 276.443 -37.097 2.3 356.857 -11.286 6.4 0.54 11.9 0.0 0.00 0.0 4U 1722-30 261.880 -30.812 2.5 356.308 +2.298 3.2 0.29 10.9 1.0 0.24 4.2 XTE J1739-285 264.974 -28.499 2.4 359.711 +1.297 3.0 0.27 11.0 0.9 0.22 4.3 GX 354-0 263.004 -33.853 2.4 354.294 -0.171 3.6 0.33 11.0 0.0 0.00 0.0 GX 5-1 270.304 -25.095 3.4 5.073 -1.042 2.3 0.31 7.6 0.0 0.00 0.0 IGR J17252-3616 261.302 -36.245 3.2 351.530 -0.336 3.3 0.41 8.0 0.0 0.00 0.0 SLX 1744-299_300 266.851 -30.018 3.0 359.277 -0.894 2.2 0.26 8.6 0.0 0.00 0.0 GRS 1734-292 264.355 -29.055 3.9 358.951 +1.460 1.8 0.27 6.5 0.0 0.00 0.0 XB 1832-330 278.951 -33.027 4.1 1.505 -11.401 3.3 0.54 6.1 0.0 0.00 0.0 GX 17+2 273.998 -14.134 4.4 16.343 +1.238 13.4 2.34 5.7 0.0 0.00 0.0 1E 1742.9-2849 266.502 -28.871 4.8 0.099 -0.039 1.3 0.25 5.2 0.0 0.00 0.0 SLX 1735-269 264.576 -26.983 3.6 0.808 +2.402 2.2 0.31 7.1 1.2 0.26 4.6 GX 3+1 267.041 -26.589 4.1 2.299 +0.736 1.6 0.25 6.2 0.0 0.00 0.0 3A 1728-169 262.868 -16.894 6.1 8.537 +9.127 2.4 0.61 4.0 0.0 0.00 0.0 4U 1735-444 264.797 -44.454 5.1 346.071 -7.028 16.7 3.46 4.8 0.0 0.00 0.0 IGR J17597-2201 269.966 -22.079 5.2 7.537 +0.724 1.6 0.34 4.7 0.0 0.00 0.0JEM-X

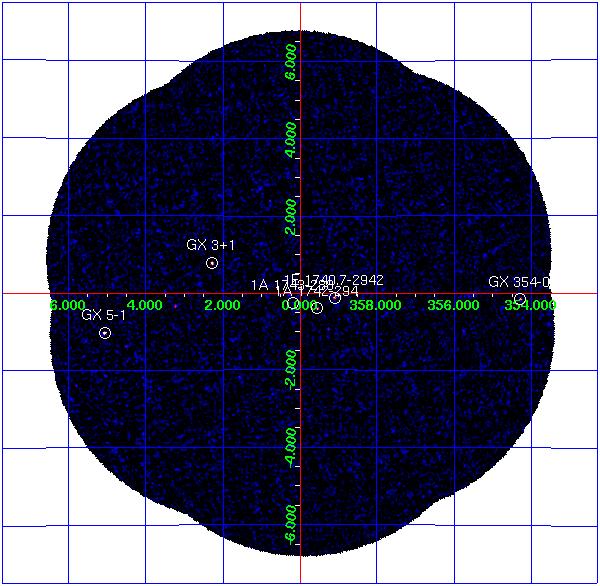

JEM-X significance mosaic images. Left: 3-10 keV. Right: 10-25 keV.Note: Sources labelled were detected with in the 3-10 keV image > 10σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with
mosaic_spec
, in two bands: A = 3-10 keV (1 Crab ~ 88 cps); B = 10-25 keV (1 Crab ~ 32 cps).NOTES: Fluxes for light curves are extracted from the images using
mosaic_spec
; The object marked as SLX 1744-299_300 is used to indicate two low-mass x-ray binaries separated by 2.7 arcminutes, SLX 1744-299 and SLX 1744-300; the position for SLX 1744-299 is used, although it can not be ruled out that SLX 1744-300 may dominate the emission some of the time.
JEM-X Detected Sources in 3-10 keV (A) and 10-25 keV (B).Source Name RA dec l b A(cps) +/- B(cps) +/- ==================== ======== ======== ======== ======== ====== ===== ====== ===== 1A 1743-288 266.761 -28.883 0.207 -0.238 3.7 0.37 0.0 0.00 1E 1740.7-2942 265.978 -29.745 359.116 -0.106 2.4 0.42 1.1 0.22 GX 354-0 262.989 -33.835 354.302 -0.150 12.3 1.34 3.9 0.90 1A 1742-294 266.523 -29.515 359.559 -0.389 4.4 0.32 0.9 0.18 GX 3+1 266.983 -26.564 2.294 +0.794 15.6 0.51 1.9 0.25 GX 5-1 270.284 -25.079 5.077 -1.019 93.4 2.07 7.2 0.87
