INTEGRAL Galactic Bulge Monitoring Revolution 0410: Observation start 2006-02-20 = MJD 53786
Total Observation GTI = 12096 seconds
ISGRI

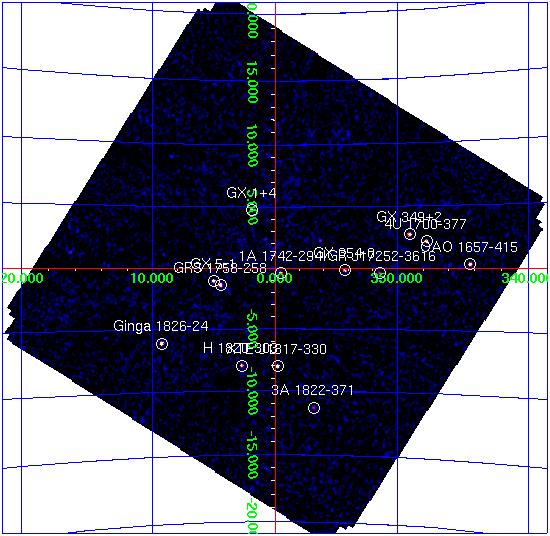

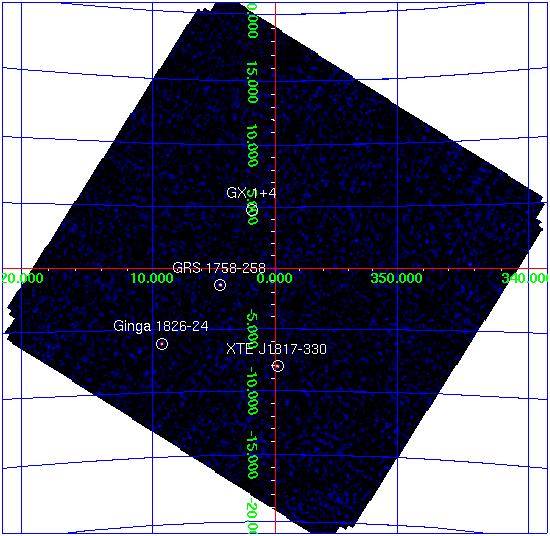

ISGRI significance mosaic images. Left: ISGRI 18-40 keV. Right: 40-100 keVSources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of
OSA7
, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 206 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.NOTES: The table is constructed from the
isgri_mosa_res.fits
file - fluxes in the mosaic output are known to be systematically ~10% lower than in the ScW light-curves (see known issues). The systematic noise increases towards the edge of the field of view andNEW
sources < 6σ towards the border of the image may be spurious.
ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)Source Name RA dec +/- l b A(cps) +/- sig B(cps) +/- sig ==================== ======== ======= === ======== ======== ====== ===== ===== ====== ===== ===== GX 1+4 263.005 -24.748 0.8 1.934 +4.797 12.1 0.30 40.6 0.0 0.00 0.0 GRS 1758-258 270.303 -25.750 1.0 4.502 -1.366 10.2 0.31 33.1 6.2 0.25 24.3 XTE J1817-330 274.427 -33.022 0.9 359.813 -7.994 13.6 0.38 35.8 6.5 0.31 21.3 GX 349+2 256.430 -36.430 1.0 349.095 +2.748 16.8 0.51 32.9 0.0 0.00 0.0 Ginga 1826-24 277.365 -23.801 1.0 9.268 -6.087 17.3 0.54 32.2 7.3 0.43 17.0 GX 5-1 270.294 -25.084 1.1 5.078 -1.029 8.2 0.29 27.8 0.0 0.00 0.0 OAO 1657-415 255.196 -41.657 1.1 344.364 +0.323 36.5 1.32 27.7 7.9 1.00 7.9 1A 1742-294 266.523 -29.519 1.2 359.556 -0.391 6.5 0.26 25.2 1.8 0.22 8.2 GX 354-0 262.998 -33.845 1.2 354.298 -0.162 7.7 0.30 25.7 0.0 0.00 0.0 4U 1700-377 255.990 -37.845 1.3 347.756 +2.171 13.8 0.58 23.7 2.7 0.46 5.9 H 1820-303 275.925 -30.384 1.4 2.770 -7.928 8.3 0.42 20.0 0.0 0.00 0.0 IGR J17252-3616 261.322 -36.289 2.0 351.503 -0.374 5.5 0.41 13.3 0.0 0.00 0.0 3A 1822-371 276.454 -37.103 2.4 356.855 -11.296 6.1 0.53 11.3 0.0 0.00 0.0 4U 1722-30 261.891 -30.816 2.7 356.309 +2.288 3.1 0.32 9.7 1.3 0.26 4.8 GX 17+2 273.966 -14.061 3.1 16.392 +1.300 17.0 2.03 8.4 0.0 0.00 0.0 SLX 1735-269 264.589 -26.982 3.7 0.815 +2.393 2.2 0.32 7.0 0.0 0.00 0.0 SLX 1744-299_300 266.810 -29.989 3.2 359.283 -0.849 2.2 0.27 8.0 0.0 0.00 0.0 GX 3+1 267.003 -26.567 3.8 2.300 +0.777 2.1 0.32 6.7 0.0 0.00 0.0 IGR J17456-2901 266.401 -29.008 0.0 359.937 -0.034 1.4 0.00 5.6 0.0 0.00 0.0 3A 1728-169 262.891 -16.995 3.8 8.462 +9.055 4.3 0.64 6.7 0.0 0.00 0.0 GX 13+1 273.521 -17.136 4.5 13.485 +0.209 4.0 0.74 5.5 0.0 0.00 0.0 GX 9+1 270.430 -20.533 4.4 9.094 +1.114 2.3 0.41 5.7 0.0 0.00 0.0 1E 1743.1-2843 266.588 -28.679 5.3 0.303 -0.003 1.2 0.25 4.6 0.0 0.00 0.0 Oph Cluster 258.149 -23.417 6.0 0.552 +9.218 1.8 0.45 4.1 0.0 0.00 0.0 IGR J18193-2542 274.846 -25.802 5.9 6.426 -4.978 1.6 0.00 4.1 0.0 0.00 0.0 SLX 1737-282 265.107 -28.350 6.7 359.900 +1.277 1.0 0.27 3.6 0.0 0.00 0.0JEM-X

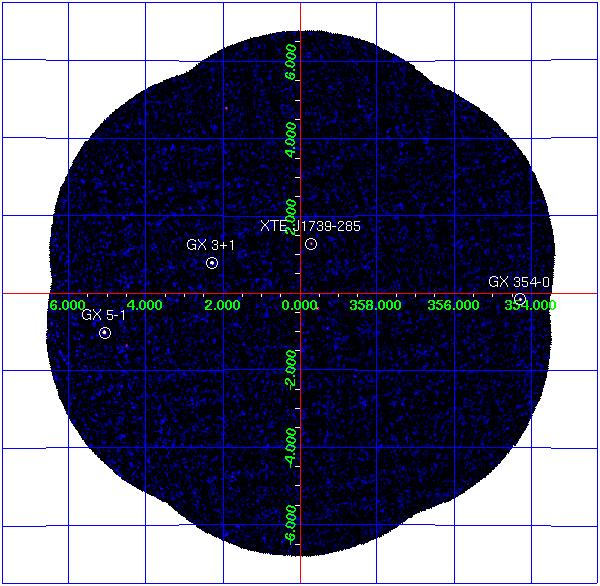

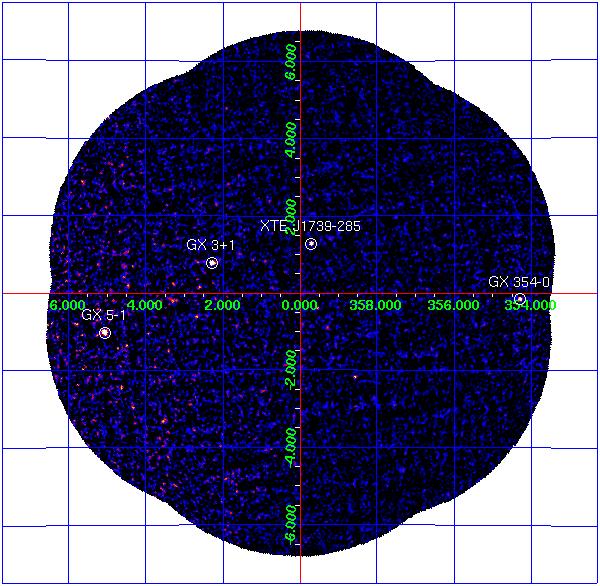

JEM-X significance mosaic images. Left: 3-10 keV. Right: 10-25 keV.Note: Sources labelled were detected with in the 3-10 keV image > 10σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with
mosaic_spec
, in two bands: A = 3-10 keV (1 Crab ~ 88 cps); B = 10-25 keV (1 Crab ~ 32 cps).NOTES: Fluxes for light curves are extracted from the images using
mosaic_spec
; The object marked as SLX 1744-299_300 is used to indicate two low-mass x-ray binaries separated by 2.7 arcminutes, SLX 1744-299 and SLX 1744-300; the position for SLX 1744-299 is used, although it can not be ruled out that SLX 1744-300 may dominate the emission some of the time.
JEM-X Detected Sources in 3-10 keV (A) and 10-25 keV (B).Source Name RA dec l b A(cps) +/- B(cps) +/- ==================== ======== ======== ======== ======== ====== ===== ====== ===== XTE J1739-285 264.975 -28.496 359.714 +1.298 6.5 0.42 0.7 0.21 GX 354-0 262.989 -33.835 354.302 -0.150 31.4 1.66 6.7 0.92 GX 3+1 266.983 -26.564 2.294 +0.794 25.0 0.58 3.5 0.29 GX 5-1 270.284 -25.079 5.077 -1.019 98.6 2.24 11.4 0.96
