INTEGRAL Galactic Bulge Monitoring

Revolution 0419: Observation start 2006-03-19 = MJD 53813

Total Observation GTI = 12277 seconds


ISGRI

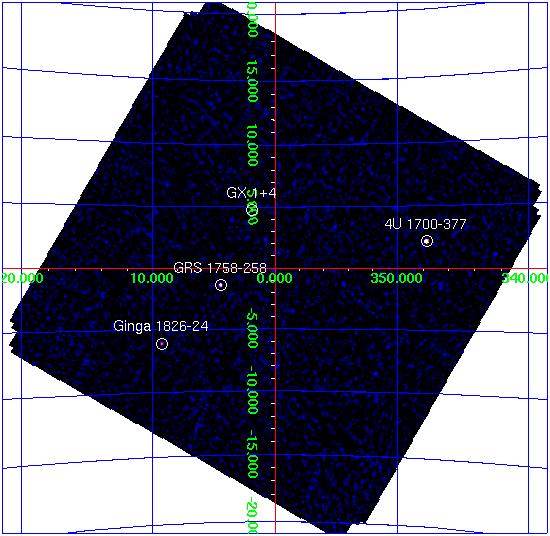

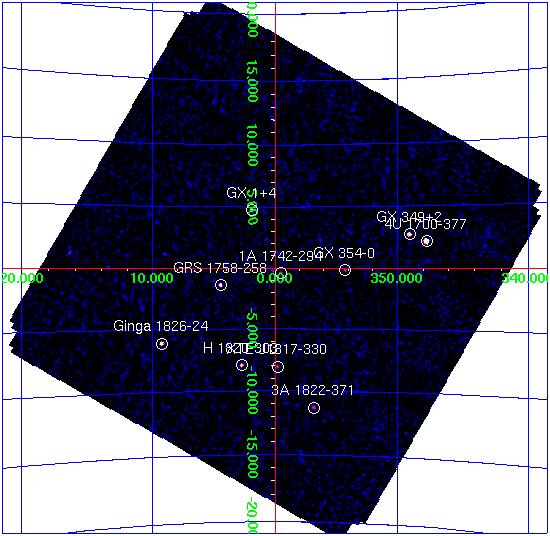

ISGRI significance mosaic images. Left: ISGRI 18-40 keV. Right: 40-100 keV

Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA7, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 206 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.

NOTES: The table is constructed from the isgri_mosa_res.fits file - fluxes in the mosaic output are known to be systematically ~10% lower than in the ScW light-curves (see known issues). The systematic noise increases towards the edge of the field of view and NEW sources < 6σ towards the border of the image may be spurious.


ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)

Source Name             RA       dec   +/-    l        b     A(cps)  +/-   sig  B(cps)  +/-   sig
==================== ========  ======= === ======== ======== ====== ===== ===== ====== ===== =====
4U 1700-377           255.992  -37.839 0.4  347.761   +2.174   80.9  0.60 135.0   24.3  0.46  52.5
GRS 1758-258          270.299  -25.742 0.9    4.507   -1.358   10.2  0.30  34.1    6.7  0.24  27.4
GX 349+2              256.438  -36.421 1.0  349.107   +2.748   17.0  0.52  32.5    0.0  0.00   0.0
GX 1+4                263.010  -24.748 0.9    1.935   +4.792   11.2  0.33  33.7    0.0  0.00   0.0
Ginga 1826-24         277.367  -23.801 1.0    9.269   -6.089   17.6  0.54  32.6    6.1  0.42  14.6
H 1820-303            275.904  -30.365 1.3    2.779   -7.904    9.2  0.40  23.0    0.0  0.00   0.0
1A 1742-294           266.516  -29.514 1.7  359.557   -0.384    4.6  0.27  17.0    1.4  0.23   6.2
XTE J1817-330         274.470  -33.022 1.9  359.830   -8.026    5.7  0.40  14.3    1.8  0.32   5.5
3A 1822-371           276.429  -37.098 2.0  356.851  -11.276    7.4  0.55  13.4    0.0  0.00   0.0
GX 354-0              262.944  -33.843 2.0  354.274   -0.124    4.6  0.33  14.0    0.0  0.00   0.0
1A 1743-288           266.709  -28.811 2.9    0.245   -0.163    2.4  0.26   9.1    0.0  0.00   0.0
GX 17+2               274.059  -14.026 2.8   16.466   +1.237   18.8  2.02   9.3    0.0  0.00   0.0
GX 3+1                266.966  -26.559 3.7    2.290   +0.809    1.9  0.28   6.8    0.0  0.00   0.0
4U 1722-30            261.892  -30.801 3.7  356.323   +2.296    2.2  0.33   6.9    0.0  0.00   0.0
SLX 1735-269          264.568  -27.054 3.9    0.744   +2.371    2.0  0.31   6.5    1.5  0.26   5.7
GX 9+1                270.348  -20.581 3.6    9.015   +1.158    2.8  0.40   7.2    0.0  0.00   0.0
GX 5-1                270.281  -25.114 4.1    5.045   -1.033    2.1  0.33   6.2    0.0  0.00   0.0
SLX 1744-299_300      266.817  -30.043 3.7  359.240   -0.882    2.2  0.31   6.9    0.0  0.00   0.0
GX 13+1               273.616  -17.163 3.7   13.505   +0.116    5.7  0.82   6.9    0.0  0.00   0.0
XTE J1739-285         265.015  -28.444 4.4  359.777   +1.296    1.6  0.28   5.7    1.1  0.24   4.5
XB 1832-330           278.910  -33.018 4.8    1.498  -11.365    2.8  0.55   5.1    2.0  0.44   4.4
Swift J174535.5-2901  266.305  -29.007 0.0  359.894   +0.037    1.1  0.00   4.4    0.0  0.00   0.0
AX J1749.1-2733       267.328  -27.537 5.3    1.618   +0.029    1.5  0.33   4.7    0.0  0.00   0.0
IGR J17252-3616       261.250  -36.179 0.0  351.561   -0.264    1.7  0.00   4.2    0.0  0.00   0.0
IGR J17497-2821       267.521  -28.344 6.3    1.013   -0.533    1.1  0.00   3.8    0.0  0.00   0.0
IGR J17475-2822       266.867  -28.430 0.0    0.643   -0.084    1.0  0.00   3.8    0.0  0.00   0.0
IGR J17354-3255       263.912  -32.988 6.0  355.431   -0.336    1.4  0.35   4.0    0.0  0.00   0.0
NEW_1                 257.146  -17.414 3.9    5.035  +13.414    4.9  0.76   6.5    0.0  0.00   0.0

JEM-X

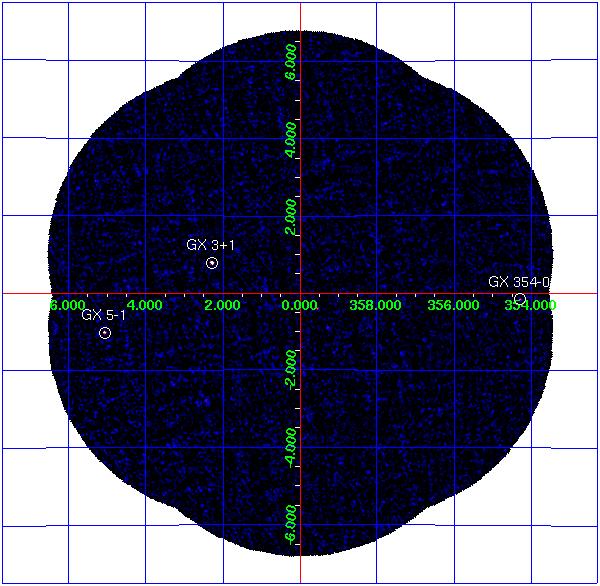

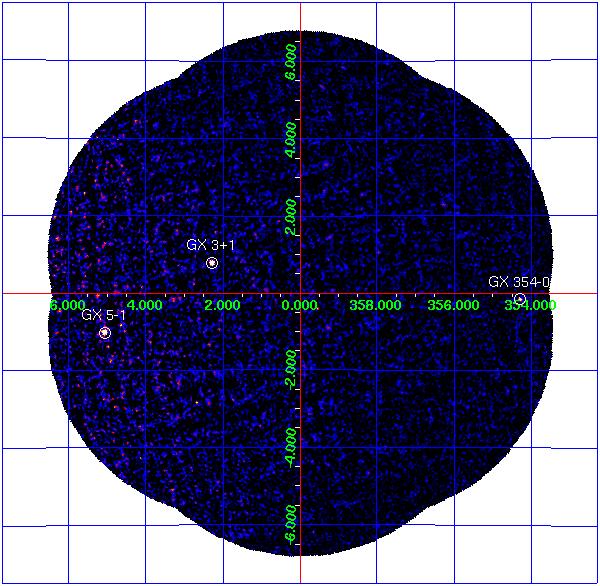

JEM-X significance mosaic images. Left: 3-10 keV. Right: 10-25 keV.

Note: Sources labelled were detected with in the 3-10 keV image > 10σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with mosaic_spec, in two bands: A = 3-10 keV (1 Crab ~ 88 cps); B = 10-25 keV (1 Crab ~ 32 cps).

NOTES: Fluxes for light curves are extracted from the images using mosaic_spec; The object marked as SLX 1744-299_300 is used to indicate two low-mass x-ray binaries separated by 2.7 arcminutes, SLX 1744-299 and SLX 1744-300; the position for SLX 1744-299 is used, although it can not be ruled out that SLX 1744-300 may dominate the emission some of the time.


JEM-X Detected Sources in 3-10 keV (A) and 10-25 keV (B).

Source Name             RA      dec       l        b     A(cps)  +/-  B(cps)  +/-
==================== ======== ======== ======== ======== ====== ===== ====== =====
GX 354-0              262.989  -33.835  354.302   -0.150   13.8  1.39    2.8  0.90
GX 3+1                266.983  -26.564    2.294   +0.794   28.0  0.57    4.3  0.29
GX 5-1                270.284  -25.079    5.077   -1.019   77.3  2.02    5.5  0.81
