INTEGRAL Galactic Bulge Monitoring Revolution 0472: Observation start 2006-08-25 = MJD 53972
Total Observation GTI = 12319 seconds
ISGRI

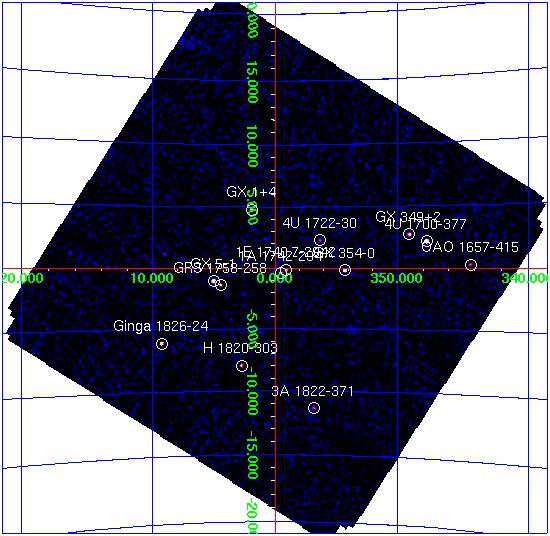

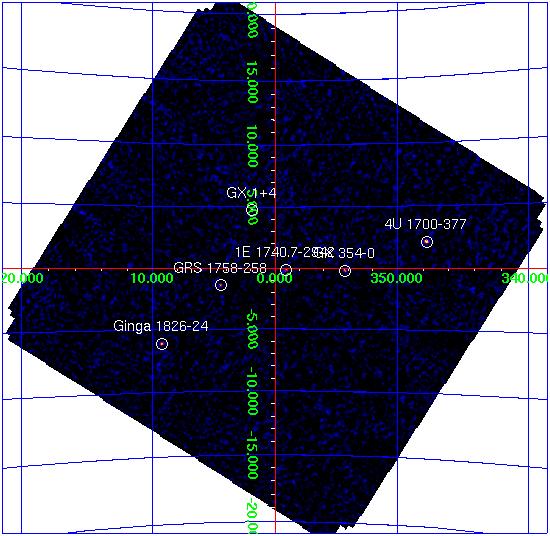

ISGRI significance mosaic images. Left: ISGRI 18-40 keV. Right: 40-100 keVSources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of
OSA7
, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 206 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.NOTES: The table is constructed from the
isgri_mosa_res.fits
file - fluxes in the mosaic output are known to be systematically ~10% lower than in the ScW light-curves (see known issues). The systematic noise increases towards the edge of the field of view andNEW
sources < 6σ towards the border of the image may be spurious.
ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)Source Name RA dec +/- l b A(cps) +/- sig B(cps) +/- sig ==================== ======== ======= === ======== ======== ====== ===== ===== ====== ===== ===== 4U 1700-377 255.987 -37.846 0.6 347.753 +2.172 36.6 0.62 58.9 9.8 0.47 20.8 GX 5-1 270.289 -25.085 0.7 5.075 -1.025 16.7 0.30 54.9 0.0 0.00 0.0 GX 354-0 262.995 -33.835 0.7 354.304 -0.154 16.0 0.32 50.8 4.0 0.25 15.6 GX 1+4 262.999 -24.745 0.8 1.933 +4.803 13.7 0.31 44.5 0.0 0.00 0.0 Ginga 1826-24 277.367 -23.804 1.0 9.266 -6.091 16.5 0.55 30.1 6.5 0.42 15.5 1A 1742-294 266.520 -29.519 1.3 359.554 -0.390 6.0 0.26 22.8 1.7 0.00 7.6 GX 349+2 256.430 -36.414 1.3 349.108 +2.757 12.1 0.55 22.0 0.0 0.00 0.0 GRS 1758-258 270.314 -25.745 1.3 4.512 -1.371 6.9 0.32 21.7 3.5 0.26 13.8 1E 1740.7-2942 265.996 -29.738 1.4 359.130 -0.115 5.6 0.28 20.1 2.8 0.23 12.2 H 1820-303 275.928 -30.370 1.4 2.783 -7.924 8.7 0.42 20.5 0.0 0.00 0.0 OAO 1657-415 255.198 -41.671 1.8 344.355 +0.313 22.5 1.47 15.3 4.6 1.03 4.4 3A 1822-371 276.473 -37.126 2.2 356.841 -11.320 7.0 0.56 12.6 0.0 0.00 0.0 4U 1722-30 261.876 -30.794 2.2 356.320 +2.311 4.1 0.33 12.4 1.2 0.27 4.6 GX 3+1 266.978 -26.531 3.1 2.319 +0.815 2.6 0.31 8.4 0.0 0.00 0.0 IGR J17252-3616 261.327 -36.289 3.4 351.506 -0.377 3.2 0.43 7.4 0.0 0.00 0.0 GX 17+2 274.050 -14.068 3.8 16.425 +1.225 14.3 2.13 6.7 0.0 0.00 0.0 GX 9+1 270.359 -20.545 3.4 9.051 +1.166 3.1 0.42 7.6 0.0 0.00 0.0 SLX 1744-299_300 266.898 -30.023 3.8 359.294 -0.931 1.8 0.28 6.6 0.0 0.00 0.0 XB 1832-330 278.998 -32.988 3.8 1.557 -11.420 3.8 0.57 6.6 1.6 0.44 3.7 SLX 1735-269 264.514 -26.998 4.4 0.765 +2.441 2.0 0.35 5.7 1.3 0.29 4.6 3A 1728-169 262.893 -16.993 4.2 8.464 +9.055 4.0 0.67 5.9 0.0 0.00 0.0 GX 13+1 273.643 -17.160 4.8 13.519 +0.095 3.9 0.76 5.2 0.0 0.00 0.0 1A 1743-288 266.777 -28.925 0.0 0.179 -0.272 1.2 0.00 4.6 0.0 0.00 0.0 IGR J17456-2901 266.401 -28.925 5.1 0.007 +0.008 1.3 0.26 4.9 0.0 0.00 0.0 GRS 1734-292 264.392 -29.112 5.3 358.921 +1.402 1.3 0.29 4.6 0.0 0.00 0.0 4U 1735-444 264.704 -44.385 4.9 346.095 -6.936 16.0 3.18 5.0 0.0 0.00 0.0 XTE J1710-281 257.491 -28.141 0.0 356.318 +6.959 1.5 0.00 3.8 0.0 0.00 0.0 IGR J17597-2201 269.958 -21.953 6.1 7.643 +0.793 1.6 0.39 4.0 0.0 0.00 0.0 IGR J17507-2856 267.811 -28.918 0.0 0.651 -1.045 1.0 0.00 3.7 0.0 0.00 0.0JEM-X

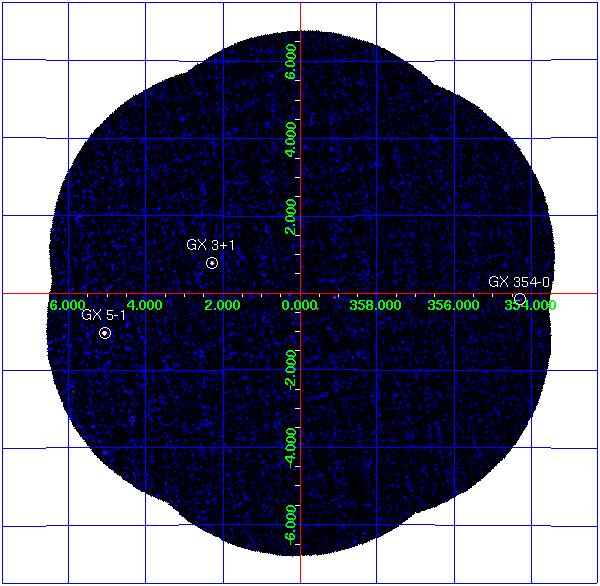

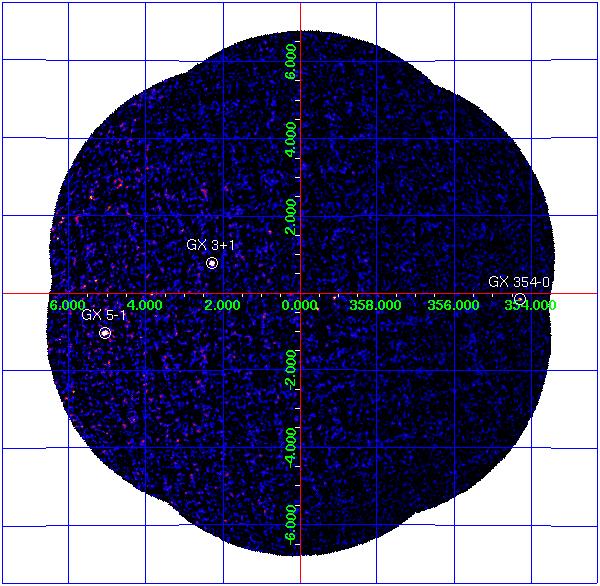

JEM-X significance mosaic images. Left: 3-10 keV. Right: 10-25 keV.Note: Sources labelled were detected with in the 3-10 keV image > 10σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with
mosaic_spec
, in two bands: A = 3-10 keV (1 Crab ~ 88 cps); B = 10-25 keV (1 Crab ~ 32 cps).NOTES: Fluxes for light curves are extracted from the images using
mosaic_spec
; The object marked as SLX 1744-299_300 is used to indicate two low-mass x-ray binaries separated by 2.7 arcminutes, SLX 1744-299 and SLX 1744-300; the position for SLX 1744-299 is used, although it can not be ruled out that SLX 1744-300 may dominate the emission some of the time.
JEM-X Detected Sources in 3-10 keV (A) and 10-25 keV (B).Source Name RA dec l b A(cps) +/- B(cps) +/- ==================== ======== ======== ======== ======== ====== ===== ====== ===== GX 354-0 262.989 -33.835 354.302 -0.150 7.8 1.21 1.7 0.78 GX 3+1 266.983 -26.564 2.294 +0.794 27.2 0.55 3.7 0.29 GX 5-1 270.284 -25.079 5.077 -1.019 104.6 2.26 19.1 1.08
