INTEGRAL Galactic Bulge MonitoringRevolution 0473: Observation start 2006-08-28 = MJD 53975
Total Observation GTI = 12285 seconds
ISGRI

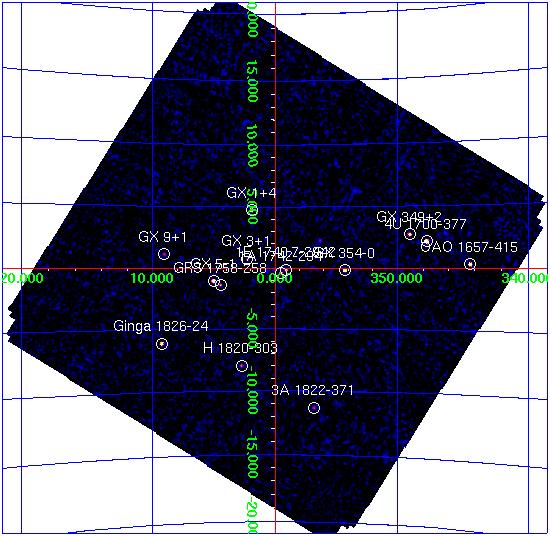

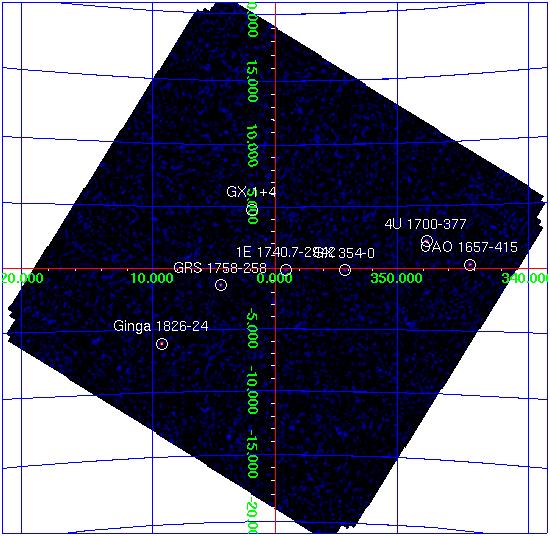

ISGRI significance mosaic images. Left: ISGRI 18-40 keV. Right: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA7, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 206 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.
NOTES: The table is constructed from the isgri_mosa_res.fits file - fluxes in the mosaic output are known to be systematically ~10% lower than in the ScW light-curves (see known issues). The systematic noise increases towards the edge of the field of view and NEW sources < 6σ towards the border of the image may be spurious.
ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)
Source Name RA dec +/- l b A(cps) +/- sig B(cps) +/- sig
==================== ======== ======= === ======== ======== ====== ===== ===== ====== ===== =====
GX 5-1 270.290 -25.085 0.7 5.075 -1.026 19.3 0.36 53.5 0.0 0.00 0.0
4U 1700-377 255.984 -37.849 0.7 347.750 +2.172 39.0 0.74 52.5 9.8 0.55 17.9
GX 1+4 263.010 -24.739 0.8 1.943 +4.798 14.7 0.36 40.6 0.0 0.00 0.0
GX 354-0 262.990 -33.833 0.8 354.304 -0.150 12.9 0.33 39.0 2.6 0.26 10.0
OAO 1657-415 255.195 -41.657 0.9 344.364 +0.324 56.6 1.59 35.7 15.8 1.10 14.4
Ginga 1826-24 277.378 -23.812 1.0 9.263 -6.103 17.4 0.56 30.9 7.4 0.42 17.5
GX 349+2 256.420 -36.431 1.1 349.089 +2.753 15.6 0.59 26.5 0.0 0.00 0.0
1A 1742-294 266.512 -29.530 1.3 359.542 -0.389 6.2 0.27 22.9 1.5 0.22 6.8
1E 1740.7-2942 265.980 -29.739 1.5 359.122 -0.104 5.3 0.28 18.5 2.5 0.23 10.6
GRS 1758-258 270.311 -25.754 1.7 4.503 -1.373 6.1 0.37 16.4 4.2 0.30 14.3
H 1820-303 275.946 -30.373 2.1 2.788 -7.940 5.9 0.45 13.0 0.0 0.00 0.0
3A 1822-371 276.426 -37.143 2.4 356.809 -11.293 6.9 0.62 11.1 0.0 0.00 0.0
GX 9+1 270.391 -20.543 2.3 9.067 +1.142 5.5 0.47 11.8 0.0 0.00 0.0
GX 3+1 266.979 -26.548 2.6 2.305 +0.805 3.3 0.33 10.0 0.0 0.00 0.0
4U 1722-30 261.939 -30.801 3.2 356.345 +2.262 2.8 0.35 8.0 0.0 0.00 0.0
SLX 1744-299_300 266.845 -30.023 3.6 359.270 -0.892 2.0 0.28 7.1 0.0 0.00 0.0
SLX 1735-269 264.570 -26.980 3.7 0.807 +2.409 2.3 0.34 6.8 1.6 0.27 5.8
1E 1742.9-2849 266.579 -28.884 3.8 0.124 -0.103 1.8 0.27 6.7 0.0 0.00 0.0
GX 17+2 274.004 -14.048 3.4 16.421 +1.274 13.5 1.77 7.6 0.0 0.00 0.0
3A 1728-169 262.958 -16.988 5.7 8.502 +9.005 3.1 0.73 4.3 0.0 0.00 0.0
IGR J17354-3255 263.902 -32.956 5.2 355.454 -0.312 1.6 0.34 4.7 0.0 0.00 0.0
GX 13+1 273.663 -17.238 5.0 13.460 +0.041 3.9 0.77 5.0 0.0 0.00 0.0
IGR J18027-2016 270.731 -20.296 0.0 9.440 +0.986 2.1 0.00 4.2 0.0 0.00 0.0
XB 1832-330 278.821 -32.917 6.3 1.559 -11.255 2.3 0.60 3.9 0.0 0.00 0.0
IGR J17597-2201 269.938 -21.927 5.2 7.656 +0.821 1.8 0.39 4.8 0.0 0.00 0.0
XTE J1710-281 257.514 -28.192 5.6 356.289 +6.913 2.1 0.48 4.4 0.0 0.00 0.0
SLX 1737-282 265.059 -28.272 6.1 359.943 +1.354 1.2 0.29 4.0 0.0 0.00 0.0
SAX J1818.6-1703 274.654 -16.861 6.8 14.243 -0.613 3.6 1.02 3.5 0.0 0.00 0.0
GRS 1734-292 264.442 -29.227 7.2 358.847 +1.303 1.0 0.30 3.3 0.0 0.00 0.0
Oph Cluster 258.062 -23.288 0.0 0.613 +9.357 1.7 0.00 3.6 0.0 0.00 0.0
IGR J17200-3116 260.104 -31.338 7.0 355.016 +3.260 1.2 0.36 3.4 0.0 0.00 0.0
JEM-X

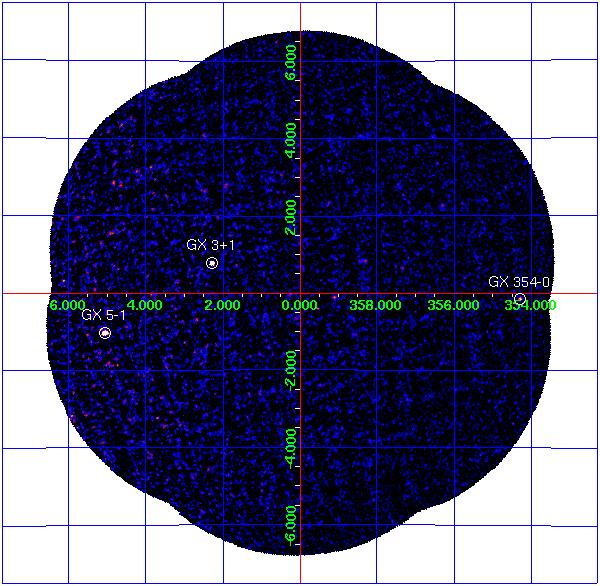

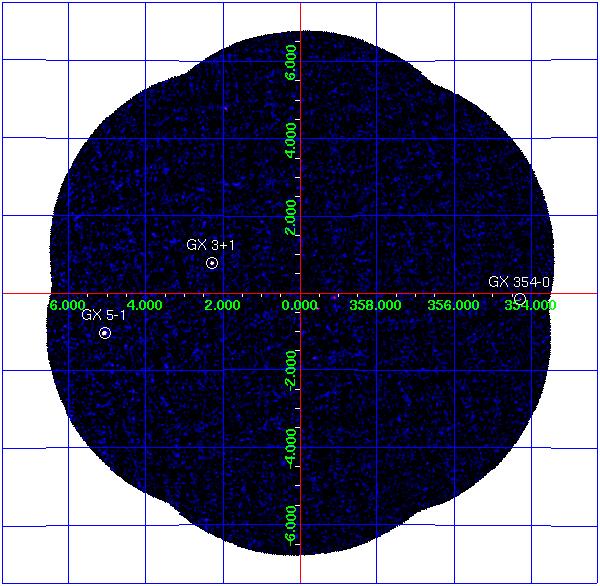

JEM-X significance mosaic images. Left: 3-10 keV. Right: 10-25 keV.
Note: Sources labelled were detected with in the 3-10 keV image > 10σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with mosaic_spec, in two bands: A = 3-10 keV (1 Crab ~ 88 cps); B = 10-25 keV (1 Crab ~ 32 cps).
NOTES: Fluxes for light curves are extracted from the images using mosaic_spec; The object marked as SLX 1744-299_300 is used to indicate two low-mass x-ray binaries separated by 2.7 arcminutes, SLX 1744-299 and SLX 1744-300; the position for SLX 1744-299 is used, although it can not be ruled out that SLX 1744-300 may dominate the emission some of the time.
JEM-X Detected Sources in 3-10 keV (A) and 10-25 keV (B).
Source Name RA dec l b A(cps) +/- B(cps) +/-
==================== ======== ======== ======== ======== ====== ===== ====== =====
GX 354-0 262.989 -33.835 354.302 -0.150 9.5 1.42 2.7 0.89
GX 3+1 266.983 -26.564 2.294 +0.794 24.4 0.56 3.4 0.29
GX 5-1 270.284 -25.079 5.077 -1.019 93.4 2.19 20.5 1.19
Go back to Bulge home page
Revolution 0473: Observation start 2006-08-28 = MJD 53975
Total Observation GTI = 12285 seconds
ISGRI
ISGRI significance mosaic images. Left: ISGRI 18-40 keV. Right: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA7, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 206 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.
NOTES: The table is constructed from the isgri_mosa_res.fits file - fluxes in the mosaic output are known to be systematically ~10% lower than in the ScW light-curves (see known issues). The systematic noise increases towards the edge of the field of view and NEW sources < 6σ towards the border of the image may be spurious.
ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)
Source Name RA dec +/- l b A(cps) +/- sig B(cps) +/- sig ==================== ======== ======= === ======== ======== ====== ===== ===== ====== ===== ===== GX 5-1 270.290 -25.085 0.7 5.075 -1.026 19.3 0.36 53.5 0.0 0.00 0.0 4U 1700-377 255.984 -37.849 0.7 347.750 +2.172 39.0 0.74 52.5 9.8 0.55 17.9 GX 1+4 263.010 -24.739 0.8 1.943 +4.798 14.7 0.36 40.6 0.0 0.00 0.0 GX 354-0 262.990 -33.833 0.8 354.304 -0.150 12.9 0.33 39.0 2.6 0.26 10.0 OAO 1657-415 255.195 -41.657 0.9 344.364 +0.324 56.6 1.59 35.7 15.8 1.10 14.4 Ginga 1826-24 277.378 -23.812 1.0 9.263 -6.103 17.4 0.56 30.9 7.4 0.42 17.5 GX 349+2 256.420 -36.431 1.1 349.089 +2.753 15.6 0.59 26.5 0.0 0.00 0.0 1A 1742-294 266.512 -29.530 1.3 359.542 -0.389 6.2 0.27 22.9 1.5 0.22 6.8 1E 1740.7-2942 265.980 -29.739 1.5 359.122 -0.104 5.3 0.28 18.5 2.5 0.23 10.6 GRS 1758-258 270.311 -25.754 1.7 4.503 -1.373 6.1 0.37 16.4 4.2 0.30 14.3 H 1820-303 275.946 -30.373 2.1 2.788 -7.940 5.9 0.45 13.0 0.0 0.00 0.0 3A 1822-371 276.426 -37.143 2.4 356.809 -11.293 6.9 0.62 11.1 0.0 0.00 0.0 GX 9+1 270.391 -20.543 2.3 9.067 +1.142 5.5 0.47 11.8 0.0 0.00 0.0 GX 3+1 266.979 -26.548 2.6 2.305 +0.805 3.3 0.33 10.0 0.0 0.00 0.0 4U 1722-30 261.939 -30.801 3.2 356.345 +2.262 2.8 0.35 8.0 0.0 0.00 0.0 SLX 1744-299_300 266.845 -30.023 3.6 359.270 -0.892 2.0 0.28 7.1 0.0 0.00 0.0 SLX 1735-269 264.570 -26.980 3.7 0.807 +2.409 2.3 0.34 6.8 1.6 0.27 5.8 1E 1742.9-2849 266.579 -28.884 3.8 0.124 -0.103 1.8 0.27 6.7 0.0 0.00 0.0 GX 17+2 274.004 -14.048 3.4 16.421 +1.274 13.5 1.77 7.6 0.0 0.00 0.0 3A 1728-169 262.958 -16.988 5.7 8.502 +9.005 3.1 0.73 4.3 0.0 0.00 0.0 IGR J17354-3255 263.902 -32.956 5.2 355.454 -0.312 1.6 0.34 4.7 0.0 0.00 0.0 GX 13+1 273.663 -17.238 5.0 13.460 +0.041 3.9 0.77 5.0 0.0 0.00 0.0 IGR J18027-2016 270.731 -20.296 0.0 9.440 +0.986 2.1 0.00 4.2 0.0 0.00 0.0 XB 1832-330 278.821 -32.917 6.3 1.559 -11.255 2.3 0.60 3.9 0.0 0.00 0.0 IGR J17597-2201 269.938 -21.927 5.2 7.656 +0.821 1.8 0.39 4.8 0.0 0.00 0.0 XTE J1710-281 257.514 -28.192 5.6 356.289 +6.913 2.1 0.48 4.4 0.0 0.00 0.0 SLX 1737-282 265.059 -28.272 6.1 359.943 +1.354 1.2 0.29 4.0 0.0 0.00 0.0 SAX J1818.6-1703 274.654 -16.861 6.8 14.243 -0.613 3.6 1.02 3.5 0.0 0.00 0.0 GRS 1734-292 264.442 -29.227 7.2 358.847 +1.303 1.0 0.30 3.3 0.0 0.00 0.0 Oph Cluster 258.062 -23.288 0.0 0.613 +9.357 1.7 0.00 3.6 0.0 0.00 0.0 IGR J17200-3116 260.104 -31.338 7.0 355.016 +3.260 1.2 0.36 3.4 0.0 0.00 0.0
JEM-X
JEM-X significance mosaic images. Left: 3-10 keV. Right: 10-25 keV.
Note: Sources labelled were detected with in the 3-10 keV image > 10σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with mosaic_spec, in two bands: A = 3-10 keV (1 Crab ~ 88 cps); B = 10-25 keV (1 Crab ~ 32 cps).
NOTES: Fluxes for light curves are extracted from the images using mosaic_spec; The object marked as SLX 1744-299_300 is used to indicate two low-mass x-ray binaries separated by 2.7 arcminutes, SLX 1744-299 and SLX 1744-300; the position for SLX 1744-299 is used, although it can not be ruled out that SLX 1744-300 may dominate the emission some of the time.
JEM-X Detected Sources in 3-10 keV (A) and 10-25 keV (B).
Source Name RA dec l b A(cps) +/- B(cps) +/- ==================== ======== ======== ======== ======== ====== ===== ====== ===== GX 354-0 262.989 -33.835 354.302 -0.150 9.5 1.42 2.7 0.89 GX 3+1 266.983 -26.564 2.294 +0.794 24.4 0.56 3.4 0.29 GX 5-1 270.284 -25.079 5.077 -1.019 93.4 2.19 20.5 1.19
