INTEGRAL Galactic Bulge MonitoringRevolution 0607: Observation start 2007-10-02 = MJD 54375
Total Observation GTI = 21795 seconds
ISGRI

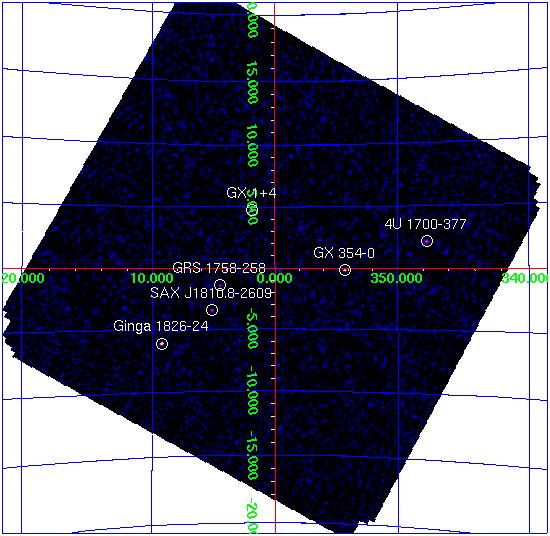

ISGRI significance mosaic images. Left: ISGRI 18-40 keV. Right: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA7, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 206 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.
NOTES: The table is constructed from the isgri_mosa_res.fits file - fluxes in the mosaic output are known to be systematically ~10% lower than in the ScW light-curves (see known issues). The systematic noise increases towards the edge of the field of view and NEW sources < 6σ towards the border of the image may be spurious.
ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)
Source Name RA dec +/- l b A(cps) +/- sig B(cps) +/- sig
==================== ======== ======= === ======== ======== ====== ===== ===== ====== ===== =====
GX 1+4 263.007 -24.744 0.6 1.938 +4.797 14.9 0.26 56.8 0.0 0.00 0.0
GX 354-0 262.995 -33.830 0.7 354.309 -0.151 14.7 0.27 53.6 4.1 0.22 18.6
Ginga 1826-24 277.363 -23.797 0.8 9.271 -6.084 18.9 0.44 42.5 7.4 0.34 21.6
GX 5-1 270.282 -25.083 0.8 5.073 -1.019 11.6 0.27 42.7 0.0 0.00 0.0
H 1820-303 275.914 -30.363 1.2 2.785 -7.911 9.3 0.37 25.5 0.0 0.00 0.0
4U 1700-377 255.991 -37.853 1.2 347.750 +2.165 14.8 0.60 24.5 5.8 0.45 12.7
SAX J1810.8-2609 272.686 -26.147 1.3 5.201 -3.430 6.5 0.29 22.6 3.0 0.23 12.9
GX 349+2 256.445 -36.427 1.5 349.105 +2.740 9.4 0.47 19.7 0.0 0.00 0.0
3A 1822-371 276.458 -37.097 1.8 356.862 -11.297 7.9 0.52 15.2 0.0 0.00 0.0
GX 3+1 266.990 -26.557 1.7 2.302 +0.792 4.1 0.25 16.6 0.0 0.00 0.0
GRS 1758-258 270.311 -25.748 1.9 4.507 -1.371 3.9 0.27 14.6 2.4 0.22 11.1
4U 1722-30 261.864 -30.807 2.1 356.304 +2.313 3.3 0.25 13.3 1.4 0.20 6.8
GX 17+2 273.999 -14.031 1.9 16.434 +1.286 20.8 1.41 14.7 0.0 0.00 0.0
GX 9+1 270.375 -20.518 2.3 9.082 +1.167 4.1 0.35 11.8 0.0 0.00 0.0
SLX 1744-299_300 266.879 -30.025 2.4 359.283 -0.918 2.8 0.26 11.1 0.0 0.00 0.0
SLX 1735-269 264.599 -26.986 2.8 0.816 +2.384 2.3 0.25 9.5 1.4 0.21 6.9
XB 1832-330 278.960 -33.034 3.8 1.501 -11.410 3.5 0.53 6.7 0.0 0.00 0.0
1A 1742-294 266.562 -29.543 0.0 359.553 -0.433 1.4 0.00 6.0 0.0 0.00 0.0
3A 1728-169 262.889 -16.953 3.9 8.497 +9.079 3.4 0.52 6.5 0.0 0.00 0.0
IGR J17456-2901 266.465 -29.050 0.0 359.931 -0.104 1.3 0.00 5.5 0.0 0.00 0.0
IGR J17200-3116 259.949 -31.287 0.0 354.982 +3.398 1.3 0.00 4.8 0.0 0.00 0.0
IGR J17252-3616 261.212 -36.235 5.0 351.498 -0.270 1.7 0.35 5.0 0.0 0.00 0.0
OAO 1657-415 255.299 -41.609 5.1 344.450 +0.292 7.6 1.56 4.9 0.0 0.00 0.0
GX 13+1 273.659 -17.198 0.0 13.493 +0.064 2.3 0.00 3.9 0.0 0.00 0.0
1E 1743.1-2843 266.558 -28.720 0.0 0.254 -0.002 1.0 0.00 3.9 0.0 0.00 0.0
IGR J17091-3624 257.320 -36.404 6.3 349.546 +2.190 1.7 0.00 3.8 0.0 0.00 0.0
NEW_1 258.441 -20.758 3.5 2.926 +10.511 3.2 0.43 7.3 0.0 0.00 0.0
NEW_2 269.631 -21.309 3.5 8.050 +1.377 2.2 0.31 7.2 0.0 0.00 0.0
JEM-X

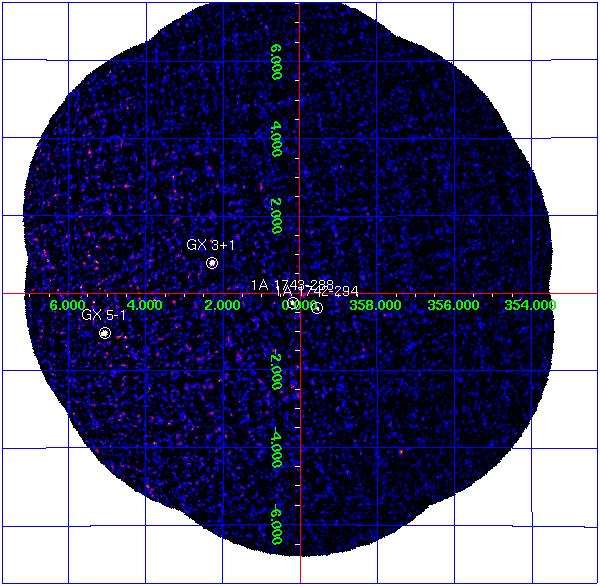

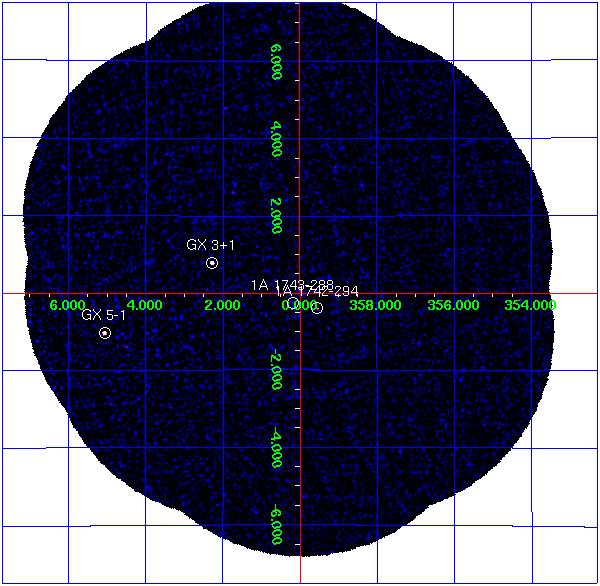

JEM-X significance mosaic images. Left: 3-10 keV. Right: 10-25 keV.
Note: Sources labelled were detected with in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with mosaic_spec, in two bands: A = 3-10 keV (1 Crab ~ 88 cps); B = 10-25 keV (1 Crab ~ 32 cps).
NOTE: The object marked as SLX 1744-299_300 is used to indicate two low-mass x-ray binaries separated by 2.7 arcminutes, SLX 1744-299 and SLX 1744-300; the position for SLX 1744-299 is used, although it can not be ruled out that SLX 1744-300 may dominate the emission some of the time.
JEM-X Detected Sources in 3-10 keV (A) and 10-25 keV (B).
Source Name RA dec l b A(cps) +/- B(cps) +/-
==================== ======== ======== ======== ======== ====== ===== ====== =====
1A 1743-288 266.761 -28.883 0.207 -0.238 4.7 0.37 0.4 0.18
1A 1742-294 266.523 -29.515 359.559 -0.389 3.3 0.31 0.6 0.16
GX 3+1 266.983 -26.564 2.294 +0.794 35.3 0.49 4.9 0.24
GX 5-1 270.284 -25.079 5.077 -1.019 97.8 1.61 12.5 0.70
