INTEGRAL Galactic Bulge Monitoring Revolution 0661: Observation start 2008-03-12T18:32 = MJD 54537.773
Total Observation GTI = 12450 seconds
ISGRI

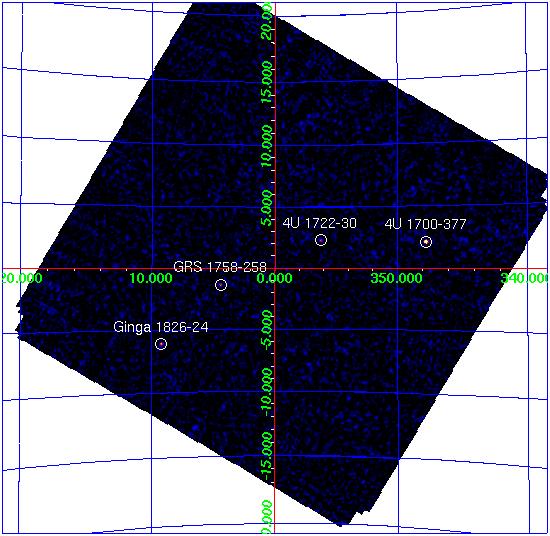

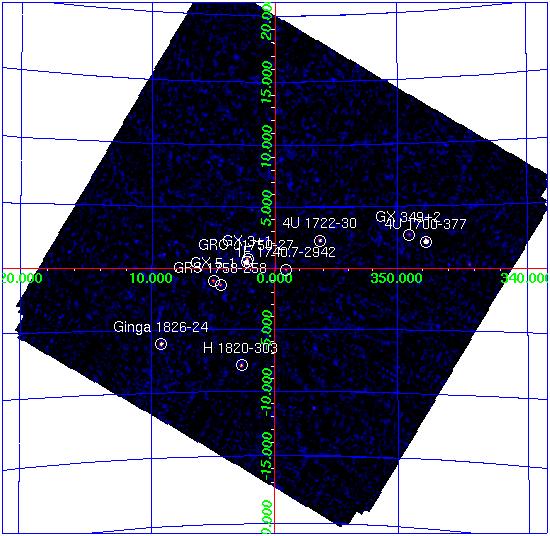

ISGRI significance mosaic images. Left: ISGRI 18-40 keV. Right: 40-100 keVSources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of
OSA7
, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 206 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.NOTES: The table is constructed from the
isgri_mosa_res.fits
file - fluxes in the mosaic output are known to be systematically ~10% lower than in the ScW light-curves (see known issues). The systematic noise increases towards the edge of the field of view andNEW
sources < 6σ towards the border of the image may be spurious.
ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)Source Name RA dec +/- l b A(cps) +/- sig B(cps) +/- sig ==================== ======== ======= === ======== ======== ====== ===== ===== ====== ===== ===== GRO J1750-27 267.296 -26.647 0.4 2.367 +0.511 32.0 0.31 104.4 1.3 0.25 5.2 4U 1700-377 255.985 -37.843 0.5 347.754 +2.175 56.9 0.67 85.3 16.1 0.52 30.9 Ginga 1826-24 277.367 -23.804 1.1 9.266 -6.090 17.4 0.65 26.8 7.6 0.50 15.0 4U 1722-30 261.889 -30.808 1.1 356.315 +2.294 8.7 0.33 26.8 3.3 0.27 12.1 H 1820-303 275.887 -30.357 1.4 2.779 -7.887 11.8 0.57 20.8 0.0 0.00 0.0 GRS 1758-258 270.301 -25.750 1.9 4.502 -1.364 5.2 0.35 14.9 3.6 0.28 12.8 GX 5-1 270.286 -25.081 1.8 5.076 -1.021 5.8 0.38 15.4 0.0 0.00 0.0 GX 3+1 266.962 -26.580 0.0 2.270 +0.801 4.4 0.00 14.1 0.0 0.00 0.0 1E 1740.7-2942 265.990 -29.751 2.2 359.116 -0.117 4.0 0.33 12.1 1.8 0.28 6.5 GX 349+2 256.425 -36.442 2.4 349.083 +2.744 6.0 0.55 11.0 0.0 0.00 0.0 OAO 1657-415 255.199 -41.649 2.6 344.372 +0.326 13.1 1.31 10.0 0.0 0.00 0.0 SLX 1735-269 264.585 -26.981 3.9 0.814 +2.397 2.0 0.30 6.6 1.2 0.26 4.7 GX 9+1 270.496 -20.486 4.0 9.165 +1.084 3.1 0.50 6.3 0.0 0.00 0.0 3A 1822-371 276.430 -37.124 3.1 356.827 -11.288 6.0 0.72 8.4 0.0 0.00 0.0 GX 354-0 262.983 -33.856 3.3 354.281 -0.157 2.6 0.33 7.8 0.0 0.00 0.0 GX 1+4 262.993 -24.751 3.7 1.925 +4.804 2.5 0.36 6.9 0.0 0.00 0.0 GX 17+2 273.967 -14.028 4.0 16.421 +1.314 17.8 2.85 6.2 0.0 0.00 0.0 GRS 1741.9-2853 266.366 -28.899 5.8 0.014 +0.048 1.3 0.30 4.2 0.0 0.00 0.0 IGR J17200-3116 260.008 -31.194 4.4 355.087 +3.410 1.9 0.33 5.7 0.0 0.00 0.0 XTE J1810-189 272.616 -19.051 5.0 11.392 +0.044 3.1 0.63 5.0 2.0 0.00 3.9 SLX 1744-299_300 266.880 -30.020 5.6 359.289 -0.916 1.5 0.35 4.3 0.0 0.00 0.0 GRS 1734-292 264.407 -29.214 5.4 358.842 +1.336 1.3 0.28 4.5 0.0 0.00 0.0 SAX J1750.8-2900 267.641 -29.136 5.5 0.387 -1.029 1.3 0.29 4.4 1.1 0.24 4.8 1A 1742-294 266.545 -29.545 0.0 359.543 -0.421 1.2 0.00 3.8 0.0 0.00 0.0 3A 1728-169 262.939 -16.866 5.8 8.598 +9.085 3.2 0.77 4.2 0.0 0.00 0.0JEM-X

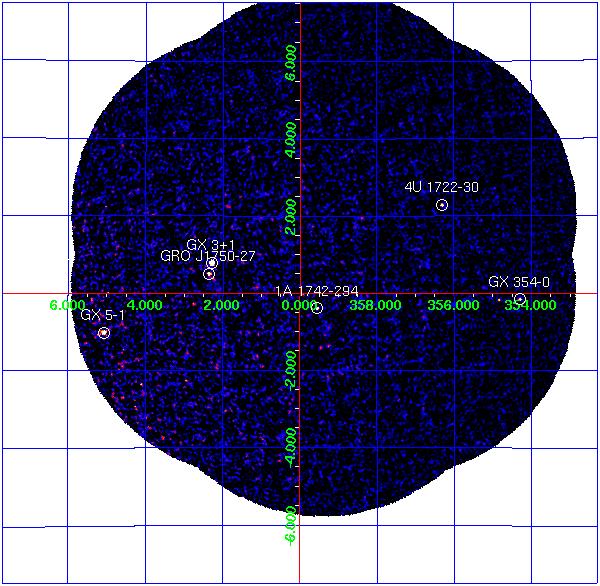

JEM-X significance mosaic images. Left: 3-10 keV. Right: 10-25 keV.Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with
mosaic_spec
, in two bands: A = 3-10 keV (1 Crab ~ 88 cps); B = 10-25 keV (1 Crab ~ 32 cps).NOTE: The object marked as SLX 1744-299_300 is used to indicate two low-mass x-ray binaries separated by 2.7 arcminutes, SLX 1744-299 and SLX 1744-300; the position for SLX 1744-299 is used, although it can not be ruled out that SLX 1744-300 may dominate the emission some of the time.
JEM-X Detected Sources in 3-10 keV (A) and 10-25 keV (B).Source Name RA dec l b A(cps) +/- B(cps) +/- ==================== ======== ======== ======== ======== ====== ===== ====== ===== 4U 1722-30 261.888 -30.802 356.320 +2.298 3.9 0.50 1.7 0.33 GX 354-0 262.989 -33.835 354.302 -0.150 7.0 1.01 1.6 0.93 1A 1742-294 266.523 -29.515 359.559 -0.389 3.9 0.38 1.1 0.24 GX 3+1 266.983 -26.564 2.294 +0.794 41.2 0.67 5.9 0.36 GX 5-1 270.284 -25.079 5.077 -1.019 96.1 4.57 8.3 1.99 GRO J1750-27 267.303 -26.643 2.373 +0.508 9.8 0.65 7.7 0.39
