INTEGRAL Galactic Bulge MonitoringRevolution 0664: Observation start 2008-03-22T18:10 = MJD 54547.758
Total Observation GTI = 13987 seconds
ISGRI

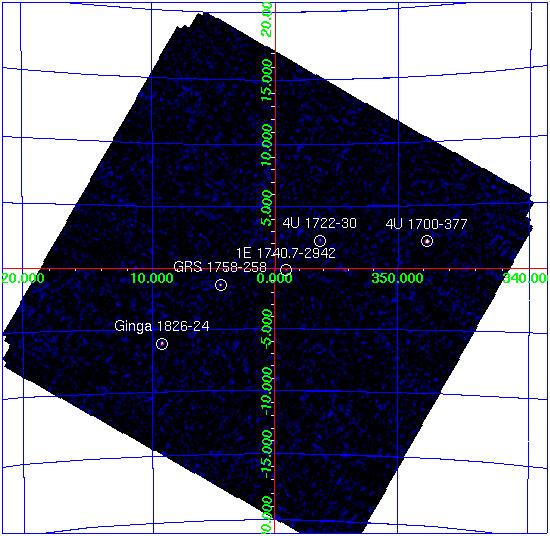

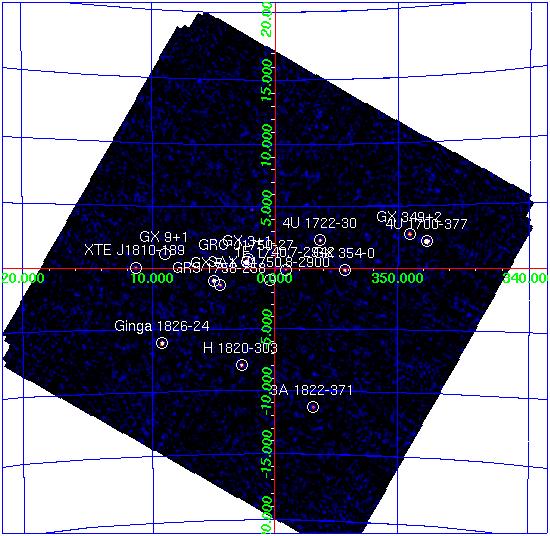

ISGRI significance mosaic images. Left: ISGRI 18-40 keV. Right: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA7, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 206 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.
NOTES: The table is constructed from the isgri_mosa_res.fits file - fluxes in the mosaic output are known to be systematically ~10% lower than in the ScW light-curves (see known issues). The systematic noise increases towards the edge of the field of view and NEW sources < 6σ towards the border of the image may be spurious.
ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)
Source Name RA dec +/- l b A(cps) +/- sig B(cps) +/- sig
==================== ======== ======= === ======== ======== ====== ===== ===== ====== ===== =====
GRO J1750-27 267.302 -26.646 0.5 2.370 +0.507 24.7 0.28 87.8 0.9 0.23 3.9
4U 1700-377 255.990 -37.849 0.5 347.752 +2.169 64.5 0.73 87.9 15.2 0.53 28.6
GX 5-1 270.277 -25.083 0.7 5.071 -1.015 14.6 0.30 48.9 0.0 0.00 0.0
Ginga 1826-24 277.359 -23.798 0.8 9.267 -6.081 19.1 0.48 40.1 7.0 0.37 19.1
H 1820-303 275.917 -30.369 1.0 2.781 -7.915 11.9 0.40 30.0 0.0 0.00 0.0
4U 1722-30 261.897 -30.798 1.3 356.327 +2.294 8.3 0.36 23.2 3.2 0.28 11.4
GX 354-0 262.992 -33.829 1.3 354.309 -0.149 7.5 0.34 22.2 2.1 0.26 8.1
GX 349+2 256.439 -36.410 1.5 349.116 +2.754 12.1 0.63 19.3 0.0 0.00 0.0
GRS 1758-258 270.331 -25.729 1.6 4.533 -1.377 5.0 0.29 17.2 3.9 0.23 17.4
XTE J1810-189 272.580 -19.080 1.9 11.351 +0.059 7.1 0.50 14.3 2.8 0.38 7.4
1E 1740.7-2942 265.976 -29.712 1.9 359.144 -0.087 4.2 0.29 14.5 3.1 0.24 13.2
3A 1822-371 276.453 -37.067 2.0 356.888 -11.280 6.8 0.49 14.1 0.0 0.00 0.0
SAX J1750.8-2900 267.583 -29.045 2.1 0.439 -0.939 3.3 0.25 12.9 0.0 0.00 0.0
GX 3+1 266.944 -26.573 0.0 2.268 +0.819 3.5 0.00 12.1 0.0 0.00 0.0
GX 9+1 270.357 -20.536 2.6 9.058 +1.172 4.6 0.46 10.1 0.0 0.00 0.0
GX 1+4 262.977 -24.746 2.7 1.921 +4.819 3.1 0.32 9.6 0.0 0.00 0.0
IGR J17354-3255 263.861 -32.928 3.2 355.459 -0.268 2.5 0.31 8.0 0.0 0.00 0.0
SLX 1744-299_300 266.898 -29.969 3.7 359.340 -0.903 1.9 0.28 6.9 0.0 0.00 0.0
XTE J1709-267 257.448 -26.691 4.4 357.481 +7.839 3.0 0.00 5.8 0.0 0.00 0.0
SLX 1735-269 264.539 -27.005 4.3 0.771 +2.419 1.9 0.33 5.8 1.1 0.26 4.3
GX 17+2 273.978 -14.002 4.9 16.450 +1.318 11.6 0.00 5.0 0.0 0.00 0.0
SLX 1737-282 265.275 -28.238 5.4 0.073 +1.211 1.4 0.30 4.6 0.0 0.00 0.0
Swift J174535.5-2901 266.426 -29.039 4.8 359.922 -0.069 1.4 0.27 5.1 0.0 0.00 0.0
IGR J17252-3616 261.357 -36.239 5.2 351.561 -0.370 2.0 0.42 4.8 0.0 0.00 0.0
1A 1742-294 266.447 -29.530 0.0 359.513 -0.341 1.2 0.00 4.3 0.0 0.00 0.0
IGR J17254-3257 261.232 -32.978 5.8 354.202 +1.545 1.6 0.00 4.2 0.0 0.00 0.0
IGR J17473-2721 266.799 -27.353 5.9 1.533 +0.526 1.3 0.31 4.1 0.0 0.00 0.0
JEM-X

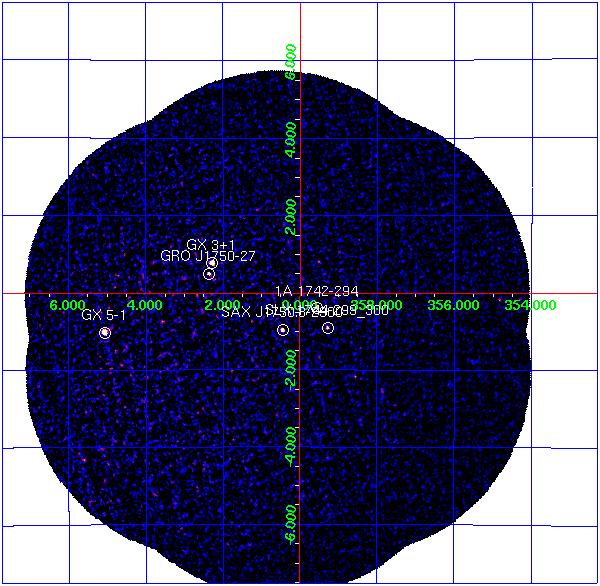

JEM-X significance mosaic images. Left: 3-10 keV. Right: 10-25 keV.
Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with mosaic_spec, in two bands: A = 3-10 keV (1 Crab ~ 88 cps); B = 10-25 keV (1 Crab ~ 32 cps).
NOTE: The object marked as SLX 1744-299_300 is used to indicate two low-mass x-ray binaries separated by 2.7 arcminutes, SLX 1744-299 and SLX 1744-300; the position for SLX 1744-299 is used, although it can not be ruled out that SLX 1744-300 may dominate the emission some of the time.
JEM-X Detected Sources in 3-10 keV (A) and 10-25 keV (B).
Source Name RA dec l b A(cps) +/- B(cps) +/-
==================== ======== ======== ======== ======== ====== ===== ====== =====
SAX J1750.8-2900 267.603 -29.037 0.455 -0.949 5.4 0.39 1.7 0.24
1A 1742-294 266.523 -29.515 359.559 -0.389 2.6 0.45 0.7 0.25
SLX 1744-299_300 266.858 -29.999 359.297 -0.889 3.6 0.48 0.7 0.24
GX 3+1 266.983 -26.564 2.294 +0.794 47.9 0.72 7.2 0.39
GX 5-1 270.284 -25.079 5.077 -1.019 108.5 1.76 18.0 0.86
GRO J1750-27 267.303 -26.643 2.373 +0.508 7.6 0.55 7.8 0.36
