INTEGRAL Galactic Bulge MonitoringRevolution 0670: Observation start 2008-04-08T10:17 = MJD 54564.429
Total Observation GTI = 23930 seconds
ISGRI

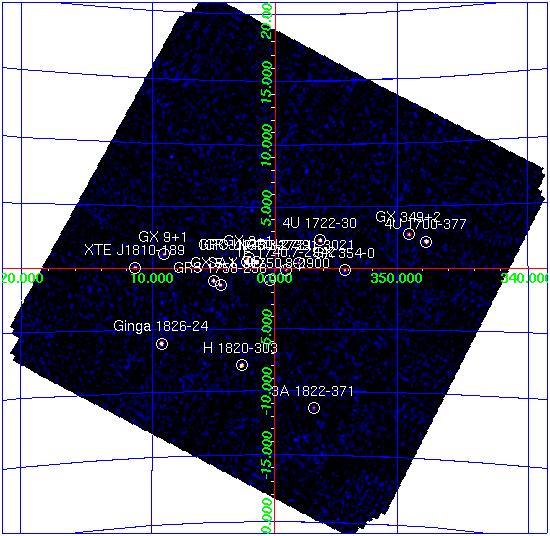

ISGRI significance mosaic images. Left: ISGRI 18-40 keV. Right: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA7, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 206 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.
NOTES: The table is constructed from the isgri_mosa_res.fits file - fluxes in the mosaic output are known to be systematically ~10% lower than in the ScW light-curves (see known issues). The systematic noise increases towards the edge of the field of view and NEW sources < 6σ towards the border of the image may be spurious.
ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)
Source Name RA dec +/- l b A(cps) +/- sig B(cps) +/- sig
==================== ======== ======= === ======== ======== ====== ===== ===== ====== ===== =====
IGR J17473-2721 266.825 -27.344 0.4 1.553 +0.511 23.4 0.23 103.2 11.4 0.18 62.7
GRO J1750-27 267.291 -26.644 0.6 2.367 +0.517 16.4 0.26 64.3 0.7 0.20 3.6
4U 1700-377 255.997 -37.852 0.7 347.753 +2.162 21.4 0.46 46.7 6.7 0.35 19.2
GX 5-1 270.279 -25.082 0.8 5.072 -1.016 11.7 0.27 43.8 0.0 0.00 0.0
H 1820-303 275.917 -30.366 0.8 2.783 -7.914 14.8 0.35 41.8 0.0 0.00 0.0
Ginga 1826-24 277.367 -23.795 0.8 9.275 -6.087 18.8 0.45 41.4 7.3 0.34 21.8
4U 1722-30 261.880 -30.804 0.9 356.315 +2.303 9.2 0.24 38.4 3.8 0.19 19.8
GRS 1758-258 270.300 -25.743 1.2 4.507 -1.359 6.2 0.26 23.8 3.9 0.20 19.6
XTE J1810-189 272.578 -19.055 1.4 11.371 +0.073 9.6 0.44 21.6 4.1 0.33 12.4
GX 349+2 256.441 -36.412 1.4 349.115 +2.752 8.2 0.39 21.1 0.0 0.00 0.0
SAX J1750.8-2900 267.592 -29.054 1.4 0.436 -0.949 4.8 0.24 19.9 2.3 0.19 12.0
1E 1740.7-2942 265.963 -29.759 1.5 359.097 -0.102 4.3 0.22 19.4 2.8 0.18 16.1
GX 354-0 262.998 -33.840 1.6 354.301 -0.159 4.2 0.24 17.5 0.0 0.00 0.0
GX 9+1 270.402 -20.525 2.0 9.088 +1.141 4.9 0.36 13.6 0.0 0.00 0.0
IGR J17391-3021 264.799 -30.328 1.9 358.082 +0.453 3.5 0.25 14.3 0.9 0.20 4.4
GX 3+1 266.886 -26.602 2.2 2.216 +0.849 3.2 0.00 12.5 0.0 0.00 0.0
3A 1822-371 276.475 -37.114 2.1 356.852 -11.316 6.3 0.48 13.2 0.0 0.00 0.0
SLX 1735-269 264.576 -27.017 3.7 0.779 +2.385 1.5 0.22 6.8 1.1 0.18 6.3
3A 1728-169 262.950 -16.985 3.2 8.501 +9.013 4.8 0.59 8.1 0.0 0.00 0.0
SLX 1744-299_300 266.838 -29.967 3.3 359.315 -0.857 1.7 0.22 7.7 0.7 0.18 4.1
IGR J18027-2016 270.735 -20.353 0.0 9.392 +0.955 2.5 0.00 7.1 0.0 0.00 0.0
GX 1+4 263.022 -24.773 4.0 1.921 +4.770 1.7 0.27 6.3 0.0 0.00 0.0
XTE J1709-267 257.334 -26.669 3.9 357.439 +7.935 2.0 0.31 6.4 0.0 0.00 0.0
SAX J1810.8-2609 272.640 -26.070 5.0 5.248 -3.357 1.4 0.28 5.0 0.0 0.00 0.0
IGR J16482-3036 252.045 -30.577 5.2 351.447 +9.239 2.5 0.53 4.7 0.0 0.00 0.0
1E 1742.8-2853 266.576 -28.937 5.9 0.077 -0.128 1.0 0.23 4.1 0.0 0.00 0.0
JEM-X

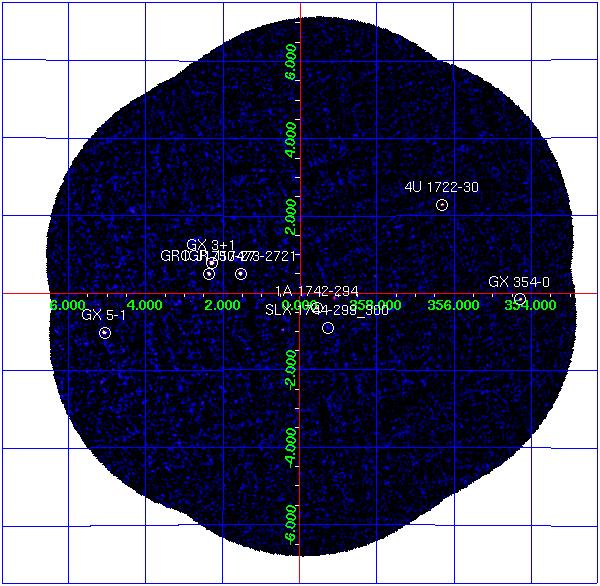

JEM-X significance mosaic images. Left: 3-10 keV. Right: 10-25 keV.
Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with mosaic_spec, in two bands: A = 3-10 keV (1 Crab ~ 88 cps); B = 10-25 keV (1 Crab ~ 32 cps).
NOTE: The object marked as SLX 1744-299_300 is used to indicate two low-mass x-ray binaries separated by 2.7 arcminutes, SLX 1744-299 and SLX 1744-300; the position for SLX 1744-299 is used, although it can not be ruled out that SLX 1744-300 may dominate the emission some of the time.
JEM-X Detected Sources in 3-10 keV (A) and 10-25 keV (B).
Source Name RA dec l b A(cps) +/- B(cps) +/-
==================== ======== ======== ======== ======== ====== ===== ====== =====
4U 1722-30 261.888 -30.802 356.320 +2.298 3.3 0.48 1.7 0.31
GX 354-0 262.989 -33.835 354.302 -0.150 10.9 0.84 3.1 0.57
1A 1742-294 266.523 -29.515 359.559 -0.389 3.6 0.27 0.8 0.18
IGR J17473-2721 266.825 -27.344 1.553 +0.510 4.4 0.36 2.8 0.23
SLX 1744-299_300 266.858 -29.999 359.297 -0.889 2.3 0.38 0.5 0.22
GX 3+1 266.983 -26.564 2.294 +0.794 33.4 0.48 5.8 0.28
GX 5-1 270.284 -25.079 5.077 -1.019 82.4 2.05 12.0 0.99
GRO J1750-27 267.303 -26.643 2.373 +0.508 3.2 0.41 3.9 0.27
