INTEGRAL Galactic Bulge MonitoringRevolution 0716: Observation start 2008-08-24T01:27 = MJD 54702.061
Total Observation GTI = 1648 seconds
ISGRI

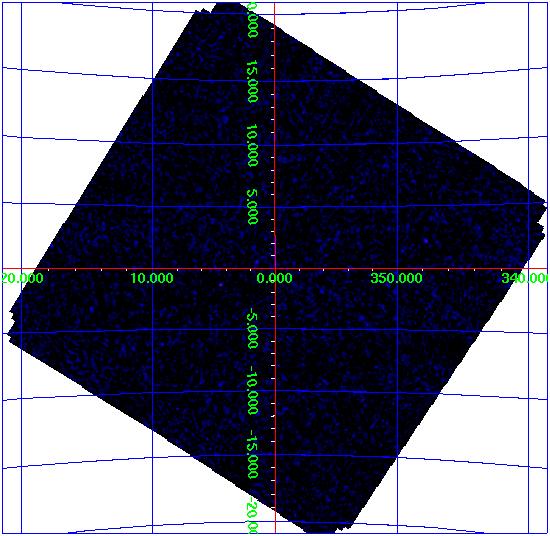

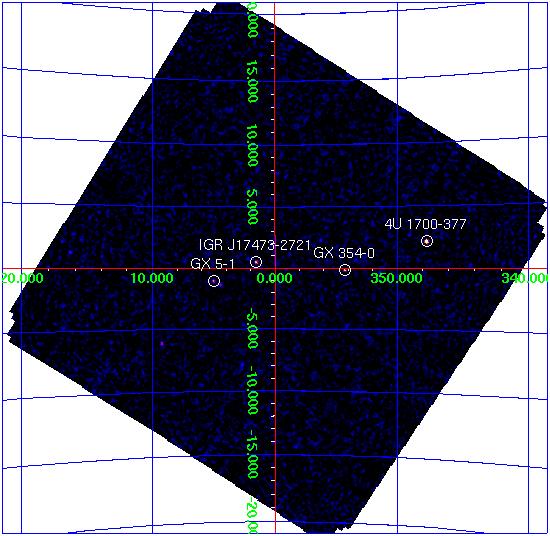

ISGRI significance mosaic images. Left: ISGRI 18-40 keV. Right: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA7, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 206 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.
NOTES: The table is constructed from the isgri_mosa_res.fits file - fluxes in the mosaic output are known to be systematically ~10% lower than in the ScW light-curves (see known issues). The systematic noise increases towards the edge of the field of view and NEW sources < 6σ towards the border of the image may be spurious.
ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)
Source Name RA dec +/- l b A(cps) +/- sig B(cps) +/- sig
==================== ======== ======= === ======== ======== ====== ===== ===== ====== ===== =====
4U 1700-377 255.990 -37.844 1.0 347.756 +2.172 65.7 2.02 32.5 13.5 1.60 8.5
IGR J17473-2721 266.832 -27.328 1.6 1.570 +0.514 15.0 0.87 17.2 5.0 0.77 6.5
GX 354-0 262.980 -33.832 1.6 354.301 -0.142 17.9 0.99 18.1 5.1 0.83 6.1
GX 5-1 270.296 -25.086 2.2 5.077 -1.031 12.1 1.00 12.1 0.0 0.00 0.0
GRS 1758-258 270.299 -25.728 2.9 4.520 -1.351 9.2 1.01 9.2 7.5 0.84 9.0
Ginga 1826-24 277.370 -23.815 2.8 9.258 -6.098 15.6 1.64 9.6 7.0 1.31 5.3
GX 1+4 263.038 -24.759 3.1 1.940 +4.765 8.5 1.00 8.5 0.0 0.00 0.0
1E 1740.7-2942 265.970 -29.724 3.2 359.130 -0.088 6.8 0.85 8.0 3.3 0.74 4.5
GX 17+2 274.013 -14.056 3.6 16.418 +1.262 35.0 4.89 7.2 0.0 0.00 0.0
IGR J17252-3616 261.223 -36.318 4.6 351.434 -0.324 6.8 1.25 5.4 0.0 0.00 0.0
4U 1722-30 261.841 -30.830 3.8 356.274 +2.316 6.9 1.04 6.6 3.5 0.84 4.1
H 1820-303 275.876 -30.387 4.1 2.749 -7.892 8.3 1.35 6.1 0.0 0.00 0.0
GX 349+2 256.453 -36.453 4.3 349.089 +2.719 9.6 1.63 5.9 0.0 0.00 0.0
GX 3+1 266.953 -26.589 4.8 2.258 +0.804 4.6 0.90 5.1 0.0 0.00 0.0
OAO 1657-415 255.184 -41.702 5.6 344.324 +0.303 16.8 0.00 4.4 0.0 0.00 0.0
H 1702-429 256.506 -43.064 0.0 343.839 -1.301 22.9 0.00 4.0 0.0 0.00 0.0
1A 1742-294 266.564 -29.561 6.6 359.539 -0.444 3.1 0.84 3.6 0.0 0.00 0.0
** NOTE **: Due to an error in the instrument parameters at the beginning of the revolution, there is very high deadtime in the ISGRI data - hence the mosaic only has an effective time of 1600 seconds.
JEM-X

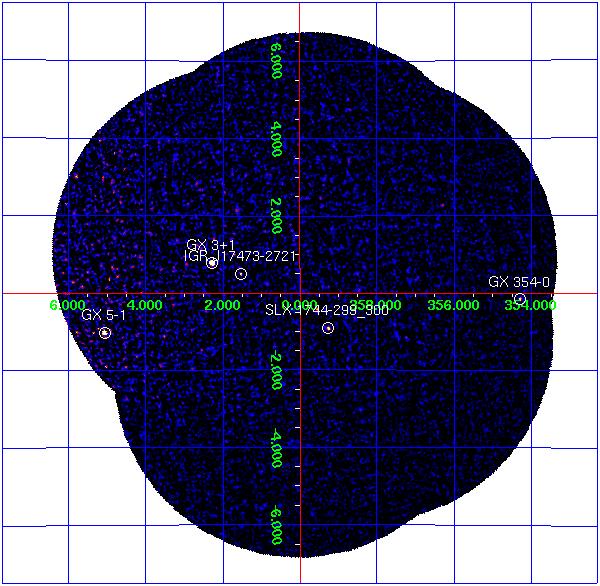

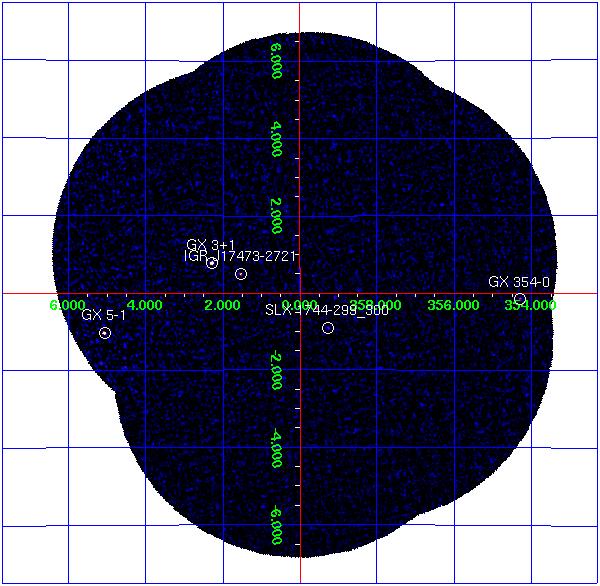

JEM-X significance mosaic images. Left: 3-10 keV. Right: 10-25 keV.
Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with mosaic_spec, in two bands: A = 3-10 keV (1 Crab ~ 88 cps); B = 10-25 keV (1 Crab ~ 32 cps).
NOTE: The object marked as SLX 1744-299_300 is used to indicate two low-mass x-ray binaries separated by 2.7 arcminutes, SLX 1744-299 and SLX 1744-300; the position for SLX 1744-299 is used, although it can not be ruled out that SLX 1744-300 may dominate the emission some of the time.
JEM-X Detected Sources in 3-10 keV (A) and 10-25 keV (B).
Source Name RA dec l b A(cps) +/- B(cps) +/-
==================== ======== ======== ======== ======== ====== ===== ====== =====
GX 354-0 262.989 -33.835 354.302 -0.150 8.8 1.57 3.1 1.06
IGR J17473-2721 266.825 -27.344 1.553 +0.510 2.9 0.53 1.7 0.34
SLX 1744-299_300 266.858 -29.999 359.297 -0.889 3.3 0.58 0.7 0.31
GX 3+1 266.983 -26.564 2.294 +0.794 52.2 0.89 7.3 0.45
GX 5-1 270.284 -25.079 5.077 -1.019 114.8 4.02 16.8 1.85
