INTEGRAL Galactic Bulge MonitoringRevolution 0719: Observation start 2008-09-02T01:15 = MJD 54711.052
Total Observation GTI = 8754 seconds
ISGRI

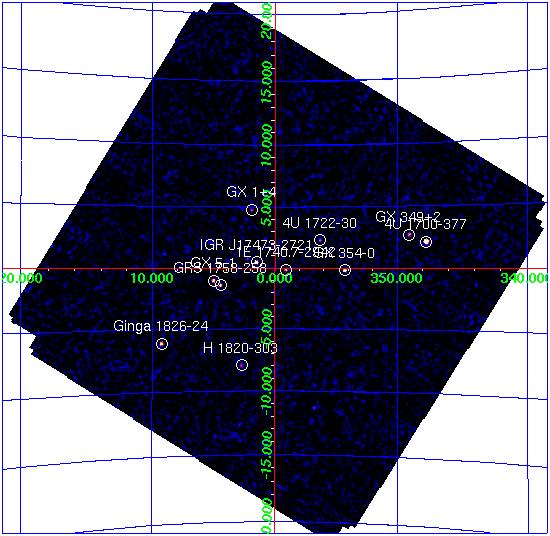

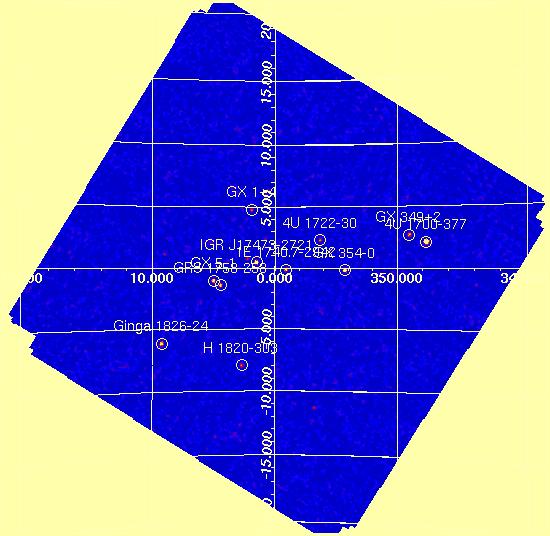

ISGRI significance mosaic images. Left: ISGRI 18-40 keV. Right: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA7, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 206 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.
NOTES: The table is constructed from the isgri_mosa_res.fits file - fluxes in the mosaic output are known to be systematically ~10% lower than in the ScW light-curves (see known issues). The systematic noise increases towards the edge of the field of view and NEW sources < 6σ towards the border of the image may be spurious.
ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)
Source Name RA dec +/- l b A(cps) +/- sig B(cps) +/- sig
==================== ======== ======= === ======== ======== ====== ===== ===== ====== ===== =====
4U 1700-377 255.993 -37.850 0.5 347.753 +2.166 69.8 0.84 83.3 18.7 0.65 28.6
GX 354-0 262.989 -33.831 0.8 354.305 -0.148 19.7 0.46 43.1 5.0 0.38 13.3
IGR J17473-2721 266.823 -27.333 0.9 1.561 +0.518 13.1 0.36 36.0 5.8 0.31 18.4
GX 5-1 270.277 -25.077 1.1 5.076 -1.012 13.1 0.48 27.6 0.0 0.00 0.0
Ginga 1826-24 277.374 -23.793 1.2 9.278 -6.092 18.4 0.72 25.7 6.4 0.56 11.4
GRS 1758-258 270.309 -25.750 1.3 4.506 -1.370 9.9 0.45 21.9 7.7 0.37 20.8
1E 1740.7-2942 265.979 -29.737 1.4 359.123 -0.102 7.5 0.36 21.0 5.5 0.30 18.0
GX 349+2 256.438 -36.437 1.8 349.094 +2.738 11.1 0.71 15.7 0.0 0.00 0.0
GX 1+4 263.008 -24.736 2.0 1.945 +4.801 6.0 0.44 13.6 0.0 0.00 0.0
4U 1722-30 261.858 -30.785 2.1 356.319 +2.329 5.3 0.41 12.7 1.6 0.34 4.9
H 1820-303 275.913 -30.359 2.2 2.788 -7.908 6.9 0.57 12.1 0.0 0.00 0.0
GX 3+1 266.989 -26.559 2.7 2.301 +0.792 3.7 0.38 9.9 0.0 0.00 0.0
3A 1822-371 276.415 -37.153 3.2 356.795 -11.290 5.9 0.73 8.1 0.0 0.00 0.0
GX 9+1 270.354 -20.548 3.8 9.047 +1.169 3.8 0.55 6.8 0.0 0.00 0.0
SLX 1735-269 264.588 -26.964 3.5 0.830 +2.403 2.8 0.38 7.3 2.0 0.32 6.1
H 1702-429 256.527 -43.040 4.1 343.867 -1.299 12.7 2.06 6.1 0.0 0.00 0.0
SLX 1744-299_300 266.852 -29.986 4.7 359.305 -0.878 1.9 0.37 5.3 0.0 0.00 0.0
GX 17+2 273.995 -14.019 4.5 16.442 +1.295 16.5 2.98 5.6 0.0 0.00 0.0
1E 1742.8-2853 266.519 -28.942 5.4 0.047 -0.088 1.6 0.36 4.5 0.0 0.00 0.0
IGR J17464-2811 266.794 -28.216 6.2 0.793 +0.083 1.4 0.36 3.9 0.0 0.00 0.0
3A 1728-169 262.968 -17.008 6.0 8.490 +8.986 3.5 0.86 4.1 0.0 0.00 0.0
4U 1705-32 257.103 -32.337 0.0 352.715 +4.753 2.2 0.00 4.0 0.0 0.00 0.0
** NOTE **: ScWs 07190002-0003 were not included in analysis due to poor pointing data.
JEM-X

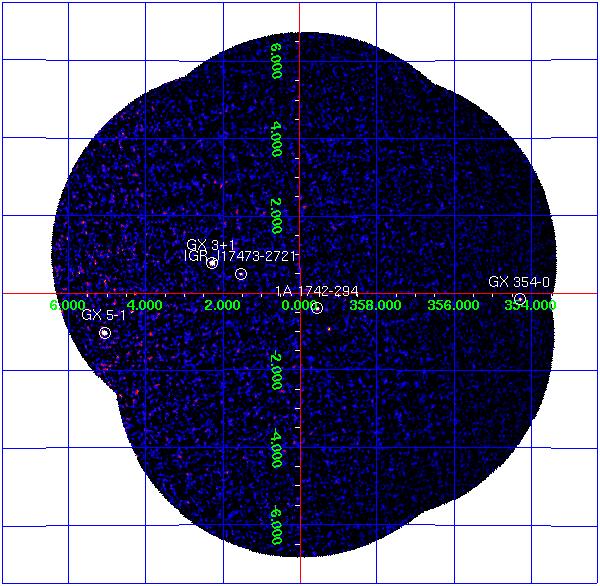

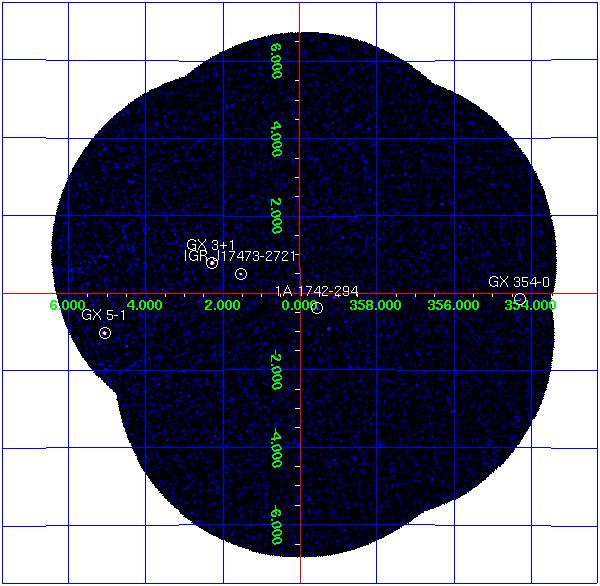

JEM-X significance mosaic images. Left: 3-10 keV. Right: 10-25 keV.
Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with mosaic_spec, in two bands: A = 3-10 keV (1 Crab ~ 88 cps); B = 10-25 keV (1 Crab ~ 32 cps).
NOTE: The object marked as SLX 1744-299_300 is used to indicate two low-mass x-ray binaries separated by 2.7 arcminutes, SLX 1744-299 and SLX 1744-300; the position for SLX 1744-299 is used, although it can not be ruled out that SLX 1744-300 may dominate the emission some of the time.
JEM-X Detected Sources in 3-10 keV (A) and 10-25 keV (B).
Source Name RA dec l b A(cps) +/- B(cps) +/-
==================== ======== ======== ======== ======== ====== ===== ====== =====
GX 354-0 262.989 -33.835 354.302 -0.150 10.4 1.45 3.3 1.02
1A 1742-294 266.523 -29.515 359.559 -0.389 3.9 0.45 0.9 0.30
IGR J17473-2721 266.825 -27.344 1.553 +0.510 4.9 0.57 1.9 0.33
GX 3+1 266.983 -26.564 2.294 +0.794 52.0 0.86 6.9 0.44
GX 5-1 270.284 -25.079 5.077 -1.019 142.2 4.42 18.8 2.05
Go back to Bulge home page
