INTEGRAL Galactic Bulge MonitoringRevolution 0721: Observation start 2008-09-10T09:42 = MJD 54719.405
Total Observation GTI = 12183 seconds
ISGRI

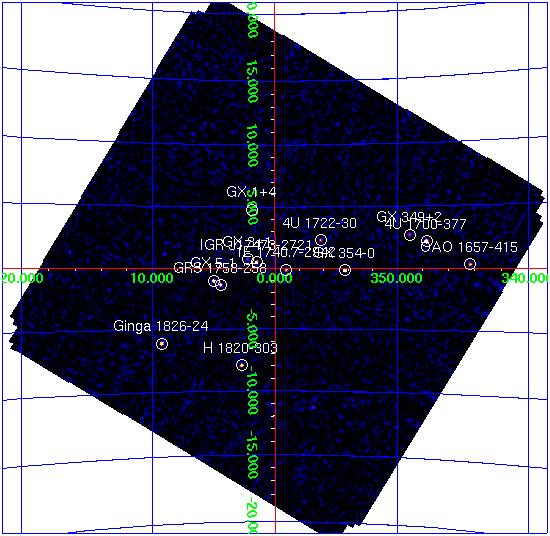

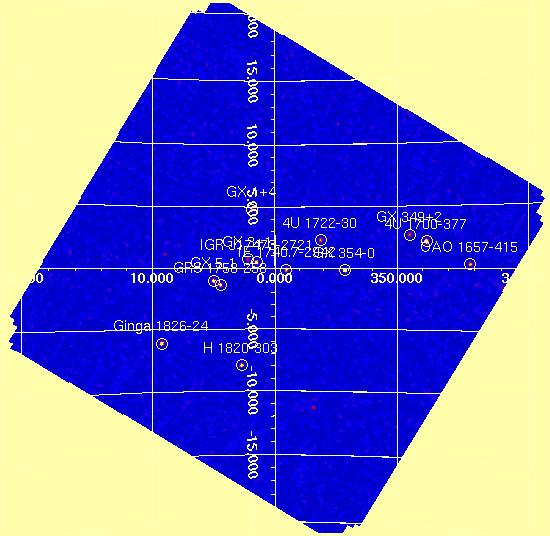

ISGRI significance mosaic images. Left: ISGRI 18-40 keV. Right: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA7, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 206 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.
NOTES: The table is constructed from the isgri_mosa_res.fits file - fluxes in the mosaic output are known to be systematically ~10% lower than in the ScW light-curves (see known issues). The systematic noise increases towards the edge of the field of view and NEW sources < 6σ towards the border of the image may be spurious.
ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)
Source Name RA dec +/- l b A(cps) +/- sig B(cps) +/- sig
==================== ======== ======= === ======== ======== ====== ===== ===== ====== ===== =====
4U 1700-377 255.985 -37.835 0.8 347.761 +2.180 30.8 0.69 44.8 6.1 0.53 11.4
GX 354-0 262.992 -33.837 0.8 354.302 -0.153 16.7 0.38 43.8 4.1 0.31 13.3
GRS 1758-258 270.300 -25.748 1.0 4.503 -1.362 11.6 0.38 30.9 7.5 0.31 24.3
IGR J17473-2721 266.826 -27.343 1.0 1.554 +0.510 9.5 0.29 32.4 4.6 0.25 18.5
GX 5-1 270.284 -25.080 1.1 5.076 -1.019 11.2 0.38 29.3 1.4 0.31 4.4
Ginga 1826-24 277.359 -23.796 1.1 9.270 -6.080 16.5 0.58 28.6 6.7 0.46 14.6
H 1820-303 275.905 -30.364 1.2 2.780 -7.904 10.9 0.43 25.7 0.0 0.00 0.0
1E 1740.7-2942 265.967 -29.760 1.2 359.098 -0.105 7.5 0.29 25.6 5.3 0.25 21.3
OAO 1657-415 255.178 -41.654 1.5 344.359 +0.335 26.3 1.41 18.6 5.6 1.09 5.1
GX 1+4 262.990 -24.747 1.7 1.927 +4.809 6.7 0.40 16.7 0.0 0.00 0.0
4U 1722-30 261.854 -30.819 1.8 356.290 +2.313 5.3 0.34 15.4 1.6 0.28 5.9
GX 349+2 256.422 -36.445 2.1 349.079 +2.744 7.5 0.57 13.1 0.0 0.00 0.0
GX 3+1 267.008 -26.585 2.6 2.287 +0.764 3.1 0.31 10.1 0.0 0.00 0.0
3A 1822-371 276.472 -37.061 3.2 356.900 -11.291 4.7 0.57 8.2 0.0 0.00 0.0
GX 9+1 270.366 -20.566 3.4 9.036 +1.151 3.6 0.47 7.6 0.0 0.00 0.0
H 1702-429 256.512 -43.059 4.7 343.846 -1.302 11.0 2.11 5.2 7.3 1.56 4.7
GX 17+2 273.993 -14.011 4.6 16.448 +1.300 15.3 2.83 5.4 0.0 0.00 0.0
SLX 1735-269 264.517 -26.968 4.3 0.793 +2.455 1.8 0.32 5.8 1.0 0.26 3.6
MXB 1730-335 263.352 -33.396 0.0 354.834 -0.164 1.7 0.00 4.8 0.0 0.00 0.0
1E 1742.9-2849 266.534 -28.816 5.6 0.161 -0.034 1.2 0.28 4.4 0.0 0.00 0.0
IGR J17379-3747 264.581 -37.815 6.9 351.647 -3.385 1.7 0.48 3.5 1.9 0.39 4.9
XTE J1743-363 265.788 -36.443 5.8 353.324 -3.480 1.9 0.00 4.2 0.0 0.00 0.0
IGR J16493-4348 252.308 -43.846 5.9 341.330 +0.596 24.7 0.00 4.1 0.0 0.00 0.0
IGR J17195-4100 260.013 -40.980 0.0 347.057 -2.187 3.1 0.00 4.0 0.0 0.00 0.0
IGR J17252-3616 261.238 -36.334 6.1 351.428 -0.343 1.8 0.00 4.0 0.0 0.00 0.0
SLX 1744-299_300 266.873 -30.116 5.5 359.203 -0.961 1.3 0.30 4.4 0.0 0.00 0.0
GRS 1747-312 267.654 -31.291 5.8 358.540 -2.141 1.3 0.32 4.2 0.0 0.00 0.0
JEM-X

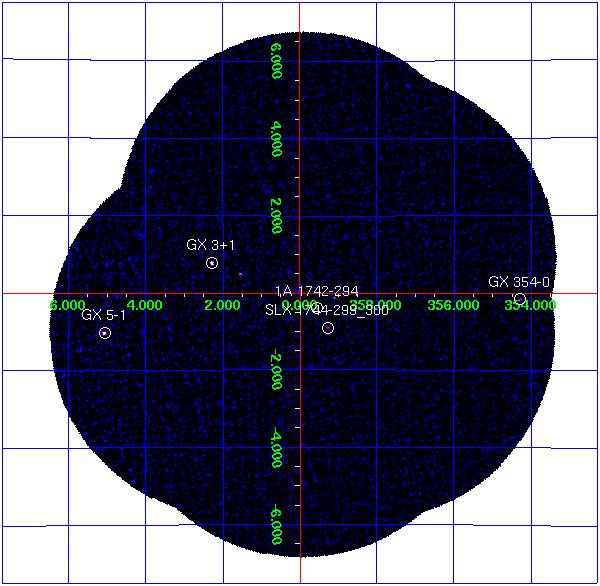

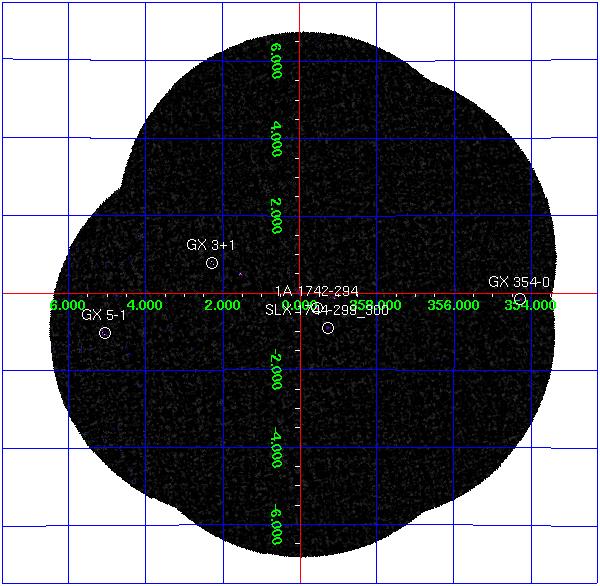

JEM-X significance mosaic images. Left: 3-10 keV. Right: 10-25 keV.
Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with mosaic_spec, in two bands: A = 3-10 keV (1 Crab ~ 88 cps); B = 10-25 keV (1 Crab ~ 32 cps).
NOTE: The object marked as SLX 1744-299_300 is used to indicate two low-mass x-ray binaries separated by 2.7 arcminutes, SLX 1744-299 and SLX 1744-300; the position for SLX 1744-299 is used, although it can not be ruled out that SLX 1744-300 may dominate the emission some of the time.
JEM-X Detected Sources in 3-10 keV (A) and 10-25 keV (B).
Source Name RA dec l b A(cps) +/- B(cps) +/-
==================== ======== ======== ======== ======== ====== ===== ====== =====
GX 354-0 262.989 -33.835 354.302 -0.150 8.8 1.35 2.7 0.88
1A 1742-294 266.523 -29.515 359.559 -0.389 4.0 0.39 0.7 0.22
SLX 1744-299_300 266.858 -29.999 359.297 -0.889 3.4 0.38 0.8 0.25
GX 3+1 266.983 -26.564 2.294 +0.794 41.4 0.89 5.0 0.46
GX 5-1 270.284 -25.079 5.077 -1.019 121.1 3.37 17.7 1.57
Go back to Bulge home page
