INTEGRAL Galactic Bulge MonitoringRevolution 0725: Observation start 2008-09-19T23:00 = MJD 54728.959
Total Observation GTI = 12240 seconds
ISGRI

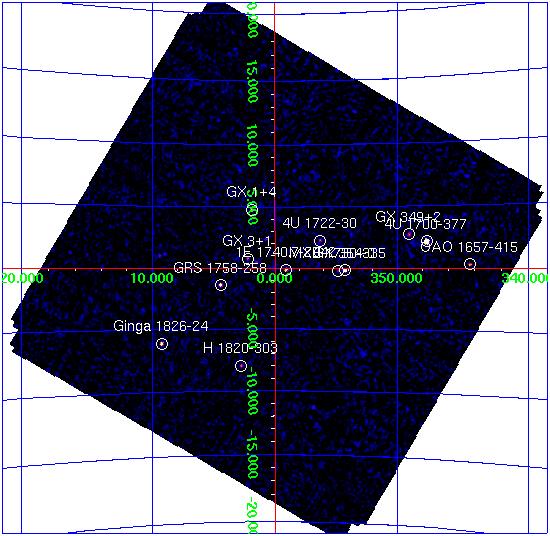

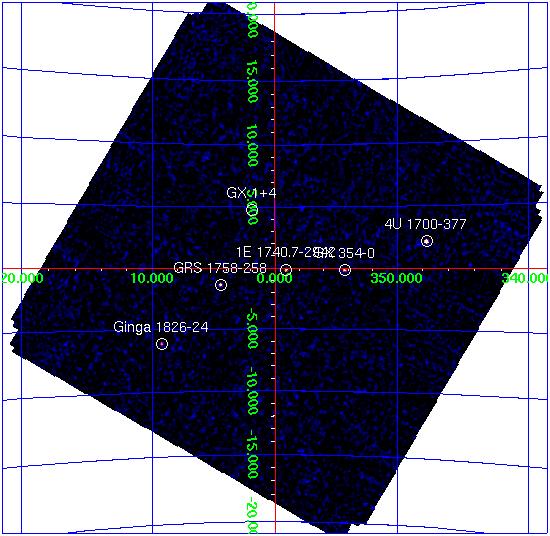

ISGRI significance mosaic images. Left: ISGRI 18-40 keV. Right: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA7, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 206 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.
NOTES: The table is constructed from the isgri_mosa_res.fits file - fluxes in the mosaic output are known to be systematically ~10% lower than in the ScW light-curves (see known issues). The systematic noise increases towards the edge of the field of view and NEW sources < 6σ towards the border of the image may be spurious.
ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)
Source Name RA dec +/- l b A(cps) +/- sig B(cps) +/- sig
==================== ======== ======= === ======== ======== ====== ===== ===== ====== ===== =====
4U 1700-377 255.989 -37.846 0.4 347.754 +2.171 116.5 0.82 142.6 26.9 0.62 43.3
GX 354-0 262.989 -33.831 0.6 354.305 -0.148 22.8 0.40 57.0 7.5 0.32 23.2
GRS 1758-258 270.298 -25.749 1.0 4.501 -1.361 9.9 0.33 30.3 6.0 0.27 22.5
1E 1740.7-2942 265.968 -29.739 1.1 359.117 -0.095 8.4 0.30 27.9 6.8 0.26 26.6
Ginga 1826-24 277.372 -23.803 1.2 9.269 -6.094 14.5 0.57 25.3 6.6 0.45 14.7
GX 1+4 262.997 -24.744 1.2 1.933 +4.805 8.4 0.35 24.1 0.0 0.00 0.0
OAO 1657-415 255.216 -41.645 1.7 344.383 +0.318 24.3 1.46 16.7 6.6 1.09 6.0
4U 1722-30 261.896 -30.811 2.2 356.317 +2.287 4.5 0.37 12.3 1.7 0.30 5.5
H 1820-303 275.944 -30.358 2.0 2.801 -7.931 6.6 0.49 13.7 0.0 0.00 0.0
GX 3+1 266.974 -26.572 1.9 2.282 +0.797 4.7 0.33 14.3 0.0 0.00 0.0
GX 349+2 256.436 -36.399 2.2 349.123 +2.762 7.5 0.62 12.1 0.0 0.00 0.0
MXB 1730-335 263.378 -33.387 2.5 354.854 -0.177 4.0 0.37 10.8 0.0 0.00 0.0
IGR J17473-2721 266.811 -27.359 2.7 1.533 +0.513 3.4 0.35 9.6 1.5 0.30 5.1
SLX 1735-269 264.571 -26.997 3.0 0.794 +2.399 3.3 0.37 8.7 1.7 0.31 5.6
IGR J18027-2016 270.690 -20.278 3.7 9.437 +1.028 3.5 0.51 6.9 0.0 0.00 0.0
3A 1822-371 276.435 -37.069 3.5 356.880 -11.268 4.9 0.66 7.4 0.0 0.00 0.0
GX 9+1 270.400 -20.524 4.0 9.088 +1.143 3.1 0.50 6.3 0.0 0.00 0.0
1E 1742.9-2849 266.488 -28.834 0.0 0.125 -0.009 1.6 0.00 5.6 0.0 0.00 0.0
GX 17+2 274.023 -14.054 3.7 16.425 +1.255 16.9 2.46 6.9 0.0 0.00 0.0
H 1702-429 256.527 -43.032 4.5 343.873 -1.295 11.9 2.14 5.6 0.0 0.00 0.0
SAX J1712.6-3739 258.108 -37.605 5.3 348.950 +0.972 2.6 0.00 4.7 0.0 0.00 0.0
1A 1744-361 267.101 -36.038 0.0 354.221 -4.176 1.7 0.00 4.3 0.0 0.00 0.0
GX 5-1 270.325 -25.047 5.7 5.124 -1.034 1.4 0.33 4.3 0.0 0.00 0.0
GRS 1734-292 264.337 -29.122 8.2 358.887 +1.437 0.9 0.32 2.9 0.0 0.00 0.0
1H 1746-370 267.415 -37.006 0.0 353.515 -4.886 1.7 0.00 3.8 0.0 0.00 0.0
SGR 1806-20 272.122 -20.361 6.3 10.021 -0.183 2.0 0.53 3.9 0.0 0.00 0.0
SAX J1750.8-2900 267.618 -29.076 6.8 0.429 -0.980 1.1 0.00 3.5 0.0 0.00 0.0
3A 1728-169 262.948 -16.970 0.0 8.513 +9.022 2.7 0.00 3.5 0.0 0.00 0.0
NEW_1 259.731 -32.635 4.8 353.769 +2.779 2.0 0.39 5.1 3.0 0.00 7.0
JEM-X

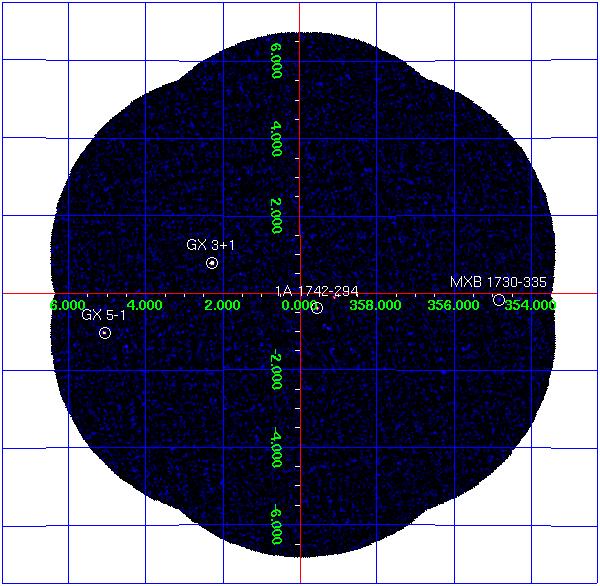

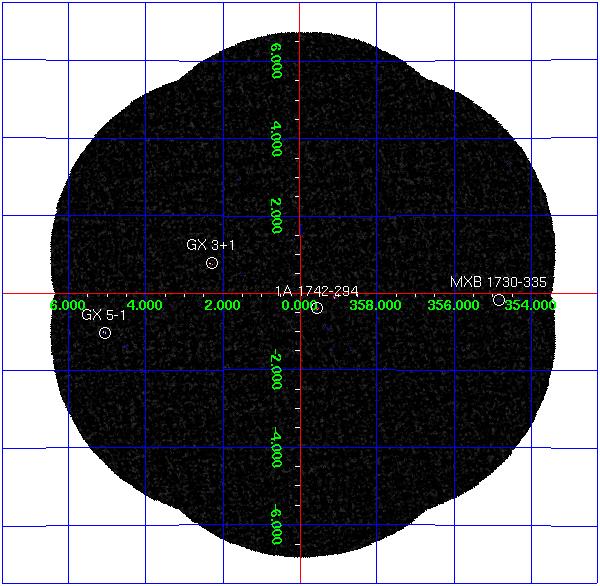

JEM-X significance mosaic images. Left: 3-10 keV. Right: 10-25 keV.
Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with mosaic_spec, in two bands: A = 3-10 keV (1 Crab ~ 88 cps); B = 10-25 keV (1 Crab ~ 32 cps).
NOTE: The object marked as SLX 1744-299_300 is used to indicate two low-mass x-ray binaries separated by 2.7 arcminutes, SLX 1744-299 and SLX 1744-300; the position for SLX 1744-299 is used, although it can not be ruled out that SLX 1744-300 may dominate the emission some of the time.
JEM-X Detected Sources in 3-10 keV (A) and 10-25 keV (B).
Source Name RA dec l b A(cps) +/- B(cps) +/-
==================== ======== ======== ======== ======== ====== ===== ====== =====
MXB 1730-335 263.350 -33.388 354.841 -0.158 11.4 1.15 2.1 0.84
1A 1742-294 266.523 -29.515 359.559 -0.389 6.5 0.47 1.5 0.27
GX 3+1 266.983 -26.564 2.294 +0.794 50.5 0.75 7.2 0.38
GX 5-1 270.284 -25.079 5.077 -1.019 92.8 2.51 6.3 1.02
Go back to Bulge home page
