INTEGRAL Galactic Bulge Monitoring Revolution 0726: Observation start 2008-09-23T08:51 = MJD 54732.369
Total Observation GTI = 10363 seconds
ISGRI

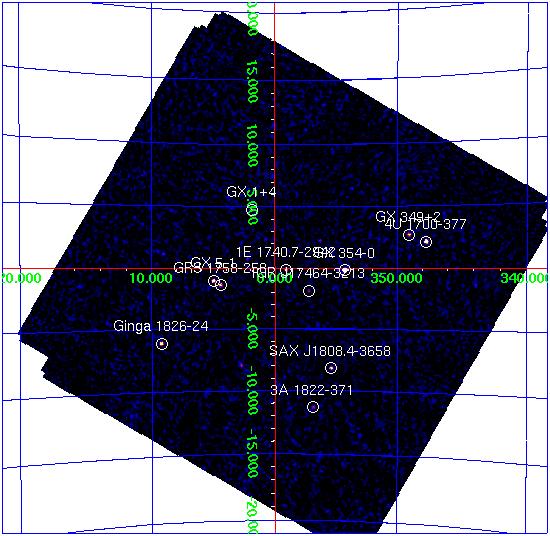

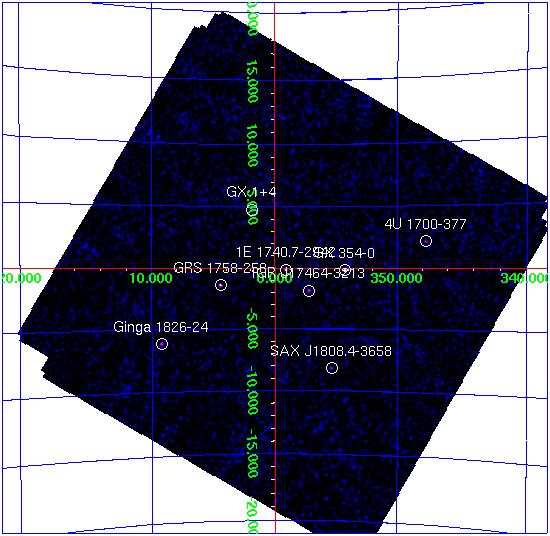

ISGRI significance mosaic images. Left: ISGRI 18-40 keV. Right: 40-100 keVSources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of
OSA7
, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 206 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.NOTES: The table is constructed from the
isgri_mosa_res.fits
file - fluxes in the mosaic output are known to be systematically ~10% lower than in the ScW light-curves (see known issues). The systematic noise increases towards the edge of the field of view andNEW
sources < 6σ towards the border of the image may be spurious.
ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)Source Name RA dec +/- l b A(cps) +/- sig B(cps) +/- sig ==================== ======== ======= === ======== ======== ====== ===== ===== ====== ===== ===== GX 354-0 262.997 -33.833 0.6 354.307 -0.154 22.8 0.37 61.6 8.3 0.31 26.7 4U 1700-377 255.981 -37.848 0.9 347.749 +2.175 24.5 0.65 37.9 6.3 0.50 12.4 GX 5-1 270.281 -25.080 0.9 5.075 -1.017 14.4 0.39 37.0 0.0 0.00 0.0 Ginga 1826-24 277.359 -23.800 1.1 9.266 -6.082 17.5 0.64 27.4 6.0 0.51 11.8 GRS 1758-258 270.289 -25.749 1.2 4.497 -1.354 8.7 0.36 23.9 6.5 0.30 21.3 SAX J1808.4-3658 272.112 -36.968 1.3 355.394 -8.141 10.0 0.44 22.8 4.3 0.36 11.9 1E 1740.7-2942 265.975 -29.750 1.2 359.110 -0.106 8.6 0.35 24.4 6.5 0.30 21.4 GX 1+4 263.010 -24.734 1.3 1.947 +4.800 9.2 0.41 22.3 0.0 0.00 0.0 GX 349+2 256.434 -36.436 1.6 349.093 +2.742 10.4 0.61 17.2 0.0 0.00 0.0 H 1820-303 275.924 -30.328 2.7 2.820 -7.903 4.8 0.49 9.8 0.0 0.00 0.0 3A 1822-371 276.474 -37.092 2.4 356.872 -11.306 7.2 0.64 11.3 0.0 0.00 0.0 IGR J17464-3213 266.580 -32.243 2.5 357.254 -1.849 3.6 0.33 10.7 3.2 0.28 11.4 GX 3+1 266.973 -26.576 2.8 2.278 +0.796 3.5 0.37 9.5 0.0 0.00 0.0 MXB 1730-335 263.270 -33.454 0.0 354.749 -0.138 3.3 0.00 8.6 0.0 0.00 0.0 SAX J1750.8-2900 267.655 -29.059 0.0 0.460 -1.000 2.8 0.00 8.5 1.2 0.29 4.2 4U 1722-30 261.912 -30.800 2.8 356.332 +2.282 3.8 0.40 9.5 1.5 0.32 4.6 GX 9+1 270.378 -20.499 3.6 9.100 +1.174 4.0 0.57 7.1 0.0 0.00 0.0 SLX 1735-269 264.576 -27.010 3.6 0.785 +2.388 2.8 0.41 7.0 0.0 0.00 0.0 H 1702-429 256.529 -43.016 4.0 343.888 -1.286 8.8 1.41 6.3 0.0 0.00 0.0 1A 1742-294 266.523 -29.494 4.2 359.577 -0.378 2.0 0.33 6.0 0.0 0.00 0.0 IGR J17252-3616 261.354 -36.315 5.6 351.496 -0.410 2.0 0.45 4.4 0.0 0.00 0.0 GRS 1734-292 264.385 -29.064 5.3 358.958 +1.433 1.6 0.35 4.6 0.0 0.00 0.0 SLX 1744-299_300 266.904 -30.050 0.0 359.274 -0.949 1.5 0.00 4.0 0.0 0.00 0.0 GX 17+2 273.979 -14.071 5.6 16.389 +1.284 24.3 5.60 4.3 0.0 0.00 0.0 XB 1832-330 278.865 -33.070 6.5 1.434 -11.353 2.4 0.00 3.7 0.0 0.00 0.0 XTE J1720-318 259.918 -31.770 5.8 354.570 +3.145 1.6 0.39 4.2 0.0 0.00 0.0 IGR J17473-2721 266.839 -27.353 5.3 1.551 +0.495 1.8 0.39 4.7 1.8 0.33 5.4JEM-X

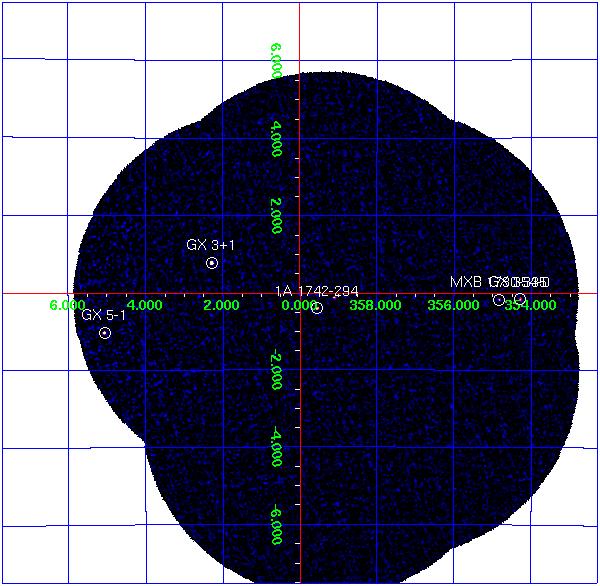

JEM-X significance mosaic images. Left: 3-10 keV. Right: 10-25 keV.Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with
mosaic_spec
, in two bands: A = 3-10 keV (1 Crab ~ 88 cps); B = 10-25 keV (1 Crab ~ 32 cps).NOTE: The object marked as SLX 1744-299_300 is used to indicate two low-mass x-ray binaries separated by 2.7 arcminutes, SLX 1744-299 and SLX 1744-300; the position for SLX 1744-299 is used, although it can not be ruled out that SLX 1744-300 may dominate the emission some of the time.
JEM-X Detected Sources in 3-10 keV (A) and 10-25 keV (B).Source Name RA dec l b A(cps) +/- B(cps) +/- ==================== ======== ======== ======== ======== ====== ===== ====== ===== GX 354-0 262.989 -33.835 354.302 -0.150 9.0 1.07 3.7 0.75 MXB 1730-335 263.350 -33.388 354.841 -0.158 11.3 0.85 2.2 0.54 1A 1742-294 266.523 -29.515 359.559 -0.389 6.1 0.44 1.5 0.27 GX 3+1 266.983 -26.564 2.294 +0.794 47.9 0.94 6.5 0.49 GX 5-1 270.284 -25.079 5.077 -1.019 91.1 4.13 16.0 2.04
