INTEGRAL Galactic Bulge MonitoringRevolution 0842: Observation start 2009-09-06T04:02 = MJD 55080.168
Total Observation GTI = 13983 seconds
ISGRI

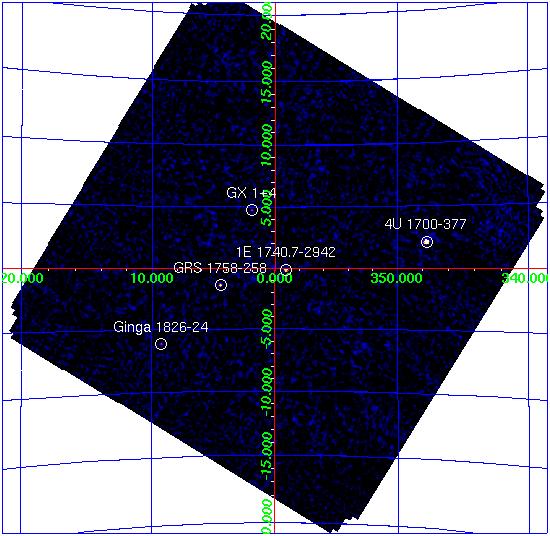

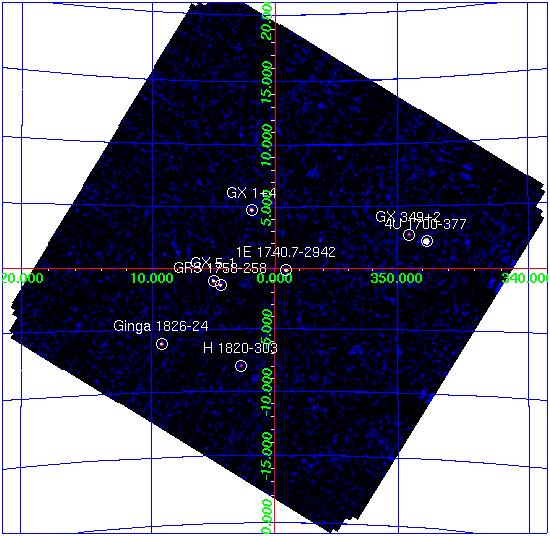

ISGRI significance mosaic images. Left: ISGRI 18-40 keV. Right: 40-100 keV
Sources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of OSA7, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 206 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.
NOTES: The table is constructed from the isgri_mosa_res.fits file - fluxes in the mosaic output are known to be systematically ~10% lower than in the ScW light-curves (see known issues). The systematic noise increases towards the edge of the field of view and NEW sources < 6σ towards the border of the image may be spurious.
ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)
Source Name RA dec +/- l b A(cps) +/- sig B(cps) +/- sig
==================== ======== ======= === ======== ======== ====== ===== ===== ====== ===== =====
4U 1700-377 255.986 -37.848 0.3 347.751 +2.171 126.2 0.65 195.0 32.8 0.50 66.0
1E 1740.7-2942 265.985 -29.750 0.8 359.114 -0.113 11.9 0.28 42.4 7.3 0.24 30.0
GX 1+4 263.020 -24.741 0.9 1.946 +4.789 13.6 0.37 36.4 0.0 0.00 0.0
GX 5-1 270.288 -25.082 0.9 5.077 -1.023 13.4 0.39 34.5 0.0 0.00 0.0
Ginga 1826-24 277.380 -23.797 1.2 9.277 -6.098 15.3 0.63 24.1 5.7 0.50 11.5
GRS 1758-258 270.298 -25.740 1.2 4.509 -1.357 9.1 0.38 24.1 6.2 0.31 20.0
GX 349+2 256.446 -36.417 1.9 349.114 +2.745 8.1 0.56 14.6 0.0 0.00 0.0
H 1820-303 275.942 -30.332 2.3 2.823 -7.918 5.2 0.44 11.7 0.0 0.00 0.0
4U 1722-30 261.826 -30.822 3.3 356.274 +2.331 2.5 0.33 7.7 1.5 0.27 5.7
IGR J17586-2129 269.671 -21.404 3.8 7.986 +1.298 2.8 0.41 6.7 0.0 0.00 0.0
GX 9+1 270.382 -20.541 3.4 9.065 +1.150 3.4 0.45 7.5 0.0 0.00 0.0
3A 1822-371 276.410 -37.139 4.3 356.807 -11.280 3.7 0.64 5.9 0.0 0.00 0.0
1E 1742.9-2849 266.540 -28.807 4.2 0.171 -0.034 1.6 0.28 5.9 0.0 0.00 0.0
MXB 1730-335 263.402 -33.353 5.3 354.894 -0.175 1.6 0.35 4.7 0.0 0.00 0.0
GX 3+1 267.010 -26.524 4.7 2.340 +0.794 1.6 0.30 5.3 0.0 0.00 0.0
GX 17+2 274.098 -14.076 4.8 16.440 +1.180 10.8 2.10 5.2 0.0 0.00 0.0
GX 354-0 262.882 -33.800 5.4 354.283 -0.056 1.6 0.00 4.5 0.0 0.00 0.0
IGR J17252-3616 261.294 -36.269 0.0 351.507 -0.344 1.9 0.00 4.5 0.0 0.00 0.0
XTE J1716-389 258.890 -38.848 5.0 348.302 -0.254 3.0 0.61 4.9 0.0 0.00 0.0
3A 1728-169 262.945 -16.981 5.3 8.502 +9.019 3.3 0.72 4.7 0.0 0.00 0.0
Oph Cluster 258.096 -23.387 0.0 0.548 +9.275 1.8 0.00 4.0 0.0 0.00 0.0
SLX 1744-299_300 266.764 -30.075 6.7 359.190 -0.859 1.0 0.29 3.6 0.0 0.00 0.0
XB 1832-330 278.942 -32.967 6.0 1.556 -11.369 2.6 0.64 4.1 0.0 0.00 0.0
NEW_1 255.266 -43.810 3.3 342.699 -1.041 23.7 3.05 7.7 0.0 0.00 0.0
NEW_2 269.590 -44.218 3.7 348.009 -9.880 17.3 2.43 6.8 0.0 0.00 0.0
NEW_3 261.431 -25.845 4.6 0.228 +5.385 1.9 0.34 5.4 0.0 0.00 0.0
NEW_4 256.574 -37.364 0.0 348.418 +2.093 3.5 0.00 6.0 0.0 0.00 0.0
JEM-X

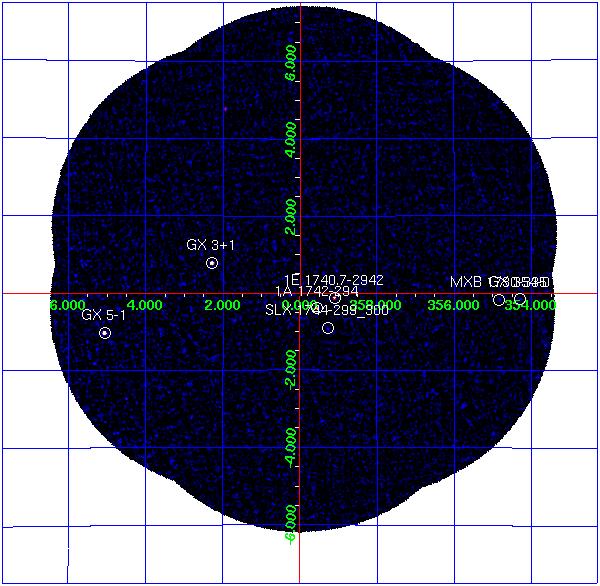

JEM-X significance mosaic images. Left: 3-10 keV. Right: 10-25 keV.
Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with mosaic_spec, in two bands: A = 3-10 keV (1 Crab ~ 88 cps); B = 10-25 keV (1 Crab ~ 32 cps).
NOTE: The object marked as SLX 1744-299_300 is used to indicate two low-mass x-ray binaries separated by 2.7 arcminutes, SLX 1744-299 and SLX 1744-300; the position for SLX 1744-299 is used, although it can not be ruled out that SLX 1744-300 may dominate the emission some of the time.
JEM-X Detected Sources in 3-10 keV (A) and 10-25 keV (B).
Source Name RA dec l b A(cps) +/- B(cps) +/-
==================== ======== ======== ======== ======== ====== ===== ====== =====
GX 354-0 262.989 -33.835 354.302 -0.150 7.0 1.30 1.2 0.83
MXB 1730-335 263.350 -33.388 354.841 -0.158 8.7 0.90 0.9 0.56
1E 1740.7-2942 265.978 -29.745 359.116 -0.106 2.2 0.33 1.3 0.23
1A 1742-294 266.523 -29.515 359.559 -0.389 5.2 0.36 1.0 0.24
SLX 1744-299_300 266.858 -29.999 359.297 -0.889 1.9 0.37 0.4 0.24
GX 3+1 266.983 -26.564 2.294 +0.794 32.8 0.58 4.0 0.32
GX 5-1 270.284 -25.079 5.077 -1.019 98.6 2.52 15.8 1.25
