INTEGRAL Galactic Bulge Monitoring Revolution 0851: Observation start 2009-10-01T20:54 = MJD 55105.871
Total Observation GTI = 12330 seconds
ISGRI

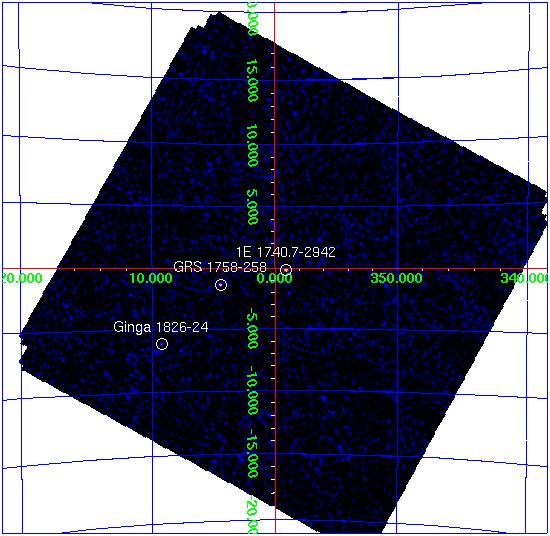

ISGRI significance mosaic images. Left: ISGRI 18-40 keV. Right: 40-100 keVSources detected > 10σ in each band are marked on the image. The table below lists the fitted position, and statistical positional uncertainty in arcmin returned by the mosaic step of
OSA7
, of all the sources detected in the 18 - 40 keV range (band A: 1 Crab ~ 206 cps ) and 40 - 100 keV range (band B: 1 Crab ~ 103 cps ) where available.NOTES: The table is constructed from the
isgri_mosa_res.fits
file - fluxes in the mosaic output are known to be systematically ~10% lower than in the ScW light-curves (see known issues). The systematic noise increases towards the edge of the field of view andNEW
sources < 6σ towards the border of the image may be spurious.
ISGRI Detected Sources 18-40 keV (A) and 40-100 keV (B)Source Name RA dec +/- l b A(cps) +/- sig B(cps) +/- sig ==================== ======== ======= === ======== ======== ====== ===== ===== ====== ===== ===== 1E 1740.7-2942 265.973 -29.743 0.9 359.115 -0.100 11.8 0.31 37.9 7.4 0.28 26.7 GRS 1758-258 270.296 -25.747 1.1 4.502 -1.358 9.9 0.34 29.4 5.6 0.29 19.3 GX 5-1 270.277 -25.081 1.3 5.073 -1.014 8.6 0.37 23.1 0.0 0.00 0.0 Ginga 1826-24 277.372 -23.790 1.4 9.280 -6.088 12.0 0.58 20.8 5.0 0.47 10.5 GX 1+4 263.010 -24.766 1.7 1.920 +4.783 5.9 0.37 16.2 0.0 0.00 0.0 GX 349+2 256.456 -36.423 1.7 349.114 +2.736 9.5 0.59 16.2 0.0 0.00 0.0 IGR J17586-2129 269.633 -21.358 2.3 8.009 +1.351 5.3 0.44 11.9 0.0 0.00 0.0 4U 1722-30 261.887 -30.793 2.4 356.327 +2.304 3.8 0.35 10.9 1.7 0.00 5.8 3A 1822-371 276.442 -37.113 2.7 356.842 -11.292 5.1 0.53 9.6 0.0 0.00 0.0 H 1820-303 275.918 -30.348 2.8 2.800 -7.907 3.9 0.41 9.4 0.0 0.00 0.0 IGR J17511-3057 267.837 -31.015 3.3 358.858 -2.135 2.7 0.35 7.7 1.9 0.30 6.3 SLX 1735-269 264.559 -26.990 3.5 0.794 +2.412 2.4 0.32 7.4 0.0 0.00 0.0 GX 3+1 266.989 -26.562 3.8 2.297 +0.790 2.1 0.32 6.7 0.0 0.00 0.0 GX 9+1 270.461 -20.453 4.5 9.178 +1.129 3.0 0.54 5.6 0.0 0.00 0.0 SLX 1744-299_300 266.742 -30.016 4.1 359.230 -0.812 1.7 0.28 6.1 0.0 0.00 0.0 GX 17+2 273.986 -13.929 4.5 16.517 +1.346 34.8 6.33 5.5 0.0 0.00 0.0 IGR J17541-2252 268.541 -22.826 5.7 6.230 +1.489 1.8 0.42 4.3 0.0 0.00 0.0 4U 1700-377 255.941 -37.952 5.6 347.647 +2.137 2.9 0.00 4.4 0.0 0.00 0.0 OAO 1657-415 255.205 -41.614 5.6 344.403 +0.344 5.2 1.19 4.4 0.0 0.00 0.0 H 1702-429 256.714 -43.016 5.7 343.968 -1.394 6.1 1.41 4.3 0.0 0.00 0.0 XTE J1716-389 258.907 -38.912 6.0 348.257 -0.302 2.4 0.58 4.0 0.0 0.00 0.0 GX 13+1 273.685 -17.143 6.2 13.554 +0.069 4.3 1.11 3.9 0.0 0.00 0.0 1RXS J170849.0-40091 257.259 -40.257 7.1 346.423 -0.068 2.5 0.74 3.4 0.0 0.00 0.0 IGR J17488-3253 267.201 -32.921 5.9 356.943 -2.647 1.4 0.34 4.2 0.0 0.00 0.0 GX 354-0 263.082 -33.779 0.0 354.391 -0.184 1.2 0.00 3.4 0.0 0.00 0.0 XTE J1719-291 259.895 -29.132 0.0 356.730 +4.665 1.2 0.00 3.3 0.0 0.00 0.0 3A 1728-169 262.916 -16.992 6.8 8.478 +9.036 3.2 0.88 3.6 0.0 0.00 0.0 1E 1742.8-2853 266.560 -28.910 0.0 0.093 -0.102 1.0 0.00 3.0 0.0 0.00 0.0JEM-X

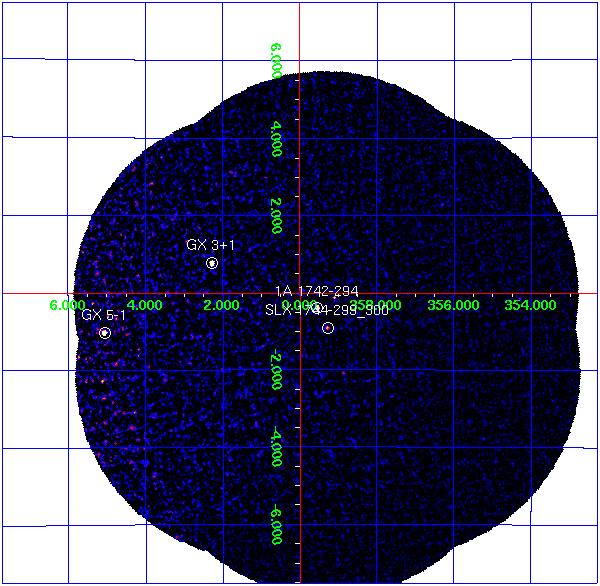

JEM-X significance mosaic images. Left: 3-10 keV. Right: 10-25 keV.Note: Sources labelled were detected in the 3-10 keV image > 5σ and are listed in the table below. Fluxes are extracted at the known catalogue position of the source (i.e. no fitting of the source position is done), with
mosaic_spec
, in two bands: A = 3-10 keV (1 Crab ~ 88 cps); B = 10-25 keV (1 Crab ~ 32 cps).NOTE: The object marked as SLX 1744-299_300 is used to indicate two low-mass x-ray binaries separated by 2.7 arcminutes, SLX 1744-299 and SLX 1744-300; the position for SLX 1744-299 is used, although it can not be ruled out that SLX 1744-300 may dominate the emission some of the time.
JEM-X Detected Sources in 3-10 keV (A) and 10-25 keV (B).Source Name RA dec l b A(cps) +/- B(cps) +/- ==================== ======== ======== ======== ======== ====== ===== ====== ===== 1A 1742-294 266.523 -29.515 359.559 -0.389 6.2 0.39 1.2 0.29 SLX 1744-299_300 266.858 -29.999 359.297 -0.889 2.1 0.36 0.4 0.23 GX 3+1 266.983 -26.564 2.294 +0.794 26.4 0.83 3.1 0.42 GX 5-1 270.284 -25.079 5.077 -1.019 102.8 2.87 10.5 1.23
